High Accuracy automatic Cocoa Powder Auger Filling Machine, auger powder filling machine for 100g-20,China JENPACK price supplier

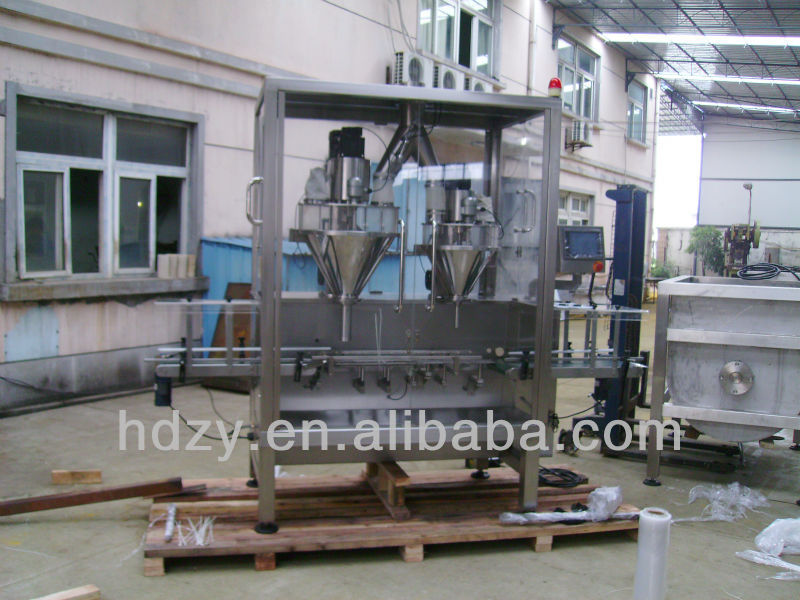

High Accuracy automatic Cocoa Powder Auger Filling Machine, auger powder filling machine for 100g-20

FOB Price:Price can be negotiated

Production Capacity:6 Set/Sets per Month

Update Time:2014-09-20

Contact Supplier

Product Description

1. Siemens PLC and touch screen
2. Dual filler to handle two stages fill with high speed and accuracy optimum.

Descriptive abstract
This series machine is a new-designed that we make it on placing the old Turnplate Feeding on one side. Dual auger filling within one line main-assist fillers and the originated Feeding system can keep the high-precision and take off the tiring cleaning of the turntable. It can do the accurate weighing & filling work, and also could combined with other machines to buildup a whole can-packing production line. This machine could be used in filling Milk powder, albumen powder, condiment, dextrose, rice flour, cocoa powder, solid drink, and so on

Main Technical Date

Model	JN-SL-320
Dosing mode	Dual filler filling with online weighing
Filling Weight	100 - 2000g
Container Size	Φ60-135mm; H 60-260mm
Filling Accuracy	100-500g, ≤±1g; ≥500g,≤±2g
Filling Speed	Above 50 cans/min(#502),Above 60 cans/min(#300 ~ #401)
Power Supply	3P AC208-415V 50/60Hz
Total Power	3.4kw
Total Weight	450kg
Air Supply	6kg /cm ² 0.2cbm/min
Overall Dimension	2650×1040×2300mm
Hopper Volume	50L (Main) 35L (Assist)

Main features

One line dual fillers, Main & Assist filling to keep work in high-precision.
Can-up and horizontal transmitting is controlled by servo and pneumatic system, be more accurate, more speed.
Servo motor and servo driver control the screw, keep stable and accurate
Stainless steel structure, Split hopper with polishing inner-out make it to cleaned easily.
PLC & touch screen make it be easy of operation.
Fast-respond weighing system make the strongpoint to real
The handwheel make the exchange of different filings to be easily.
Dust-collecting cover meet the pipeline and protect environment to pollution.
Horizontal straight design make the machine in little area
Settled screw setup make no metal pollution in producing
Process: can-into → can-up → vibration → filling → vibration → vibration → weighing & tracing → reinforce → weight checking → Can-out
With whole system central control system.

Type:	Other	Condition:	New	Application:	Food,Medical,Chemical
Packaging Type:	cans,bottle,tins	Packaging Material:	Plastic,Paper,Glass	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	3P AC208-415V 50/60Hz	Power:	3.4w
Place of Origin:	Shanghai China (Mainland)	Brand Name:	JENPACK	Model Number:	JN-SL-320
Weight:	450kg	Dimension(LWH):	265010402300mm	Certification:	CE
After-sales Service Provided:	Engineers available to service machinery overseas	powder filling machine:	Powder packaging machine
