High Accuracy Semi-automatic Cocoa Powder Auger Filling Machine,China JENPACK price supplier

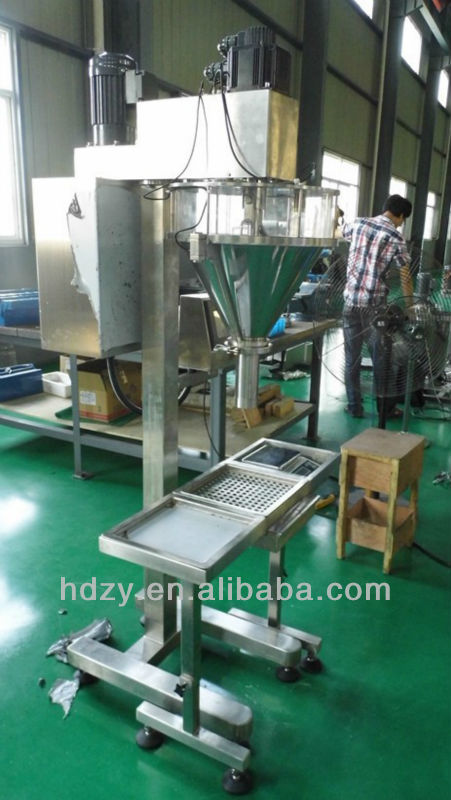

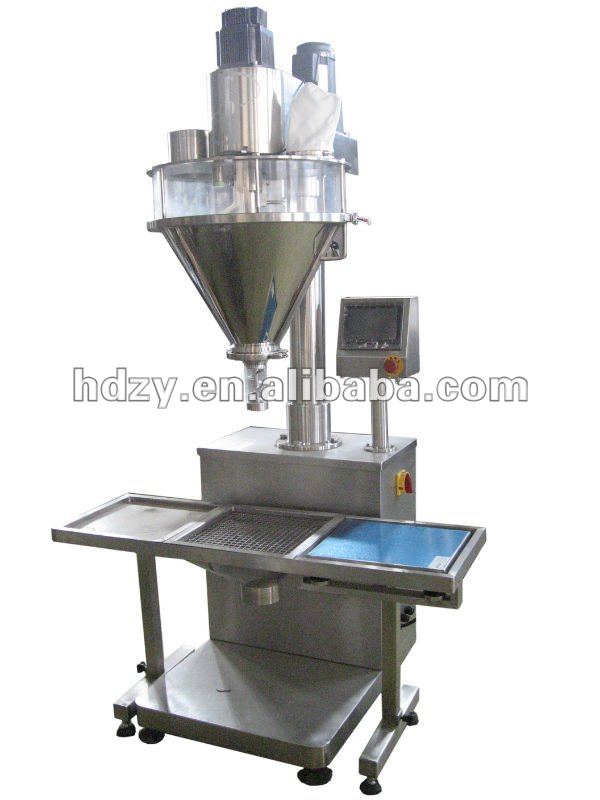

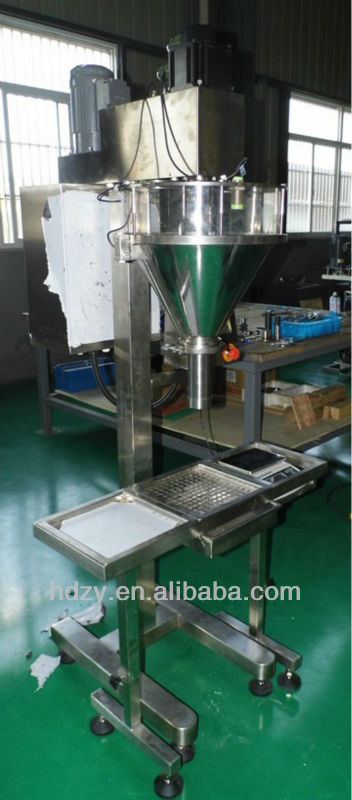

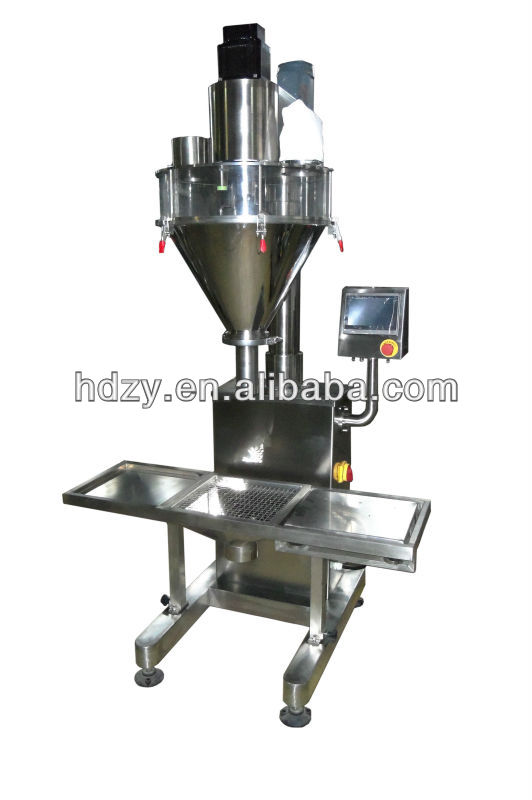

High Accuracy Semi-automatic Cocoa Powder Auger Filling Machine

FOB Price:Price can be negotiated

Production Capacity:20 Set/Sets per Month

Update Time:2022-03-15

Contact Supplier

Product Description

1: Fill by weight
2: Semi Automatic
3:PLC & Touch Screen

Descriptive abstract

This series auger Filling Machine suit for powder and small granular products filling into pre-made containers, widely used in the talc powder ,spice ,coffee powder ,wheat flour , starch powder , Pharmaceuticals ,agriculture pesticide ,dyestuff and so on

Main Technical Date

Model	JN-FB-22	JN-FB-23
Control system	PLC&Touch Screen	PLC&Touch Screen
Hopper	50L Quick disconnecting hopper	50L split hopper
Dosing range	10-5000g	10-5000g
Container type	Pre-made containers such as bag , tin, jar ,bottle etc ,no limit
Packing accuracy	≤100g≤±2%;100-500g≤±1%, ≥ 500g≤±0.5%
Filling speed	40-120times/min (Actual depend on products weight, character )
Power Supply	3P AC 208-415V 50/60HZ	3P AC 208-415V 50/60HZ
Total Power	1.4Kw	1.4Kw
Total weight	260Kgs	280kgs
Overall Dimension	11409702030mm	11409702200mm

Main features

Servo motor and driver control screw

PLC, touch screen system

Weight feedback function

Stainless steel structure

Inline weight system as optional

Type:	Filling Machine	Condition:	New	Application:	Food,Beverage,Medical,Chemical
Packaging Type:	Cans,Bottles,Bags,Case	Packaging Material:	Plastic,Paper,Metal,Glass,Wood	Automatic Grade:	Semi-Automatic
Driven Type:	Electric	Voltage:	3P AC208-415V	Power:	1.4KW
Place of Origin:	Shanghai China (Mainland)	Brand Name:	JENPACK	Model Number:	JN-FB-22
Dimension(LWH):	11409702030mm	Weight:	260KG	Certification:	CE
After-sales Service Provided:	Engineers available to service machinery overseas	control system:	PLC & Touch Screen	Hopper:	25L disconnect hopper
Filling speed:	40-120times/min (Actual depend on products weight, character )

Company Profile

Name: Shanghai Hongde Zhiye Packaging Technology Co., Ltd.

Main Products: Semi-automatic Auger Filling Machine,Automatic Back Sealing Packing Machine for powder,Vertical automatic Form Filling Seal Machine,powder packing machine,box machine

Business Type: Trading Company

Total Employees: 11 - 50 People

Established Year: 1999

Main Markets: Southern Europe, Northern Europe, Central America, Western Europe, Mid East

Address: 982 of Thomas town,lane 900 Sanxing road,Songjiang district Shanghai,China

Our company, established in 1999, is specialized in designing packing lines and supplying packaging machines according to different material characters to meet different packing requirements. Our initial offering was an economical and highly reliable machine for powder and granular material and fluid material filling/packaging, featuring the simplified and non-sense design that can accurately dispense products with the minimum setup, maintenance and operator intervention.

We have rich experience in different forms of material packaging, whether your products are free flow or non flow, in fine powder form or granular form, liquid or cream. From pre-made containers to bags forming together with filling, small size or big size, you can find all suitable machines here. Our main products are listed as follows:

Auger filling machines for powder and small granular filling
Line weighers for granular material filling
Liquid filling machines
VFFS for different types of bag making when filling
Label machines for self adhesive labels and sleeve labels
Capping machines for Press caps and screw caps
Feeding machines, such as screw conveyors, vacuum feeders and baffle conveyors
Other equipment, such as blender mixers, heat sealers, sewing machines, carton machines, stock hoppers, etc. for the whole packaging lines

You can get high quality packing machines and the first-class sales services here with affordable prices. We promise, we do. The only thing that you should do is just give chances to us and then you will find the difference.
