Food online > Products > Food Processing Machinery >

High Capacity Vegetable Mesh Belt Dryer,China GUOXIN price supplier

High Capacity Vegetable Mesh Belt Dryer

FOB Price:Price can be negotiated

Production Capacity:15 Set/Sets per Month

Payment Terms: US $4,500 - 12,000 / Set

Update Time:2014-09-19

Contact Supplier

Product Description

vegetable mesh belt Dryer:
1.Working temperature: adjustable;
2.No pullution with high quality
3.Single or multi-layers.

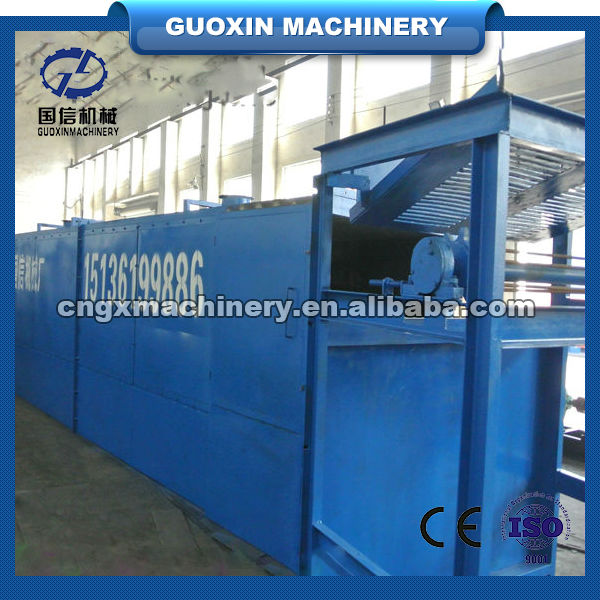

High Capacity Vegetable Mesh Belt Dryer

Working priciple of vegetable mesh belt dryer:

Materials are uniformoy put on the mesh-belt by the feeder. The mesh-belt uses generally 12-60 mesh stainless steel wire net and it is drawn and moved inside the dryer by a transmission device.

The mesh belt is controlled through an adjustment valve. The hot air passes through the mesh-belt covered with the material from the top to the bottom of mesh belt dryer or from the bottom to the top and this will complete the heat and mass transfer process.

The final prodructs after the mesh belt dryer will fall into the material collector continuously. The top and low circulation units can be freely equipped according to the users' demand. The unit number can be selected according to the demand.

Features of vegetable mesh belt dryer:

1. Shape: it mainly through the mesh conveyou to make the charcoal briquette forward, so it can keep the raw material shape that won't damage.

2. No fire risk: accurate control of temperature guarantee the safe of your goods. Also the temperature inside the mesh belt dryer is adjusted.

3. Various heat sources: coal, wood, electric can be used for energy.

4. Alarm device: each machine is equipped with an alarm in case of accident.

Technical parameters of vegetable mesh belt dryer:

Type	GX-1.2-8	GX-1.2-10	GX-1.6-8	GX-1.6-10	GX-2-8	GX-2-10
Quantity of unit	4	5	4	5	4	5
Width of belt(m)	1.2		1.6		2
Length of drying section(m)	8	10	8	10	8	10
Thickness of spread raw material(mm)	≤ 60
Temperature of operation(° c)	50~140
Pressure of steam(MPa)	0.2~0.8
Consumption of steam(kg/h)	120-300	150-375	150-375	170-470	180-500	225-600
Drying time(h)	0.2-1.2	0.25-1.5	0.2-1.2	0.25-1.5	0.2-1.2	0.25-1.5
Drying strength(kg/h)	60-160	80-220	75-220	95-250	100-260	120-300
Total power of equipment(kw)	11.4	13.6	11.4	13.6	14.7	15.8
*Overall dimensions(LWH) (m)*	*9.561.492.3*	*11.561.492.3*	*9.561.92.4*	*11.561.92.4*	*9.562.322.5*	*11.562.322.5*
Weight(kg)	4500	5600	5300	6400	6200	7500

If you have any questions, please feel free to contact me. Your prompt reply will be highly appreciated.

Condition:	New	Place of Origin:	Henan China (Mainland)	Brand Name:	GUOXIN
Model Number:	GX-1.6-8	Type:	Dryer	Voltage:	380V/50HZ
Power(W):	11.4KW	Weight:	5300kg	Dimension(LWH):	9.561.92.4m
Certification:	ISO CE	Warranty:	1 year	After-sales Service Provided:	Engineers available to service machinery overseas
Quantity of unit:	4	Width of belt:	1.6m	Length of drying section:	8m
Thickness of spread raw material:	≤60mm	Temperature of operation:	50-140°c	Pressure of steam:	0.2-0.8Mpa
Consumption of steam:	150-375kg/h	Drying time:	0.2-1.2h	Drying strength:	75-220kg/h
Color:	white, red, blue or as customers' requirement
