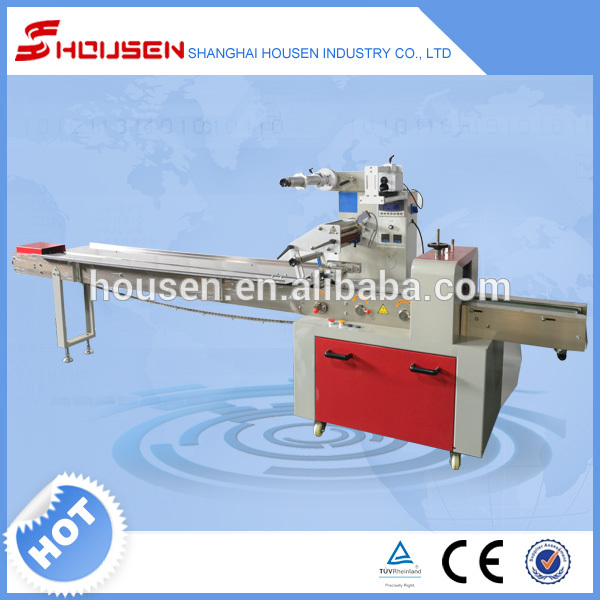

chocolate bar packaging machine
1.CE Certificate
2.Software operation
3.Steady performance
4.35-180bags/min
Application of chocolate bar packaging machine
Suitable for packing pillow-type products such as tableware, medicine, chocolate, noodles, bread, egg rolls, ice cream, napkin and soap, Pregnancy Test .
More bag style for you referance
Feature
1.Manufactured in a state of the art production facility.
2.Economical machine design suitable to work globally.
3.PID digital temperature controller for perfect sealing.
4.Main Product contact parts are made up of Stainless Steel.
5.Easy to operate and maintain; Sturdy design to ensure long life and trouble-free operation.
6.Extensive check for quality and performance before dispatch to ensure 100 % customers satisfaction.
7.Very well accepted by customers from more than 100 Countries globally.
8.Prompt and accurate delivery with excellent logistics support.
9.Best customer care and after sales services.
Parameter
| Type | HSH-120 | HSH-320 | HSH-450 |
| Film width | 90-240mm | 100-420mm | 150-500mm |
| Packing length | 65-160mm | 80-200mm | 100-300mm |
| Packing width | 35-100mm | 40-150mm | 30-170mm |
| Packing height | 5-35mm | 5-50mm | 5-80mm |
| Packing speed | 35-180bags/min | 35-180bags/min | 35-150bags/min |
| Packing material | OPP/CPP,PT/PE,KOP/CPP,ALU-FOIL, etc | ||
| Dimension( mm ) | (L)4000*(W)920*(H)1600 | (L)4000*(W)1020*(H)1600 | (L)4000*(W)1020*(H)1600 |
| Total power | 3.4kw(220v) | 3.4kw(220v) | 4.8kw(220v) |
| Overall weight | 550kg | 600kg | 700kg |
The working process
Automatic detection — automatic filling—automatic bagging—automatic sealing—automatic cutting—automatic counting.
Main machine parts
Optional
| 1. Date printer 2. Feeding device 3. Horizontal seal punching device 4. Nitrogen feeding device 5. Chute deoxidizer |
Free spare tool
Packing Process
Company detail
More types machine, please click here!
| Product Line Name | Production Line Capacity | Actual Units Produced(Previous Year) |
|---|---|---|
| Packing Machine | 40 Sets / Month | 350 Sets |
| Market | Revenue(Previous Year) |
Total Revenue (%) |
|---|---|---|
| North America | confidential | 1.0 |
| South America | confidential | 10.0 |
| Eastern Europe | confidential | 15.0 |
| Southeast Asia | confidential | 5.0 |
| Africa | confidential | 10.0 |
| Mid East | confidential | 3.0 |
| Central America | confidential | 10.0 |
| South Asia | confidential | 10.0 |
| Domestic Market | confidential | 36.0 |
| Machine Name | Brand & Model No. | Quantity | Number of Year(s)Used | Condition |
|---|---|---|---|---|
| Vernier Caliper | Shanghai | 3 | 3.0 | Acceptable |
| Outside Micrometer | Guilin, 0.01mm | 2 | 3.0 | Acceptable |
| Micrometer Caliper | 00000315 | 3 | 2.0 | Acceptable |
|
Assembly |
Performance Test |
Packing |
| Certification Name | Certified By | Certificate No. | Product Name & Model No. | Available Date--Expired Date | |
|---|---|---|---|---|---|
|
CE |
Ceprom Product Certification Body | 175-CI-32012 | Full-Automatic Packing Machine & HSH-120, HSH-320, HSH-450, HSH-600, HSH-2000, HSD-220D, HSD-420D, HSD-520D, HSD-620D, HSD-720D, HSD-220F, HSD-420F, HSD-520F, HSD-620F, HSD-720F, HSD-420S, HSD-220Z, HSU-160F, HSU-160K, HSU-160Y | 2012/01/11 --- 2049/12/31 | |
| Type: |
Other
|
Condition: |
New
|
Application: |
wrapping
|
| Packaging Type: |
Bags,Film,Pouch
|
Packaging Material: |
Plastic
|
Automatic Grade: |
Automatic
|
| Driven Type: |
Electric
|
Voltage: |
220V
|
Power: |
3.4kw
|
| Place of Origin: |
Shanghai China (Mainland)
|
Brand Name: |
HOUSEN
|
Model Number: |
HSH-320
|
| Weight: |
600kg
|
Dimension(L*W*H): |
(L)4000*(W)1020*(H)1600
|
Certification: |
CE
|
| After-sales Service Provided: |
Engineers available to service machinery overseas
|
Film width: |
100-420mm
|
Packing length: |
80-200mm
|
| Packing width: |
40-150mm
|
Packing height: |
5-50mm
|
Packing speed: |
35-180bags/min
|
| Packing material: |
OPP/CPP,PT/PE,KOP/CPP,ALU-FOIL, etc
|
Total power: |
3.4kw(220v)
|
Spare parts: |
Blade, heating tube, etc
|
| Percentage of pass: |
96%
|
