circular COCOA POWDER separator
1.Large capacity
2.Durable screen deck
3.Dependable eccentric type system
4.Easy maintenance
High efficiency reasonable price circular cocoa powder separator
--- Product introduction
High efficiency reasonable price circular cocoa powder separator is a new and efficient vibrating screen with a large number of layers, which is fully optimized designed by combining the introduced advanced technology in Germany, Japan and other countries with the actual operating environment.
High efficiency reasonable price circular cocoa powder separator is equipped with double vibrating motors, which rotate reversely and synchronously . Thus, the excited force geneated by the eccentric block is united in the direction perpendicular to the motor axis while counteracted in the direction parallel to the motor axis, so that the movement trajectory is circular.
--- Working principle
There is an angle of inclination between two screen decks. Under the function of resultant force generated by exciter force and gravity of materials, these materials are throwed up, leap forward straight ahead along the screen deck, through which the purpose of filter and classification is achieved.
---Features
1. Shaking Screen Machine uses eccentric block to produce strong exciting force.
2. The Shaking Screen Machine 's crossbeam and the main body of the screen are connected with high strength screw bolts. So they have the features of simple structure and easy maintenance.
3. Shaking Screen Machine adopts tire clutch with capability of flexible connection and stable operation.
4. Shaking Screen Machine adopts the structure of small amplitude, high frequency, large obliquity to make the screen hold the capability of high efficiency, large handling capacity, long life span, low consumption, little noise.
--- Structure
High efficiency reasonable price circular cocoa powder separator consists of vibration source, screen body, screen mesh, damping device and a bottom supporter. The screen's side plant is made of high-quality steel. The side plates and beams, the exciter base are connected by high strength bolts or ring groove rivet. All of these bring us reasonable structure and a durable machine.
--- Application
High efficiency reasonable price circular cocoa powder separator is widely used in the dry material grading operations in mining, building materials, stone,transportation, energy, chemical and other industries.
technical parameters
-

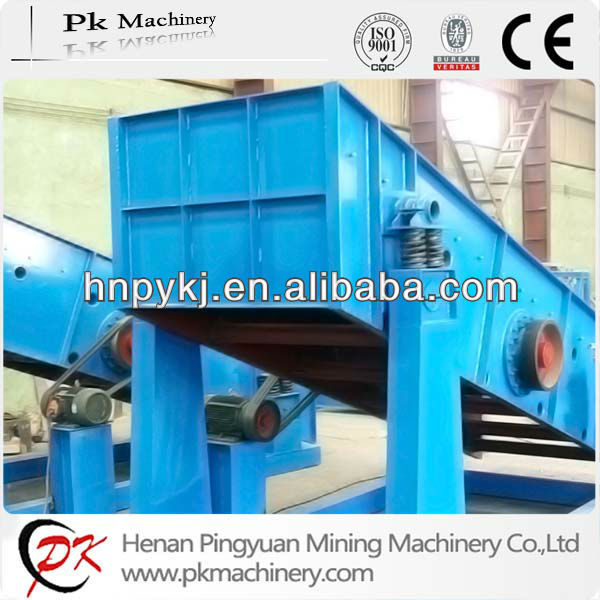

--- More pictures of circular cocoa powder separator

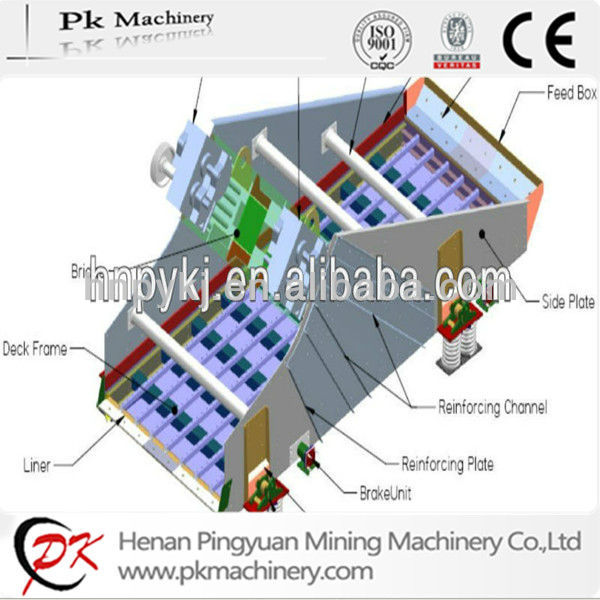

Structure
Parts of the machine

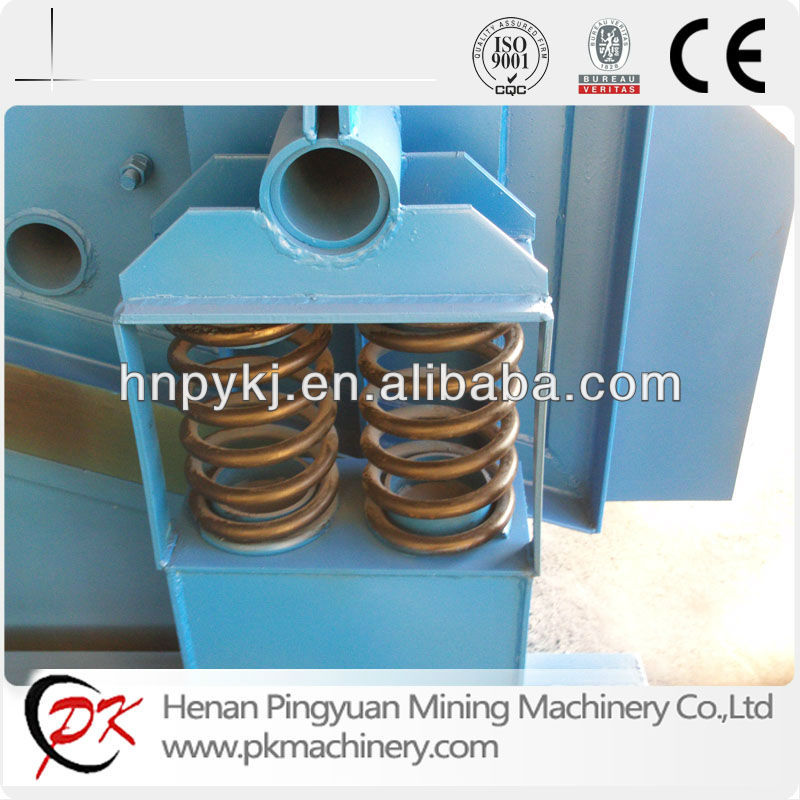

Damping spring

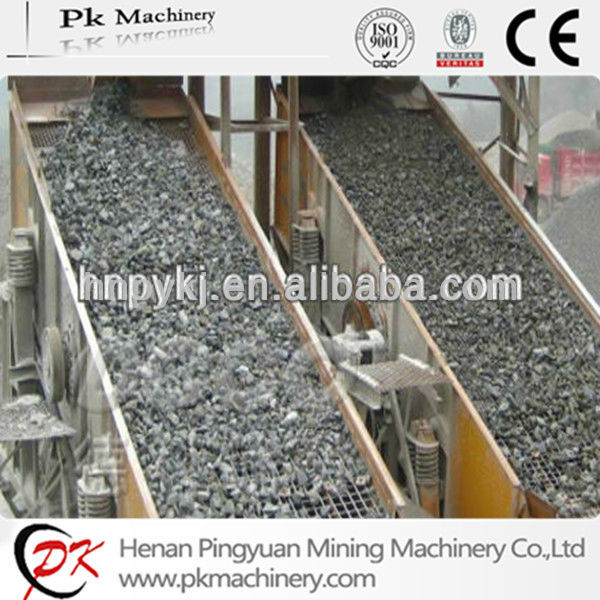

construction site
---About us
Henan Pingyuan Mining Machinery Co., Ltd , ( formerly Xinxiang Mining Device Factory) is a innovative enterprises that specializes in various mining machinery production such as screening and conveying equipment, vibrating feeder, bucket elevator, screw Conveyor etc., forming R&D, production and sale into an integral system.
Our Certificates
office picture
Condition: |
New
|
Type: |
Circular
|
Application: |
Ore
|
Place of Origin: |
Henan China (Mainland)
|
Brand Name: |
PK
|
Model Number: |
YA/YK
|
Voltage: |
220V,380V,or other
|
Power(W): |
as per the model you choose
|
Dimension(L*W*H): |
as per the model you choose
|
Weight: |
about 12t
|
Certification: |
CE, ISO9001:2008, SGS
|
Warranty: |
12 months
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
Installation: |
Offer technical guide
|
Damping Device: |
High-strength spring
|
size of the material: |
large
|
Feeding size: |
<200 (mm)
|
Double amplitude: |
8-11 (mm)
|
Processing capacity: |
70-250 t/h
|
Dynamic load: |
3900
|
Screen surface area: |
4.3 (m2)
|
Mesh size: |
5-50 (mm)
|
Product name: |
High efficiency reasonable price circular cocoa powder separator
|
