1.high efficiency.
2.easy to operate.
3.compact structure.
4.low comsumption and noise.
5.long serive life.

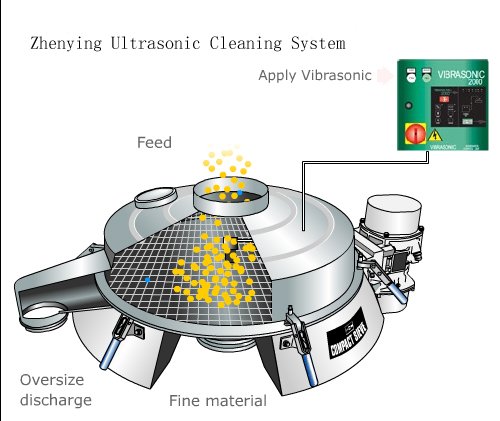

This sieving machine adopts advanced intelligent vibrating ultrasonic controller and has solved many problems caused by single frequency, truly realizing the reasonable combination of ultrasonic function and vibration sieve.
Applied field
As to the functional feature, it has reached the highest international level. It has prominent advantages in solving materials sieving problems such as high absorption, easy agglomeration, high static, high precision degree, light weight etc.
1 This kind machine has the function of being able to effectively control the sieving granularity scale, which can realize the high precision sieving to achieve the best sieving effect.
2 It can be used with single layer or multilayer. A set of intelligent ultrasonic generator can be used with three controllers at the same time.
3 Self-cleaning function; 0~ 500m sieving, no-blocking sieving mesh, stable sieving efficiency
4 Prominent advantages in solving sieving difficulties such as high adsorption, easy clustering, high static, high precision, high density, light proportion, etc.
5 Keep processed materials feature stable.
6 The quantity of processed materials can be enhanced 1-10 times compared with those processed by vibrating screen machines without ultrasonic function.
Model |
Power (Kw) |
Diameter (mm) |
Dimension L×W×H (MM)
|
Layer |
ZYC-400-1S |
0.18 |
320mm |
580×580×560 |
1 |
ZYC-600-1S |
0.55 |
550 mm |
800×800×680 |
1 |
ZYC-800-1S |
0.75 |
750mm |
900×900×780 |
1 |
ZYC-1000-1S |
1.5 |
950mm |
1160×1160×880 |
1 |
ZYC-1200-1S |
1.75 |
1150mm |
1360×1360×980 |
1 |
ZYC-1500-1S |
2.2 |
1450mm |
1850×1850×1130 |
1 |
ZYC-1800-1S |
2.2 |
1750mm |
2200×2200×1360 |
1 |
Machine Type: |
quarz powder sieving
|
Place of Origin: |
Henan China (Mainland)
|
Brand Name: |
Zhenying
|
Model Number: |
ZYC
|
Certification: |
CE
|
colour: |
gray or others
|
materials processed: |
herbs powder"> herbs powder
|
materials: |
SUS304/316l, carbon steel
|
cleaning system: |
ultrasound
|
layers: |
optional
|
voltage: |
optional
|
current: |
AC
|
structure: |
compact
|
Certificate: |
ISO & CE
|
warranty: |
1 year
|
