High Quality Dog Chewing Food Making Machine Process Line

FOB Price:Price can be negotiated

Production Capacity:10 Piece/Pieces per Month

Update Time:2023-06-17

Contact Supplier

Product Description

1. High antomation and less human work
2. Auto pre-conditioning machine
3. Pre-cleaning system
4.Turkey project

Dog food machine uses foodstuff, meat powder, fishmeal, and beans etc. as raw materials to produce pet food and fish and bird feed with new shape, unique taste, rich nutrition and exquisite structure. The products are cooked and sterilized with high degree and high pressure of the extruder, so it is easy to be absorbed and popular to the pet market.

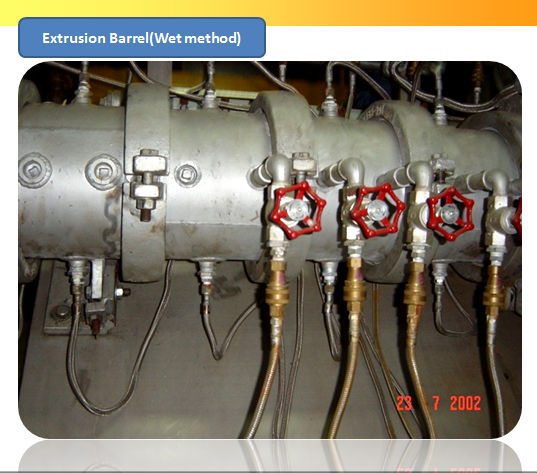

1. Alloy (38CrMoAL) screw made by nitriding process, high strength and wear-resting. Self-cleaning ability, no need to discharge or clean the barrel and screw when roasting or replacing of materials.

2. Adopting speed-adjusted converter on feeding system, extrusion system and cutting system. Food grade stainless steel twin screw feeding machine, stable materials feeding in the whole food process.
3. Gearbox with automatic lubrication function, extending gear life.
4. World famous brand Siemens main motor, guaranteeing good quality
5. Increased radiator on driving part for forced cooling effect, ensuring extruder operates safely.
6. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.

Feature:

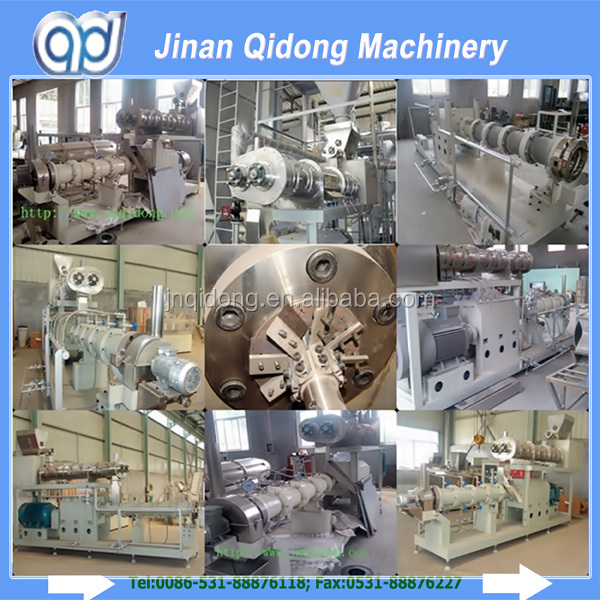

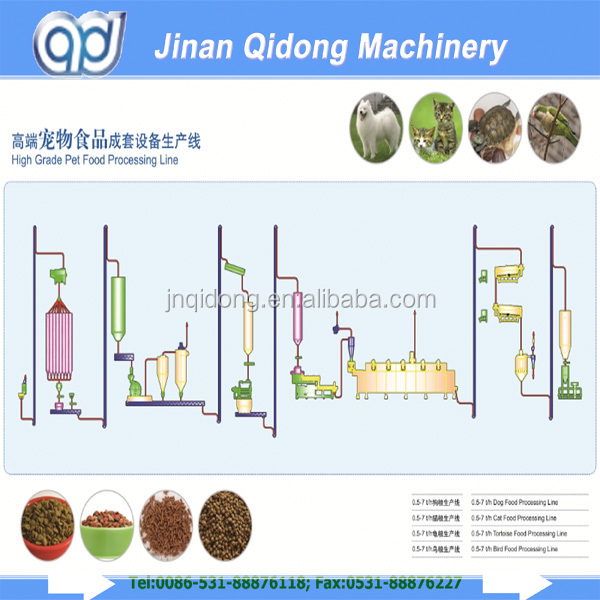

-Extruder is mainly composed of feeding, pre-conditioning, extrusion and cutting system
-Main engine adopts inverter to adjust speed of screw according to changing of formula
-Wear sleeve and screw sleev are made of high wear-resistant alloy steel, to reduce abrasion and prolong service life
-Twin screws adopt building block system (BBS) to be adjustable for different technollogy
-Doule-shaft pre-conditioner makes excellent result of mixing and conditioning, increasing capacity of extruder 10-15%
-Diameter of feed Φ1.2-Φ12 can satisfy feed production for dog, cat, tortoise, bird, seafish, shrimp and pet fish ect.

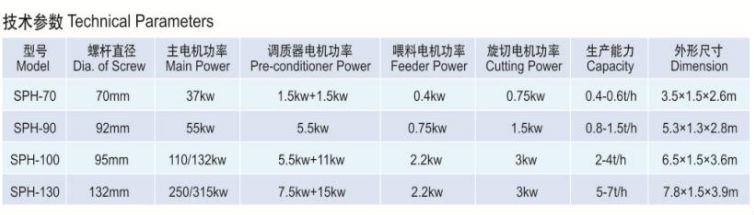

Model	Installed power	Power consumption	Main power	Capacity (dia:4-10mm)	Installed size
SPH-65 (Dry extrusion)	35KW	22-30KW	22KW	100-200KG/H	152.54M
SPH-70 (Dry extrusion)	35kw	22-30KW	22KW	150-300KG/H	162.54M
SPH-95 (Wet extrusion)	200KW	128-150KW	110KW	2000-3000KG/H	432.56M

Packing: Simple packing stretch film (Based on the customers' need adopt the wooden case or wooden pellets, etc.)

Transportation: According to the contract, our company could in charge for the shipment or you prepaid. We will choose the most timely and safe way transportation.

Pre-sale services:
1> Provide the free consultation of the equipment

2> Provide the standard device and the flow chart

3> According to the clients’ special requirement, offering the reasonable plan and free design helping to select the equipment.

4> Welcome to visit our factory or the domestic clients’ factory.

Services during the sales:

1> Help client design the factory and offering professional advice, free engineering drawing for the

factory layout.

2> Inspect the machine before leaving the factory.

3> Oversea install and debug the equipment.

4> Train the first-line operator.

5> Provide the basic formula

After sale services:
1> 24 hours online service

2> Engineers available to service machinery overseas

3> Provide technical exchanging

Customers:

Iraq MHA Company, Iran LLT Company,Brazil LYS Company,Italy A &T Company, Ukraine LM Company ,Israel, Venezuela MIK Company,Sri Lanka A&G Company

……………….

FAQ:

1. What kind of feed do you want to produce? Do you have production formula? If have,

would you mind to tell us the main ingredients in the formula? The percentage of each part?

2. The capacity you required?

3. Do you have the working plant? The construction and the area?

4. Do you need the whole processing line or just stand-alone device? Are you the new comer

in this field or have the experience for using the extruder?

5. Do you have any requirement for the automatic proportion system and manual system?

6. Do you have a boiler in your site?

Condition:	New	Place of Origin:	Shandong China (Mainland)	Brand Name:	QD
Model Number:	SPH-130	Application:	Dog	Power(W):	250/315KW
Warranty:	1years	After-sales Service Provided:	Engineers available to service machinery overseas	Puffing method:	Wet
Capacity:	5-7T/H	Material:	stainless steel, ordinary steel	Colour:	customizable
