High Speed Bar Chocolates Wraping Machines,China KCX price supplier

High Speed Bar Chocolates Wraping Machines

FOB Price:Price can be negotiated

Production Capacity:5 Unit/Units per Week 8

Payment Terms: US $7,660 - 8,360 / Unit

Update Time:2014-09-28

Contact Supplier

Product Description

chocolates Packaging Machines
1.Dual frequency converter
2.Human-computer interface
3.40-230 bags/min
4.One year warranty

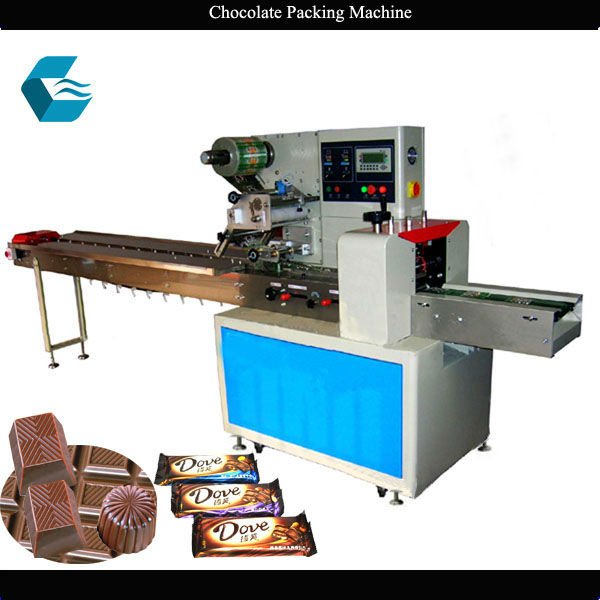

High Speed Bar Chocolates Wraping Machines

♦Technical Parameter

Type	KCX-250B	KCX-250D
Film width	Max 250mm
Bag length	65-190mm or 120-280 mm	90-220mm or 150-330mm
Bag width	30-110mm
Product height	Max 40mm	Max 55mm
Film roll diameter	Max 320mm
Packaging rate	40-230 bags/min
Power	220V,50/60HZ,2.4KW
Machine size	(L)3770×(W)670×(H)1450mm
Machine weight	About 700kg
Remarks	With air filling machine and Date printer

♦Application Range

chocolate bar Wrapping Machinea KCX250 is suitable for packing cookies , chocolate , cake , instant noodles , carton , pallet , medice , daily use , industrial parts and other goods with regular shape.

♦ Unique Features

1. Dual frequency converter control, bag length can be set and cut in one step, which saves time and film.

2. Human-computer interface features, parameters can be set easily and quickly.

3. Self failure diagnosis , failure can be displayed clearly.

4. High sensitivity photoelectric eye color tracing , numerical input of cutting and sealing position for extra accuracy.

5. Independent temperature PID control , more suitable for different packing materials.

6. Positioned stop function , without sticking knife and wasting film.

7. Simple driving system , reliable working, convenient maintenance.

8. All control is realized through software, easy for function adjusting and technical upgrade .

♦Waiting for Your Business Cooperation!

Condition:	New	Application:	Food,Food with regular shape	Packaging Type:	Bags
Packaging Material:	Plastic	Automatic Grade:	Automatic	Driven Type:	Electric
Power:	2.4kW	Place of Origin:	Shandong China (Mainland)	Brand Name:	KCX
Model Number:	KCX-250	Feature:	PLC control with Servo system	Max Film Width:	250mm
Packing Speed:	40-230 bags/min	Bag Width:	30-110mm	Weight:	700kg
Outside Dimension:	L37706701450	Machine Material:	Stainless Steel	Packing Material:	PE/PP/BOPP/POF/PE/PVC
Packing Type:	Pillow Type	Type:	Packing Machine

Company Profile

Name: Qingdao Kunchengxiang Machine Factory

Main Products: Packing Machine,chocolate wrapping machine,candy packaging machine,soap packing machine,food packing machine

Business Type: Manufacturer, Trading Company

Total Employees: 301 - 500 People

Established Year: 1999

Main Markets: Eastern Asia, Mid East, Southeast Asia, South America, North America

Address: No.1205,Block B, the Junction of Hanghai and Xinghua Road

Qingdao Kunchengxiang Machine Factory is specialized in developing and producing packing machines and forging pressing machines.

We have a strong technical team and an experienced production and QC team. We comply with ISO2001:9000 quality management system standard and some machines have gotten CE certificate. Our packing machines have occupied 80% of domestic market share and have been exported to over 20 countries and regions, such as Europe, America, the Middle East and Southeast Asia. Our forging press machines have been exported to India, Vietnam, Bangladesh and Congo and gained good feedback from our customers.

If you are interested in any of our products, or hope to place a customized order, please contact us. We will do our best to meet your needs and guarantee stable and timely supply, credible quality and sincere and professional service. more
