1.Automatic Chocolate bar packing machine with CE
2.Adjustable bag size and packing speed
3.Automatic counting
Product Advantage of Automatic Chocolate bar packing machine
• Quick loading, self-centering, reel holder.
• Adjustable bag former
• Fin seal folding to the left or to the right.
• A servo Motor, controlled by an AC inverter.
• Continuous variable speed by means of a potentiometer.

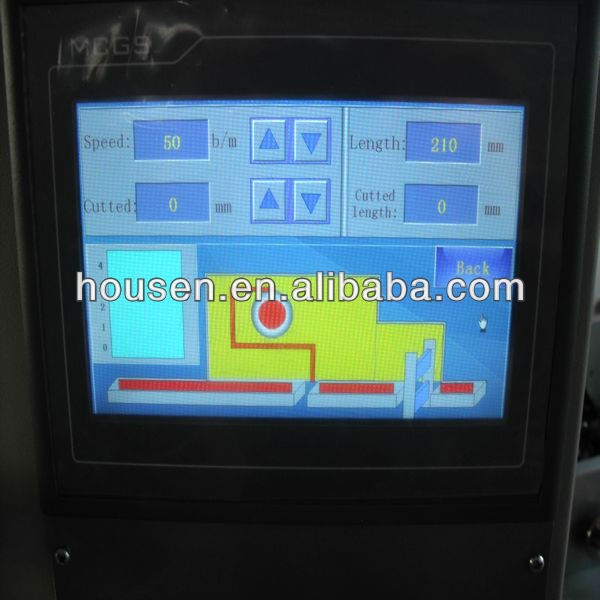

• Controller Panel (ENGLISH ).
• Digital PID temperature controllers.
• Jaws drive torque limiter with safety switch and reset hand wheel.
• Discharge belted conveyor.
• Polycarbonate safety guards with interlock safety switches
Product details:
1. The Bag Length is adjustable through the Operate Interface .
2. The Bag Width is adjustable by means of the Bag former
3.Working principle:
Machine Specification of Automatic Chocolate bar packing machine
| Model | HSH-120 | HSH-320 | HSH-450 |
| Max film width | 240mm | 300mm | 120mm |
| Bag making Length | 60-160mm | 80-200mm | 100-300mm |
| Bag making Width | 30-100mm | 40-150mm | 30-170mm |
| Bag making Height | 5-35mm | 5-50mm | 5-80mm |
| Packing speed | 30-210bags/min | 30-180bags/min | |
| Power | 220V 50Hz 3.4Kw | 220V 50Hz 4.2Kw | |
| Dimension | 4000*920*1600mm | 4000*1020*160mm | 4000*1020*1600mm |
| Weight | 450Kg | 450Kg | 500Kg |
Optional : Date coder printer
Air compressor
Punch Hole System & Gusset device
Nitrogen making machine
Basic Service:
1.technical support
2.loading inform
3.video for debugging
4.customers' requirest is welcome
Verified Information:
| Product Line Name | Production Line Capacity | Actual Units Produced(Previous Year) |
|---|---|---|
| Packing Machine | 40 Sets / Month | 350 Sets |
| Market | Revenue(Previous Year) |
Total Revenue (%) |
|---|---|---|
| North America | confidential | 1.0 |
| South America | confidential | 10.0 |
| Eastern Europe | confidential | 15.0 |
| Southeast Asia | confidential | 5.0 |
| Africa | confidential | 10.0 |
| Mid East | confidential | 3.0 |
| Central America | confidential | 10.0 |
| South Asia | confidential | 10.0 |
| Domestic Market | confidential | 36.0 |
| Machine Name | Brand & Model No. | Quantity | Number of Year(s)Used | Condition |
|---|---|---|---|---|
| Vernier Caliper | Shanghai | 3 | 3.0 | Acceptable |
| Outside Micrometer | Guilin, 0.01mm | 2 | 3.0 | Acceptable |
| Micrometer Caliper | 00000315 | 3 | 2.0 | Acceptable |
| Certification Name | Certified By | Certificate No. | Product Name & Model No. | Available Date--Expired Date | ||||
|---|---|---|---|---|---|---|---|---|
|
CE |
Ceprom Product Certification Body | 175-CI-32012 | Full-Automatic Packing Machine & HSH-120, HSH-320, HSH-450, HSH-600, HSH-2000, HSD-220D, HSD-420D, HSD-520D, HSD-620D, HSD-720D, HSD-220F, HSD-420F, HSD-520F, HSD-620F, HSD-720F, HSD-420S, HSD-220Z, HSU-160F, HSU-160K, HSU-160Y | 2012/01/11 --- 2049/12 | ||||
| Type: |
Packaging Machine"> Multi-Function Packaging Machine
|
Condition: |
New
|
Function: |
Filling,Wrapping,Sealing,Printing
|
| Application: |
Food
|
Packaging Type: |
Bags,Film,bags
|
Packaging Material: |
Plastic
|
| Automatic Grade: |
Automatic
|
Driven Type: |
Electric
|
Voltage: |
220v
|
| Power: |
4.8KW 220v
|
Place of Origin: |
Shanghai China (Mainland)
|
Brand Name: |
HOUSEN
|
| Model Number: |
Automatic Chocolate bar packing machine HSH-450
|
Certification: |
CE
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
| Filim width range: |
150-500mm
|
Bag-making length: |
100-300mm
|
Bag-making width: |
30-170mm
|
| Bag-making height: |
5-80mm
|
Packing speed: |
35-235bags/min
|
Packing material: |
PVC.PE/PT .OPP/CPP
|
| Machine material: |
aluminium alloy carbon steel .stainless steel
|
Machine parts: |
blade .heating tube.PLC.Touch screem
|
Dimension: |
(L)4000*(W)1020(H)1600mm
|
| Weight: |
450kg
|
