High-speed shrink wrapper,China UPACK price supplier

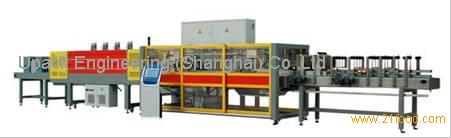

High-speed shrink wrapper

FOB Price:Price can be negotiated

Production Capacity:100%

Payment Terms: TT;L/C

Update Time:2013-10-18

Contact Supplier

Product Description

Beautiful figure, novel configuration, electron induction feeding film with stable and smooth transfer speed, replacing film fleetly.
Unique film unwrap mechanism and constant tension film Conveyor are adopted, featuring instantaneous film cutting, automatic film connecting and wrapping and higher strength after shrinking packing.
During the product forward conveying process.it can automatically group the product in to package, so as save time and enhance packing efficiency.
Equipped with B&R servo motor control system, bottle feeding, film cutting and film wrapping are accurate, synchronous, stable and reliable.
The LCD color screen has a friendly operation and control.
Adopting air circulation technology, the shrinkage chamber features rational structure, heat insulation, high precision for temperature control and better packing effects.
The idea model of high-speed heat-shrinking packager in the domestic market.

Specifications:

Packing form：2×3， 3×4，3×5, 4×5， 4×6(According to bottles)
Work power： three-phase-five- line 380V/50Hz
Working pressure：0.6～0.8Mpa
Shrink chamber size：L×W×H=2500×700×450(mm)
Speed：40-45pcs/min
Sealing & cutting temperature：190℃～230℃
Shrink temperature：200℃～280℃
material：PE
Roll of film width：≤600mm
Roll of film thickness：0.06～0.12mm
Roll of film diameter：≤450mm
Work noise：≤65dB
Total power：48KW
Total weight：4500kg
Machine size: L×W×H=17685×1530×2500mm (Include front& rear transfer frame)
Conveyer belt max width: 610mm, Height of produce line（Adjustable range 150mm）
