Food online >  Products >  Confectionery >  Chocolate & Cocoa >

HTL360 Automatic Chocolate Bar Wrapping Machine,China ChocTek price supplier

HTL360 Automatic Chocolate Bar Wrapping Machine
FOB Price:Price can be negotiated
Production Capacity:12 Set/Sets per Year
Update Time:2014-09-28
Product Description

Automatic chocolate bar Wrapping Machine
1.wrap with single or backed aluminum
2.capacity: 150-300pc/min

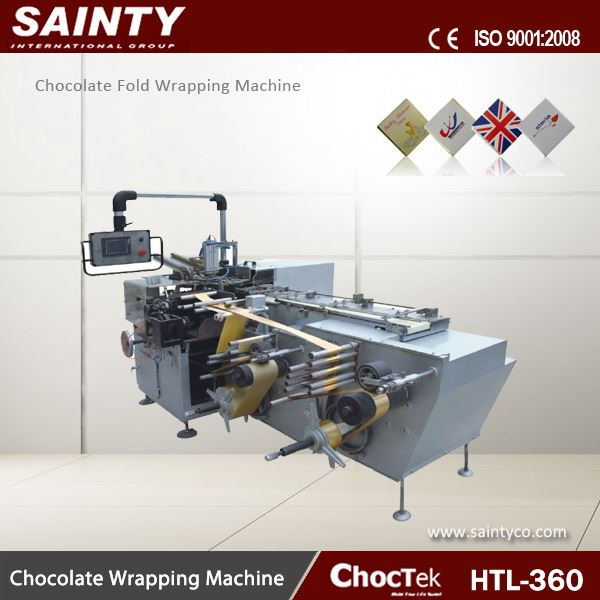

HTL360  Automatic Chocolate Bar Wrapping Machine



  HTL360 Automatic Chocolate Bar Wrapping Machine





Introductions:

HTL360 a utomatic wrapping machine is for chocolates, parlances and tablets in bunch also for special size and shape products, envelope styles. This machine can wrap with single or backed aluminum.

The special outlet group guarantees the perfect seal of the aluminum, even when using the not particularly plastic type. It can be set up for both random and horizontal outlets and can reach 360 actual wraps per minute depending on the shape of the chocolate and the wrapping material used .Has a color mark tracing system, so the wrapping is more perfect.



Features:

On this particular wrapping machine a series of holders has been mounted controlled by gears to transfer motion and cams for the movement of the folders. The latter mainly act on the bottom of the product and guarantee a perfect lasting seal to the wrap. The scale can also be reinforced by using a special adhesive-group to be applies on horizontal outlet.

The HTL360 is also provided with a wrapping size, feed belt with electronic product presence control, 4 folder wrapping equipment, roll-holder, machine stopping device.



Main technical parameters

HTL360

Production capacity

150-300pcs/min (based on the shape of individual products

Available shape of products

Rectangle, Square

Available size being wrapped

Length: 30-95mm

Width: 20-50mm

Height: 6-10mm

Film width

55-150mm

Power

380V/50Hz, 4.0Kw

Compressed air

0.6Mpa

Gross weight

1100kgs

Dimension (L x W x H)

2700 x 1400 x 1700mm



HTL360 Automatic Chocolate Bar Wrapping Machine

HTL360 Automatic Chocolate Bar Wrapping Machine

HTL360 Automatic Chocolate Bar Wrapping Machine



Why SaintyC o ?

We provide customer not only the machines but also the excellent service.



HTL360 Automatic Chocolate Bar Wrapping Machine

  • Understand your needs
  • Individual machine is designed upon user's need
  • In-time service
  • On-line / overseas technical support
  • Fast delivery
  • Always here for your service

...

Type:
Wrapping Machine
Condition:
New
Application:
chocolate
Packaging Type:
Bags,Film,Foil
Packaging Material:
Plastic,Paper
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380V/50Hz
Power:
4.0Kw,380V/50Hz, 4.0Kw
Place of Origin:
Zhejiang China (Mainland)
Brand Name:
ChocTek
Model Number:
HTL360
Dimension(L*W*H):
2700 x 1400 x 1700mm
Weight:
1100kgs
After-sales Service Provided:
Engineers available to service machinery overseas
Model:
HTL360
Production capacity:
150-300pcs/min (based on the shape of individual products
Available shape of products:
Rectangle, Square
Available size Length:
30-95mm
Available size Width:
20-50mm
Available size Height:
6-10mm
Film width:
55-150mm
Compressed air:
0.6Mpa
key word:
chcolate fold warpping machine
