HTST Pasteurizer,China MARS price supplier

HTST Pasteurizer

FOB Price:Price can be negotiated

Production Capacity:190 Piece/Pieces per Year

Payment Terms: US $10,000 - 12,000 / Piece

Update Time:2024-12-02

Contact Supplier

Product Description

HTST Pasteurizer-p1.html" style="text-decoration:underline;font-weight:bold;" target='_blank'> Pasteurizer
It adopts the present most advance welding technology, milk pasteurization machine,milk paste
CE

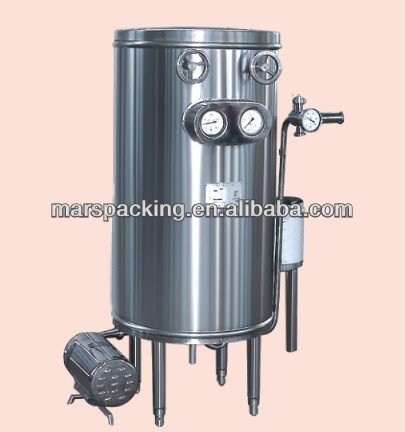

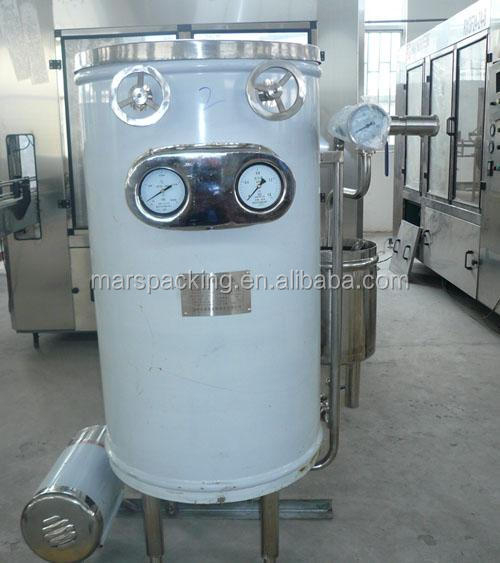

HTST Pasteurizer

Plate UHT Sterilizer can take hot process on the liqiud foods and beverage.

This machine adopts UTH processing method,makes the liquid dairy beverage and juice etc

strictly sterilized,then into aseptic package,with the Sterilization temperature:137°,

warm keeping time:3-5S,so to keep the original nutrition,colour and flavour of the beverage and dairy.

This machine os of the advantage of high heat recycle,compact and fine structure,]and temperature control.Outputing material temperature,and cool package.Capacity:1-10T/h. Controlling ways:semi-automatic,full automatic(PLC controlling.touch screen).

Plate type UTH is PLC controlled,The system work in aseptic section and normal section,for technical requirements of filling

at low temperature,normal temperature and high temperature.The seven-section heat exchanger ensures minimum consumption of energy,and perfect design of CIP

and SIP satisfies the demand of cleaning and sterilization.Ultra-high temperature water is employed as the media for the heating of material and temperature

adjustment of filling exit,featuring high accuracy.

Main Technical Standards

Model	MA-UHT-1	UHT-2	UHT-3	UHT-4	UHT-5
Production capacity(T/h)	1	2	3	4	5
Heat exchanging area	16	26	38	46	56
Material inlet temperature(°C)	5	5	5	5	5
Material outlet temperature(°C)	5	5	5	5	5
Sterilizing temperature (°C)	137	137	137	137	137
Warm keeping time(S)	4	4	4	4	4
Ice water temperature(°C)	1	1	1	1	1
Ice water consumption(T/h)	3	4	6	8	12
Joint size(mm)	25	38	38	51	51
Weight(kg)	980	1080	1160	1350	1680
Sizemm	1500x1500x2000	1900x1800x2200	2100x2200x2500	2300x2000x2500	2600x2200x2500
Power(kw)	3	4	5	6	7

Condition:	New	Place of Origin:	Jiangsu China (Mainland)	Brand Name:	MARS
Model Number:	MA-UHT-1	Usage:	Milk	Voltage:	220v 380v
Power(W):	3kw	Weight:	980kg	Dimension(LWH):	1500x1500x2000mm
Certification:	CE	Warranty:	1 Year	After-sales Service Provided:	Engineers available to service machinery overseas
