JHH-2000 for fabric starching corn starch making line,China JINHE price supplier

JHH-2000 for fabric starching corn starch making line

FOB Price:Price can be negotiated

Production Capacity:10 Set/Sets per Month

Payment Terms: US $2,000 - 275,000 / Set

Update Time:2014-09-27

Contact Supplier

Product Description

1.big working volume
2.save 50%time, 70% energy saving
3.DCS computer control system
4.ECP programme.

1000-30000L JHH fertilizer Powder mixing/packing production line

www.dryMixer.com

Corn Starch making line" data-width="600" ori-width="990" ori-height="400" />

for fabric starching corn starch making line Products Background

Zhengzhou JinTai Metal materials co., LTD is devoted in improving mixing technical, mixing efficiency over 10 years. Keeping up with the need of the enterprise development, under the guides of new mixing principle—double movement superposed mixing method, with the leader Mr. Liu Honglin, open mind, develop thought, bold innovation, finally, we create JINHE double movement mixer successfully at 2007.

Products Profile

JHL-2000 for fabric starching corn starch making line is designed to WSF (water soluble fertilizer) Processing Line

A water soluble fertilizer is a compound that dissolves easily in water and provides nutrients for plants. This type of fertilizer may then be absorbed quickly and completely by the plant root system. It is typically used entirely by the plant and washes out of the soil without leaving behind an excess of unused nutrients or toxins.

All chemically-created fertilizers contain varying amounts of nitrogen, phosphorus, and potassium, among other ingredients. These three nutrients, also known as macronutrients, are usually listed on the label as numbers in this precise order. Therefore, a label that reads '10-8-5' would contain a high amount of nitrogen, a medium amount of phosphorus, and a relatively small amount of potassium. These numbers are rarely the exact formula that is contained in the fertilizer, as manufacturers prefer to protect their recipe secrets from competitors. A water soluble fertilizer also may contain magnesium, calcium, molybdenum, sulfur, and copper.

Every garden contains a different type of soil with a unique mixture of clay, loam, and sand. These soil mixtures typically benefit the most from receiving chemical additives that specifically provide for any pre-existing deficiencies. A clay-based soil with high acidity may require larger amounts of nitrogen than a soil with a balanced mix of sand and loam. Using a water soluble fertilizer allows gardeners to choose, with a great amount of precision, the amount of each chemical they wish to add to their plants.

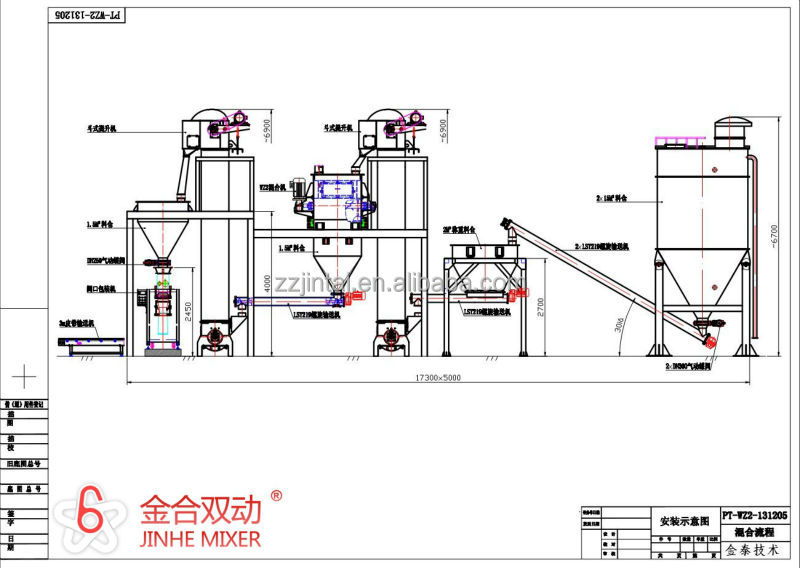

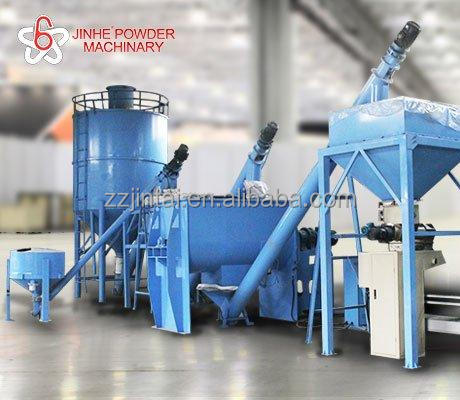

for fabric starching corn starch making line include:

JINHE Brand JHH huge powder mixer, ribbon mixer, plough mixer, nauta mixer.

JINHE Brand Auto feeding and transfer system.

JINHE Brand Automatic batching system

JINHE Brand automatic powder packing machine,

JINHE stainless steel enclosed bucked elevator,

JINHE Brand vibrating screen classicifier,

JINHE Brand screw feeding system,

JINHE Brand DCS control system.

JHL-2000 has its unique advantage that we design 8 huge impending spiral fixed blades so as to improve mixing efficiency. When the barrel turning, dry powder turning over, the spiral blades could make dry powders shunt around. Therefore, this new principle greatly promotes mixing efficiency.

The weiting packing machine usesing advanced microcomputer control processing technology with variable frequency speed regulation and simple operation to improve the speed and precision grately.Spiral mandatary next makings,with high efficiency,stable work,convenient maintenance.

for fabric starching corn starch making line Application:fertilizer,chemical,food,pharmacy industrial.

1. JHRB powder mixer features

Model Project	Total Volume (M³)	Loads coefficient	Electrical machiney power (KW)	Size(mm)× Max-diameter ×High	Equipment weight (kg)
JHRB-0.15	0.15	0.4-0.8	3	1190×740×770	330
JHRB-0.3	0.3	0.4-0.8	4	2030×630×980	720
JHRB-0.5	0.5	0.4-0.8	7.5	2320×730×1130	980
JHRB-1	1	0.4-0.8	11	2800×920×1320	1700
JHRB-1.5	1.5	0.4-0.8	11	3180×1020×1550	1800
JHRB-2	2	0.4-0.8	15	3310×1120×1640	2100
JHRB-3	3	0.4-0.8	18.5	3750×1290×1820	3000
JHRB-4	4	0.4-0.8	22	4220×1400×1990	3980
JHRB-5	5	0.4-0.8	22	4220×1500×2100	4620
JHRB-6	6	0.4-0.8	30	4700×1610×2260	6180
JHRB-8	8	0.4-0.8	37	4420×2150×2470	8200
JHRB-10	10	0.4-0.8	45	5520×2960×2720	8920
JHRB-12	12	0.4-0.8	45	5720×3010×2840	9520
JHRB-15	15	0.4-0.8	55	5840×3540×2940	9950

2. JHH weighting packing machine features

Model	JHH-10	JHH-50
Weighting range	10-25KG	25-50KG
Precision	±0.2-0.5	±0.2-0.5
Speed	700-500bags/h	500-450bags/h
Motor power	380V 2.25KW	380V 2.25KW
Weight	450KG	450KG
Size	770×1400×1825(mm)	770×1400×1825(mm)

Working Video in Youtube

http://www.youtube.com/watch?v=-M8MTMonMzk

....

Condition:	New	Mixer Type:	Ribbon	Product Type:	Fertilizer
Application:	Powder	Additional Capabilities:	Drying	Place of Origin:	Henan China (Mainland)
Brand Name:	JINHE	Model Number:	JHH	Max. Loading Capacity:	30 ton
Voltage:	380V 415V 220V	Certification:	ISO 9001	Warranty:	ONE YEAR
After-sales Service Provided:	Engineers available to service machinery overseas	Volume:	1000L,2000L,3000L,5000L........30000L	Material:	Stainless steel
Motor Power:	12kw-25kw
