Juice Pasteurizer,China HH price supplier

Juice Pasteurizer

FOB Price:Price can be negotiated

Production Capacity:1000 Unit/Units per Year

Update Time:2014-09-19

Contact Supplier

Product Description

Juice Pasteurizer
1.PLC control system
2.For milk,juice,wine,etc
3.Plate or tubular type,1~20T/H
4.With CE

Product Description

Juice Pasteurizer 's Suitable Material

Juice Pasteurizer is suitable for liquid materials such as fresh milk, juice, beverage, alcohol, Soybean Milk and fluid medicines,etc.

Juice Pasteurizer ’s Characteristics

1. The material and the heating medium are in their own sealing system, ensure materials sanitary;

2. Short s terilization time, maintain the nutrition;

3. Good heat transfer effect, high heat recovery, less energy consumption;

4. The main control components, valve parts and accessories are imported parts, with long life;

5. Adopting PLC control, may automaticly control the heating temperature, hot water temperature, the steam flow adjusting. And is equipped with the material automatic backflow system, ensure 100% Sterilization effect;

6. Simple structure, easy to clean, convenient operation, low cost of maintenance.

Juice Pasteurizer 's Material

The Juice Pasteurizer material from Hangzhou Huihe Machine Facture Co., Ltd usually is SUS304 or SUS316L if the customer has no special requirements.

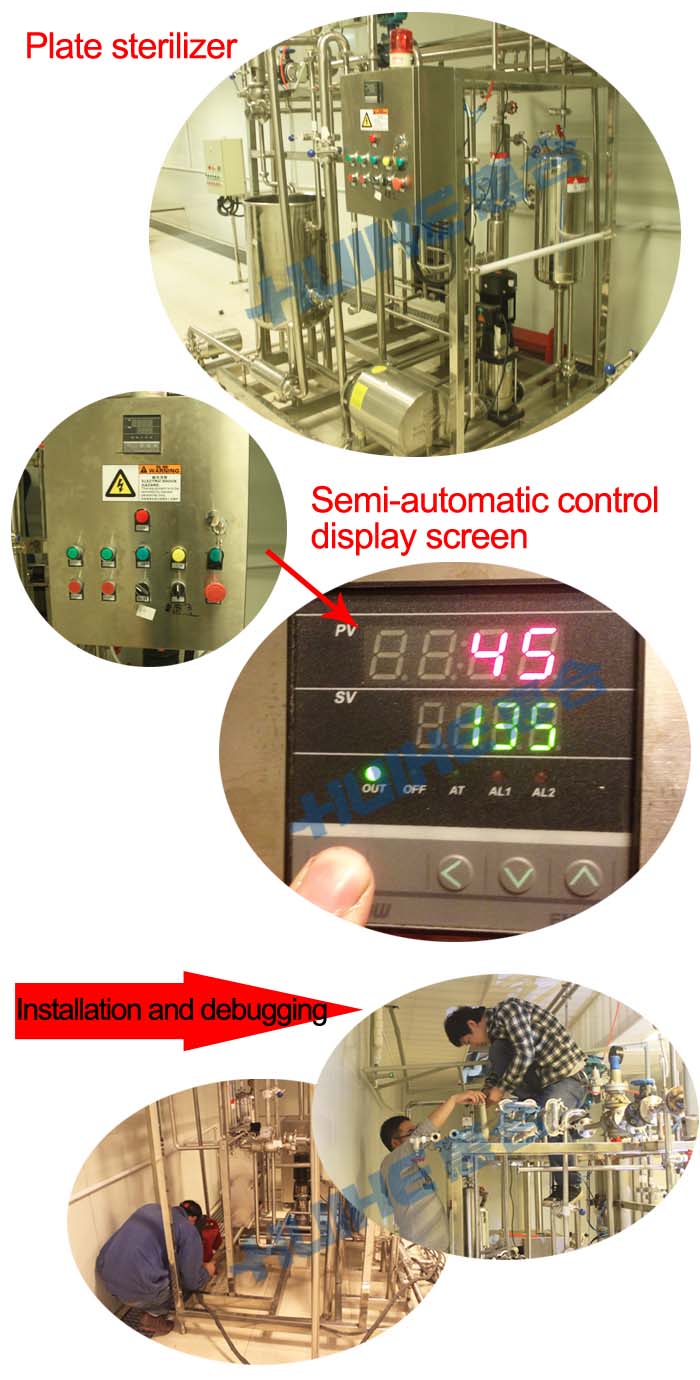

Juice Pasteurizer ’s Detailed Picture

Juice Pasteurizer ’s Technical Parameter

Process parameters: 65 °C homogeneous to 120 °C (30 S)-5 °C

Cooling water 25 °C

Model	Capacity (t/h)	Steam consumption (kg/h)	Steam prssure (bar)	Electric power (kw)	Weight (kg)	Tube diameter(Φ)
Model	Capacity (t/h)	Steam consumption (kg/h)	Steam prssure (bar)	Electric power (kw)	Weight (kg)	material	steam	medium
HE-BR0.1-GCH-1	1	120	6.0	2.8	460	25	DN25	25
HE-BR0.1-GCH-2	2	240	6.0	3.0	460	25	DN25	25
HE-BR0.25-GCH-3	3	390	6.0	4.0	460	38	DN32	38
HE-BR0.25-GCH-4	4	520	6.0	4.0	500	38	DN40	38
HE-BR0.25-GCH-5	5	650	6.0	5.5	560	38	DN40	38
HE-BR0.25-GCH-6	6	780	6.0	5.5	600	51	DN40	51
HE-BR0.25-GCH-8	8	1040	6.0	5.5	720	51	DN50	51
HE-BR0.25-GCH-10	10	1300	6.0	7.8	820	51	DN65	51
HE-BR0.4-GCH-15	15	1950	6.0	10.5	1620	63	DN80	63
HE-BR0.6-GCH-20	20	2400	6.0	15.0	2400	63	DN100	63

Notes:

1. The parameters in the chart are standard configuration. Any specific requirements, please let us know.

2. These process parameters need provided :material properties, sterilization process, capacity, specific requirements, etc.

3. Auxiliary equipment: gas storage tank, air compressor, water storage tank and boiler. (customer need to equipped by themselves).

4.My skype: amy.tian90

Our Services

Why Choosing Our Juice Pasteurizer

Packaging & Shipping

Juice Pasteurizer ’s Packing Before Delivery

Company Information

Authentication certificate and strength show

Processing:	Sterilizer,Sterilization	Condition:	New	Place of Origin:	Zhejiang China (Mainland)
Brand Name:	HH	Model Number:	Plate UHT	Processing Types:	Milk
Voltage:	380V or made to order	Power(W):	2800-15000W	Weight:	460kg-2400kg
Dimension(LWH):	made to order	Certification:	CE	Warranty:	1 year
After-sales Service Provided:	Engineers available to service machinery overseas	Stainless Steel:	Sanitary	Plate or tube UHT:	Liquid Product
Diary Product:	High efficiency	Driven Type:	Electric Steam	Juice Pasteurizer:	Color Off-white
Material:	SUS304,SUS316L	Automatic grade:	Fully or semi automatic	Customized:	Accept
Sterilization time:	Short	Juice Pasteurizer Usage:	Customized
