JY series11 best quality bar chocolate production line,China JY price supplier

JY series11 best quality bar chocolate production line

FOB Price:Price can be negotiated

Production Capacity:100 Set/Sets per Month

Payment Terms: US $1,000 - 100,000 / Set

Update Time:2014-09-28

Contact Supplier

Product Description

ISO&CE certificate,chocolate packing machine factory, chocolate packing machine manufacturer,we can design based on your demand

Introduction

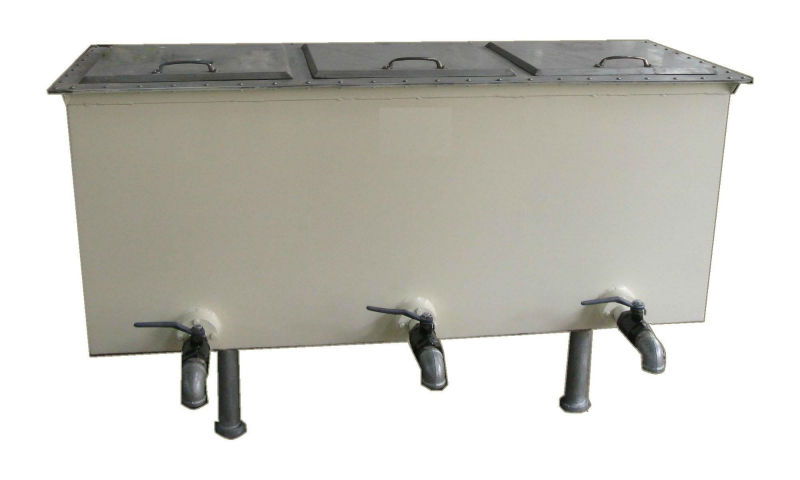

1. Cocoa butter Melting Tank:

The cocoa butter melting tank is used for melting the cocoa butter.

Capacity:	360kg
Motor power:	8kw
Shape:	Rectangle or cylinder
Material:	Inner: stainless steel, outer: mild steel
Outside dimension:	19009701250mm

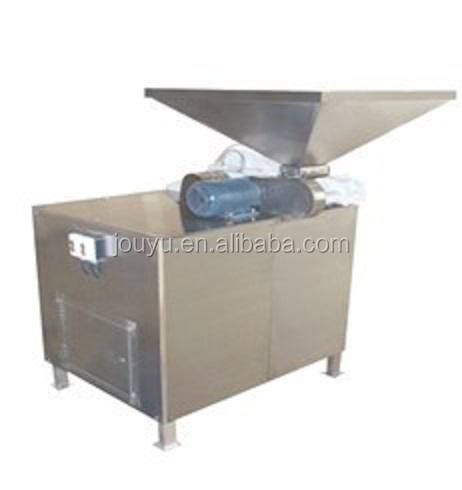

2. Sugar grinding machine:

This machine isused for secondary grinding of granulated sugar.

Production capacity:	250kg/h
Feeding granularity:	0.5~2mm
Average grain:	80-100 mesh
Main shaft power:	7.5kw
Gross weight:	720kg
Outside dimension	12409601733mm

3. Chocolate conche:

The chocolate conche machine is used for the fine grinding of chocolate material.

Maximum capacity(L):	1000L
Grinding Fineness(micron):	20~25
Main Axle Rotating Speed(rpm):	35
Grinding time(h):	16~22
Main motor power(kw):	18.5
Electrical heating power(kw):	2*2
Weight(kg):	3050
Outside dimensions(mm):	262712801520

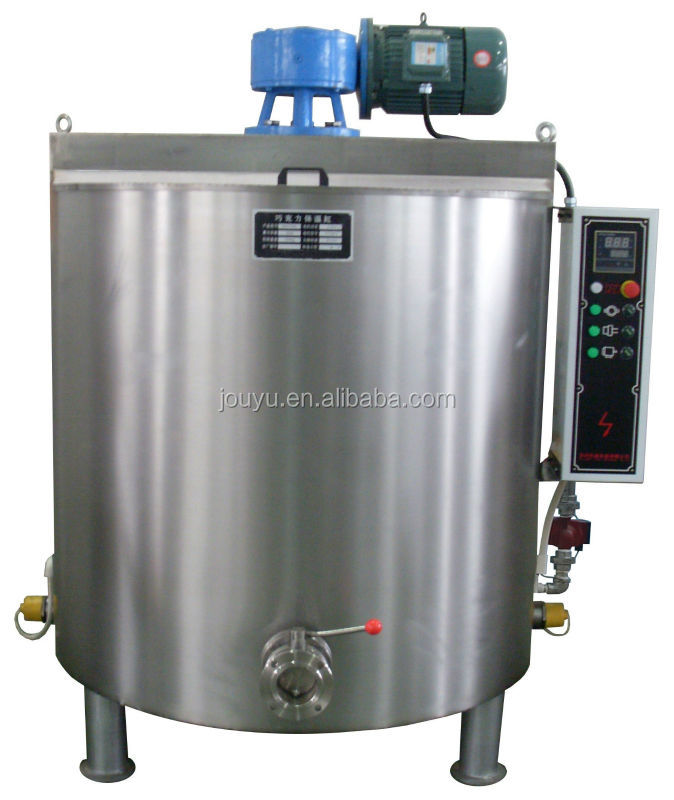

4. Chocolate holding tank

This chocolate tank has functions of temperature decrease, rise and preservation.

Maximum capacity	1000kg
Motor power:	2.2kw
Electric Heater Power:	4kw
Tank Interlayer Water Temperature:	55°C (Warm-up temperature of chocolate mass)
Net weight:	1000kg
Outside dimension:	(Diameter)1220*(Height)1850mm

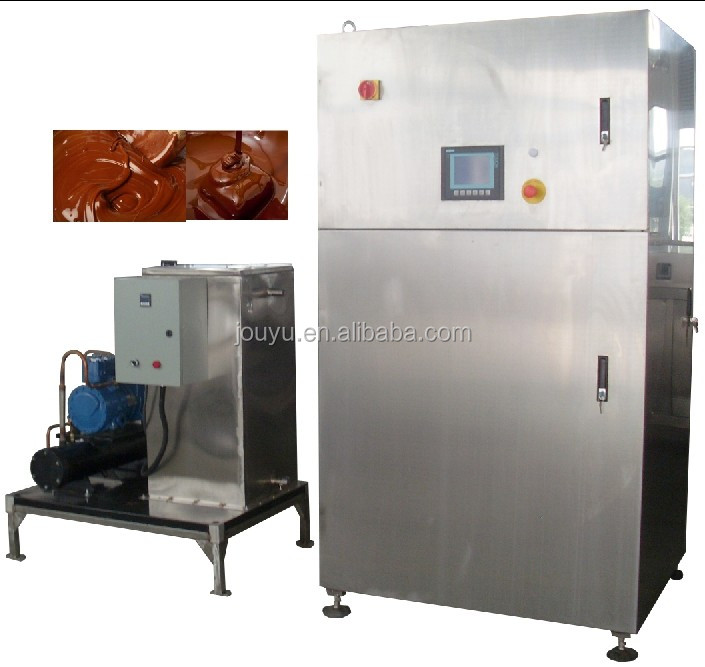

5. chocolate tempering machine:

This machine is designed according to the characteristics of the natural cocoa butter.

Model	DSCF2290
Project	DSCF2290
Host Power(kw)	1.5
Cold water pump power(kw)	0.12
Hot water pump power(kw)	0.12
Electric heating power(kw)	1*2
Refrigeration power(kw)	2.25
Water pressure(bar)	2
Capacity ( kg/h)	100
Voltage(V)	380V (It can be made according to your request)

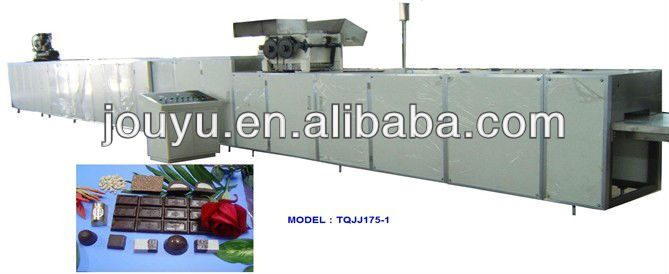

6. Chocolate depositing machine:

1).This chocolate depositing line can produce pure solid chocolate, center filling chocolate, two color chocolate, nuts mixed chocolate with nuts mixing machine. Chocolate can be compound chocolate and real chocolate.

2).Products can be manufactured with Biscuits or wafers simply by installing the relevant biscuit feeding units.

3).Chocolate depositing line can complete automatic feeding mould, baking mould, depositing, vibrating mould, cooling, de-moulding, conveying empty moulds for cycle AUTOMATICALLY and dosage system is mechanical.

4).This depositing line has merits of high productivity, accurate dosing, smooth surface of chocolate etc.

5).Meet the requirement of international food sanitation standard.

Production capacity:	800 - 2500kg/8hrs
Depositing times:	20 - 25times/minute
Dosage system:	mechanical
Mechanical vibrating frequency:	200 - 1000times/minute.
Molds vibrating amplitude:	0 - 3mm, adjustable
Cooling time:	18 - 30min
Cooling temperature:	5 - 10°C
Cooling tunnel length:	8.2m * 8 Layers
Time of baking molds:	20 - 36 seconds
Temperature of baking molds:	35 - 40°C
Length of baking molds:	1.4m
Refrigeration capacity:	20000 - 25000kcal/h (10 HP COPERLAND)
Evaporator area:	80 square meters
Quantity of moulds:	300 pieces
Dimension of moulds:	standard 275×175×30mm
Total Power of machine:	17.4kw
Dimensions:	16000×1000×1800(L×W×H, mm)
Weight of the machine:	3500kg

7. Pumps:

Motor power	1.5/0.75kw
Rotation of main spindle	127r/min
Maximum flow	32/25L/min
Mass viscosity	2m
Maximum delivery lift	50°E35
Weight	120/80kg
Dimension	820×390×350

Final products:

Condition:	New	Place of Origin:	Shanghai China (Mainland)	Brand Name:	JY
Model Number:	JY175	Application:	Chocolate	Voltage:	220V,380V
Power(W):	37kw	Weight:	5000kg	Dimension(LWH):	1600010001800(LWH, mm)
Certification:	CE, ISO	Warranty:	one year	After-sales Service Provided:	Engineers available to service machinery overseas
Material::	stainless steel
