Product Description

This line is a complete plant for continuously producing various kinds of cotton candies (Marshmallow).

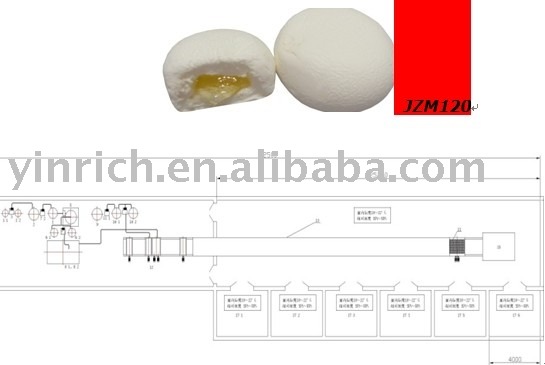

JZM120 Marshmallow Machine

PROCEDURE:

1) In the pre-mixer, all the ingredients to be dissolved and cooked (An automatic YINRICH ‘s AWS can be used for auto weighing and mixing)

2) Then the basic slurry is continuously pumped to a Cooker till the final moisture level is reached

3) After cooking, the slurry will be cooled and mixed with a separate whipping agent solution

4) Then the cooled “marshmallow base” is passed through the continuous aerator

5) The product then be divided and injection with different colors and flavors

6) The multi-color product is extruded ,and transported on a cooling Conveyor for cooling down

7) The conditioned marshmallows are dusted top and bottom with starch, or a mixture of both starch and icing sugar in a separate dust cabin; the product is cut to the required length here

8) The dust cabin is kept under a strict control to prevent the “dust” spreading throughout the plant. The excess starch/sugar is removed

9) The final is transferred to a packaging place

TECHNICAL SPECIFICATIONS:

Model	JZM120
Production capacity kg/h	60~80
Making size of the product mm	20~50
Steam consumption kg/h Steam pressure MPa	250 0.2~0.6
Electric power needed	35kW/380V
Compressed air consumption Compressed air pressure	1.5m ³ /min 0.6-0.8MPa
Conditions needed for the cooling system: 1. Room temperature(°C) 2. Humidity (%)	20~25 45~55
Gross weight kgs	8000
Total length of the line m	25

MAIN EQUIPMENT LIST:

Description	Specifications	Power(kw)	Remark
Mass preparation section	100kgs/h
Gelatin melting tank	100L	0.75	SUS304
Hipping agent pre-mixer	200L	0.75	SUS304
Rotary pump		1.1	SUS304
Sugar dissolving cooker	Φ1000x1100		SUS304
Continuous screw type dissolving and boiling cooker	1200x1200x2000	1.5	SUS304
Vacuum chamber	200L	4	SUS304
Screw pump		1.5
Final mixing and holding tank	Φ700x1500	1.1	SUS304
Deposited marshmallow line	60~80kgs/h
Feeding pump		1.1kw	SUS304
Continuous aerator	1500x1000x1400	10	SUS304
Jam cooker with pump	100L	4	SUS304
Jam storage tank with pump	200L	0.75
Center’n shell depositer		10	Controlled by Step motor
Cooling tunnel with chiller	25000x1200x1800	20
Release agent applicator		1.1
Starch vibrator		1.2
Elevation conveyor		0.75
De-starch drum
Compressed air	0.6MPa		Provided by Buyer
Circular hot water tank	85-100°C
All connected jacketed pipes and valves

Photos of product:

Place of Origin:	Beijing China (Mainland)	Brand Name:	YINRICH	Model Number:	JMZ120
Type:	Cooking Equipment	After-sales Service Provided:	Engineers available to service machinery overseas	Processing Types:	Marshmallow
Processing:	Extruded
