KD300B chewing gum making machine

FOB Price:Price can be negotiated

Production Capacity:1 Set/Sets per Month

Update Time:2023-05-20

Contact Supplier

Product Description

1.KD300B chewing gums
2.Soft candies, such as central- filling milk candies, Toffee candies and etc.

The processing line is an advanced plant for making chewing gums ,also can be used as making soft candies, such as central- filling milk candies, toffee candies and etc.. It is also an ideal equipment which can produce out good quality products with the saving of both the manpower and the space occupied.

COMMODITY:

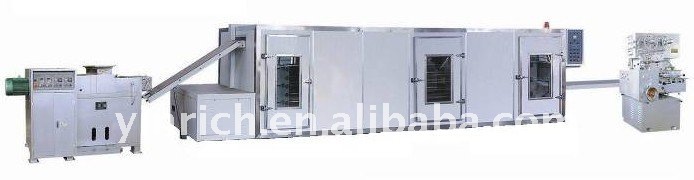

KD300 Two Color Bubble Gum (Chewing Candy) Production Line

for cut & wrap products

TECHNICAL SPECIFICATIONS:

Model	KXT300
Production capacity ( kg/h)	200~300
Rated output speed (pcs/min)	500 X2(1000)
Weight of each candy (g)	Shell: 7g(max.) Central-filling:2g(max)
Electric power needed	45kw/380V
Compressed air consumption Compressed air pressure	25m ³ /min 0.4-0.6 Mpa
Conditions needed for the cooling system: 1.Room temperature(°C) 2.Humidity (%)	20~25 55
Length of the whole line (m)	21m
Gross weight ( Kgs)	Approx.8000

MAIN EQUIPMENT LIST:

MODEL: KXT300

ITEMS	QTY	POWER (KW)	WT (KG)	DIMENSION (MM)
Section A.Preparation for chewing gum
sugar CRASHER	1	3.5	200	800X600X1000
Gum Base OVEN	1	8	200	1100X800X1000
200L MIXER	2	19.6/SET	2000	2450X820X1250
Section B.Preparation for toffee mass
sugar dissolving Cooker	1			300L
Syrup storage tank	1			200L
Gear pump and pipes	1
Toffee cooker TC160	1			300kgs/h
mixer	4
Section C. cut’n wrap production line
EXTRUDER	1	11	1000	1850X680X1290
COOLING TUNNEL	1	3	2500	13000X1800X1900
TRANSPORTER	1	1.5	650	2850X670X700
CUT& pillow WRAPPING	2	KZB800	1000	3200X1200X1000
Cut& double twist wrapping	3	QNB500	1200
Cut & fold wrapping	3	QZB500	1200

Place of Origin:	China (Mainland)	Brand Name:	Yinrich	Model Number:	KD300B
Application:	Candy	Certificate 1:	CE	Certificate 2:	CQC
Certificate 3:	ISO9001:2000

Company Profile

Name: Beijing Yinrich Technology Developing Co., Ltd.

Main Products: Chocolate Machine,Candy Machine

Business Type: Manufacturer, Trading Company

Total Employees: 51 - 100 People

Established Year: 2002

Main Markets: North America, South America, Eastern Europe, Southeast Asia, Africa

Address: No.10 Baifuquan Road, Changping District, Beijing, China

YINRICH ,CHINA ,since 1996 is a top leading and professional machinery designer and manufacturer in China for providing the high quality confectionery and chocolate processing machinery ,packaging equipment ,and food machines . It has one trading company :Beijing YINRICH International Trading Co.,Ltd. and two factories : Shanghai YINRICH Machinery Manufacturing Co.,Ltd. , and Beijing YINRICH Technology Developing Co.,Ltd..
YINRICH machines and equipment are designed for the highest technical standards, system consistency, flexibility and economy. No matter whether stand-alone machines using semi-automatic production method , or fully automatic production lines, all the machines can be chosen to the individual customer requirement. As the top-leading corporation for the packaging and confectionery and food machinery in China, YINRICH offers not only the advanced equipment with competitive and economical efficiency, but bring to the customer the whole solution method for the confectionery and chocolate production and packaging ,i.e. to provide the customer a turn-key project. We provide the design, production, and assembly of small ,medium and large confectionery ,chocolate lines in accordance with the customer's specific demands.
We are never satisfied with the present achievements. The client's need is our motive force to design and build the top quality machines in China. We are happy to provide you our best services and also will be happy to share with you our professional experiences of over 15 years in this field. more
