Lab Inline High-shear Emulsifier,China SIEHE price supplier

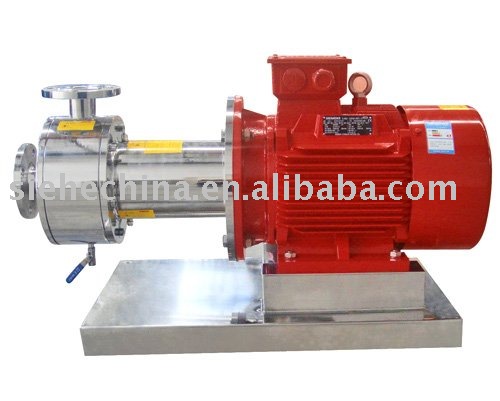

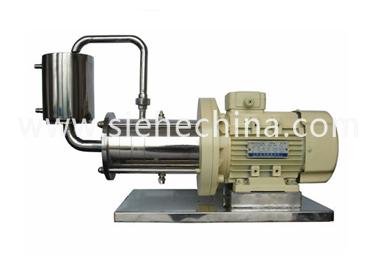

Lab Inline High-shear Emulsifier

1. Working Principle

The high linear velocity (generated at the high speed rotating rotor of the High-shear Homogenizing Emulsifier) and strong kinetic energy (generated by the high frequency mechanical effect) put the materials under comprehensive action such as strong shearing, centrifugal extrusion, hydraulic friction, crash etc between the precision gap of the stator and rotor. As the result, the solid phase, liquid phase and gas phase which is insoluble at beginning will prompt evenly dispersed and emulsified after adopting mature production processing and proper quantity additives.

2. Main Features

a.In the narrow chamber, there are one to three layers of pair meshed stator & rotor. The high-speed rotation rotor driven by the motor generates strong axial direction force and absorb the materials into the working chamber to disperser, shear, emulsify the materials in a short time.
b.It also can obviously narrow the size distributions so that it can manufacture fine and stable products.

3. Technical Parameter

Power Supply: 220V,50/60Hz

Power: 1100W

Speed Adjustment:0-2930rpm (Can be customized up to 6000rpm), digital speed display, various speed control.

Seal: Mechanical Seal

Materials: The part contacting with materials is SS304 or SS316L.

Weight: 50kg

Remarks:

*The above listed Max. processing capacity is calculated as per water as medium. The model selection should depend on the comprehensive factors such as materials viscosity, specific gravity etc.
*The above data and picture is subject to change without notice. The accurate parameter should be subject to the object.
