Lab machine for chewing gum,China Huabao price supplier

Lab machine for chewing gum
FOB Price:Price can be negotiated
Production Capacity:390 Set/Sets per Year Kneader series
Payment Terms: US $3,500 - 56,980 / Set
Update Time:2014-09-25
Product Description

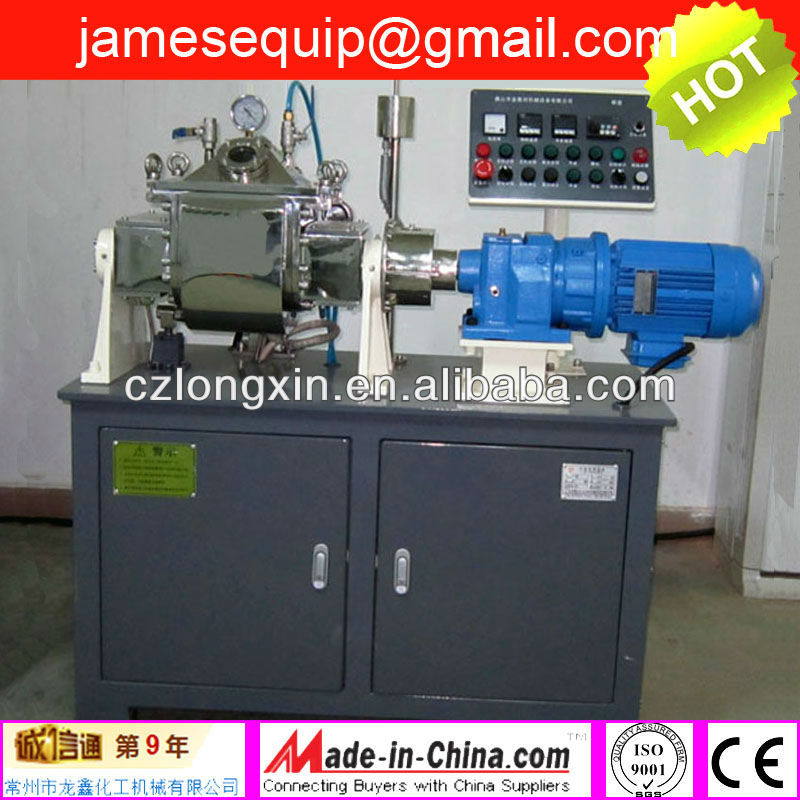

Lab machine for Chewing Gum
Made in China SGS certificate
China No.1 Manufacturer
Stainless steel material
Customized

1.bubble gum chewing gum kneader Mixers. LXNHZ-1Ltr Huabao TM silicone vacuum kneader to India kneader/kneader export mixer for Lab For produce Silicone Adhesives & sealants:

LXNHZ means the Longxin Company Unique design perfect vacuum kneader/kneader Huabao is a famous TM belongs to the Longxin company, 1Ltr means the Chamber is 1Liters,wich could filling 1*60%=0.6Liters Material.

Lab machine for chewing gum

2.Silicone Pre-Mixing machine for silicone sealant (Viscous Fluid produce):

The silicon Vacuum kneader mixer is Special Mixer which designed for High Viscous Fluid or Sticky Material.

E.g.:

a,Chewing gum,Bubble gum, Double Mint;

b,Silicone Rubber+ Silicon Dioxide;

c,Oil Ink, Li-ion Battery Paste,etc.

Lab machine for chewing gum



3.Vacuum Kneader Blades Feature:

There are 2 blades working in different speed, the kneader could be designed into Sigma type Blades,Z blades, Fish Nail Blades, Cutter Type Blades,etc.

Lab machine for chewing gum

4. Technical Parameters:



Model



Chamber Volum(L)

Drive motor power

(KW)

Mixing Speed (rpm)

  Discharge mode

  Heating

Full volume

Feeding amount

Paddle fast / slow paddle

 Optional parameters Optional parameters

LXNHZ-5

5

3

2.2-4

75/50

Manual / Hydraulic tilting

Running Hot

oil

Electrical heating

Pressure Steam

LXNHZ-20

20

12

3-5.5

63/42

LXNHZ-50

50

30

4-7.5

63/42

LXNHZ-100

100

60

5.5-7.5

43/29

LXNHZ-200

200

120

7.5-15

43/29

Hydraulic tilting

The bottom pumping

Screw extruding

LXNHZ-300

300

180

11-18.5

43/29

LXNHZ-500

500

300

18.5-30

43/29

LXNHZ-1000

1000

600

22-55

32/22

LXNHZ-1500

1500

900

30-90

32/22

LXNHZ-2000

2000

1200

45-110

32/22

LXNHZ-3000

3000

1800

55-130

33/22

Remarks:

1,Temperature range: 0-300°,

2, Pressure range:-0.1-0.6MPa,

3,Frequency inverter control the main motor speed,if necessory.

5.Kneader Characters & Constructions:

1) Silicone Vacuum Kneader mixers consist:normal pressure one, high pressure one and vacuum type.

2) Temperature adjustment: heated by oil, steam or electricity, cooled by water.

3) Discharge method: tilt dump, bottom dump and screw discharge.

4) The seal of shaft agitator is adopted with unique balance construction of vacuum box, Which owns patent.

5) The cover is controlled by hydraulic system.

Lab machine for chewing gum

6.Longxin & Huabao Honor(Parts):

Warmly welcome friends come here visiting! Wish you become one of the giants in this photo!

Lab machine for chewing gum

7. Viscousity Material Vacuum kneader Mixers for Uploading:

Three Mixers in a 40'HQ.Mixers to Middle East.

Lab machine for chewing gum

8.Not only one Award:

The Longxin company is the Permanent Chairman of the Chinese Daily Chemical Industry Association. Besides, the Longxin is AAA contract sign up company. The machine awards ISO9001:2000&CE verification.



Lab machine for chewing gum Lab machine for chewing gum

9.Feel free contact your personal account manager:

Lab machine for chewing gum

Place of Origin:
Taiwan
Brand Name:
Huabao
Model Number:
LXNH-3~3000
Application:
chewing gum,Adhesives & Sealants,chewing gum
Voltage:
380V
Power(W):
30kw
Weight:
1000kg
Dimension(L*W*H):
3600*1200*1500
Certification:
CE&ISO&SGS
Warranty:
1 year
After-sales Service Provided:
Engineers available to service machinery overseas
Vacuum:
-0.098Mpa
Heating Temp:
~280Centigrade
Mixing Blades:
Z,Sigma Blades Mixers
Mixing Speed:
42/28rpm
Housing:
Stainless Steel
Structure:
Stand / Table
Mixing Bowl Capacity:
3~3000
Number of Speed Settings:
10
Mixing Bowl Material:
Stainless Steel
Company Profile
Name: Changzhou Longxin Machinery Co., Ltd.
Main Products: Three Roller Mill,Bead Mill,Planetary Mixer
Business Type: Manufacturer
Total Employees: 101 - 200 People
Established Year: 2001
Main Markets: Domestic Market, Africa, South America, South Asia, Eastern Europe
Address: Hengshanqiao Village Wujin district
Established in 1967,Changzhou Longxin Machinery Co.,Ltd. is a leading producer which specialized in manufacturing & designing: Roller mill, Bead mill, Sand mill, Sigma mixers, Planetary mixer, Planetary disperser, High speed disperser,Reactors, etc.

Longxin has expanded its business to meet the Food, Pharmaceutical & Chemical industry's requirements for high-quality machinery & production line.

Longxin's headquarters and manufacturing facilities are located in Hengshanqiao Town, Changzhou city, Jiangsu Province, China.
Besides, Longxin owns maintenance & service branch office in Taiwan, India, Poland, Turkey & Brazil.

"Longxin" & "Huabao" were the famous trade mark belongs the company. Besides the company have many patents in these type machinery designing & manufacturing. Longxin focuses on researching and developing products for wet grinding and mixing.

Longxin clings to high efficiency, passion, and integrity. Not only emphasize the quality, but also pay attention to the service after sale.
Honored customers were: Dic, DS, Toyo, Sinopec, Sakata, Encres Dubuit, Flint. Wish you become our honor.

Sincerely welcome friends all over the world to come here visiting & developing together, to create chemical industry with a great splendor and a better future. more
