Lab planetary mixer/blender/paste mixer,China FARFLY price supplier

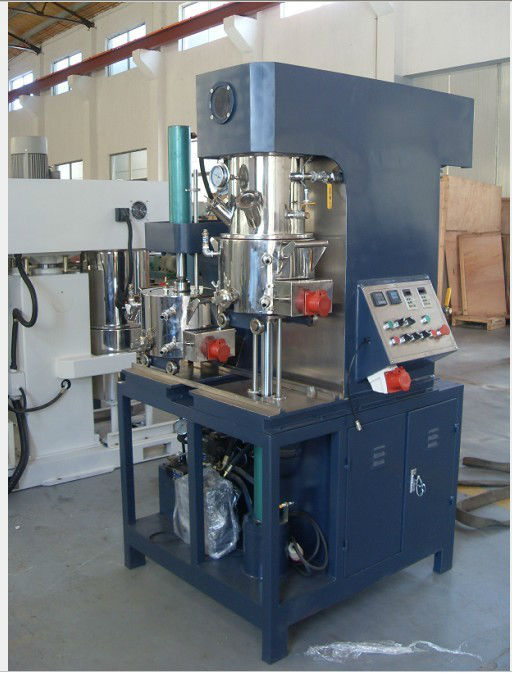

Lab planetary mixer/blender/paste mixer

Double planetary mixer,mixing equipment,blender machine. Double planetary mixer is suitable for dissolving, mixing, stirring and reaction for high viscosity materials.

Features:

1. The mixing paddle in the kettle rotates and revolutions in the same time,and so it makes the materials stirring quickly.

2. There are a few type of mixing blades for options such as twist,frames and paddle types.

3. Vacuum design ensure material work under sealed environments.

4.  High speed dispersing disc and high shear emulisifier is options.

1000L double planetary  mixing equipment  system

Maximum viscosity: 10,000,000 cps

I. Planetary Mixer

1.      Paddles

Double mixing paddle+ double high speed dispersing disc+ low speed wall scraper

2.      Paddle specifications

1)     double high speed dispersing unit

Power: 55kw

Speed: 0-1500 rpm

Material: SUS304

2)     double paddles

Power: 30kw

Revolution: 0-21rpm

Rotation: 0-41rpm

Material: SUS304

3)     low speed wall scraper

Speed: 0-21rpm

3.      Hydraulic lifting system

Double shaft hydraulic lifting

Power of hydraulic pump: 4kw

Range of lifting: 1000mm

Material: spray-painted carbon steel, Hard Chromium Plated piston rod

4.      Vessel

Double layer vessel, volume: 1000L, Φ1100X1100

Material: SUS304

II.     Hydraulic discharging machine

Power: 7.5kw

Material: contact material SUS304, the others carbon steel

III.    Control system

       Distribution counter: The main electrical component is SE

       VVVF: DANFOSS

       Motor: ABB (EX-PROOF)
