  label applicator

Product overview of the label applicator

Applicable label: Self-adhesive labels, Self-adhesive film, electronic supervision code, bar code, etc.

Applicable product: Required to be labeled on the Circumference of surface or other Curved surface.

Applicable industry: Food and Beverage industry, pharmaceutical industry, cosmetics industry, chemical industry, electronic industry, metal industry, plastic and other industries.

Application examples: PET round bottles, plastic round bottles, glass round bottles, Canned food bottles, wine bottles, and other special shaped bottles, according to customer's requirements.

We can supply you the optional rotary table for your reference, which can be connected directly before the labeling Machine, the operators can put the bottles on the rotary table, then the rotary table will send the bottles to the labeling machine to the labeling machine automatically.

We can also supply you the code machine for your reference, to print production date and batch number, shorten the bottle packaging process, improve the production efficiency.

The Features  of the label applicator

With widely applicability, which can labeling on the whole or the half of the round bottles, if you want to change the type of the bottle, the adjustment is very simple;

With high labeling quality, which adopts high density sponge belt to smooth the labels on the bottles, after the rolling, there is no wrinkles, improve packaging quality;

With flexible labeling application,  the bottles are vertical when labeling, we use the split device to separate the bottles, the machine can operate independently, can also connect with the other machines, such as the filling or capping ;

With intelligent control system and automatic photoelectric tracking function, if there is no product, the machine will not labeling on it, it can correct the labels and detect the signal of the label automatically, so as to prevent missing labels and the waste of the labels.

According to your requirements to adjust the labeling speed, the delivery speed, the bottles split speed.

With high labeling accuracy, adopts the electronic eye detection, the PLC system control the step motor to send the labels, which precision is very accurate;

High stability, the control system is consist of Delta PLC, Weinview touch screen and Keyence sensor, which can support the equipment operate for a long period;

The touch screen operation interface makes the parameter adjustment simple and quick, easy to operate;

Most part of it adopts stainless steel and aluminum alloy manufacturing materials, with novel appearance and compact structure achieve the production standard;

With fault alarm function, production count function, reminding if the setting number reached, parameter setting protection function, which makes the production management easy and convenient.

The technical parameters

n          Labeling Speed: 0-200 pcs/min

n          Applicable Labels: core diameter 76mm, outside diameter 300mm

n          Applicable Products: Diameter from 70mm-100mm, cylindrical products

n          Accuracy error:  ± 0.5mm

n          Voltage: 220V  50/60HZ   250W

n          Weight: 220kg

n          Boundary Dimension: 1500mm×600mm×1400mm

Configuration List

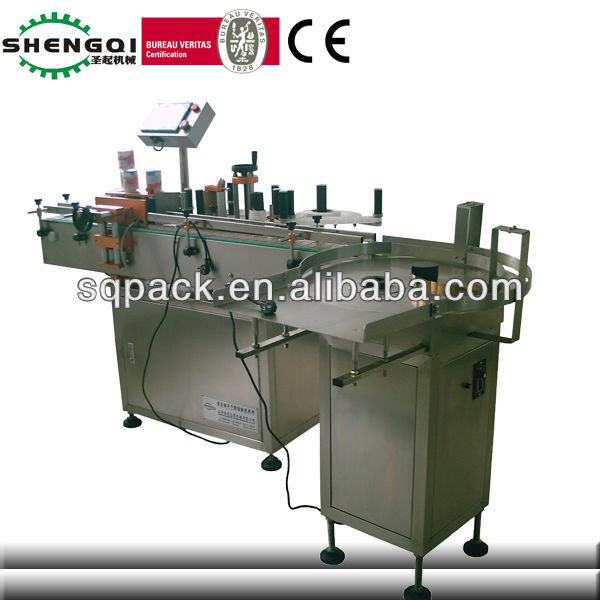

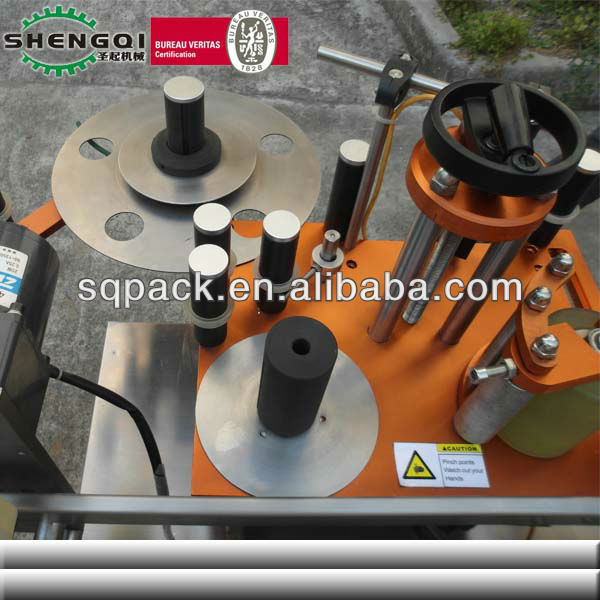

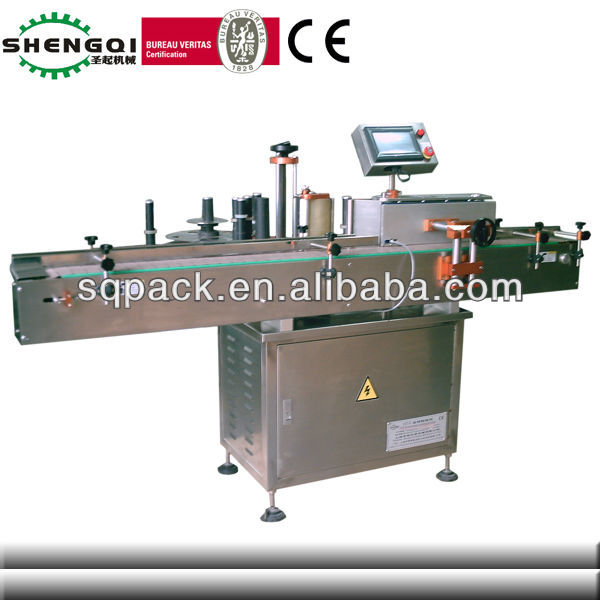

The picture show for your reference

hami MELON juice bottles self adhesive labeler
