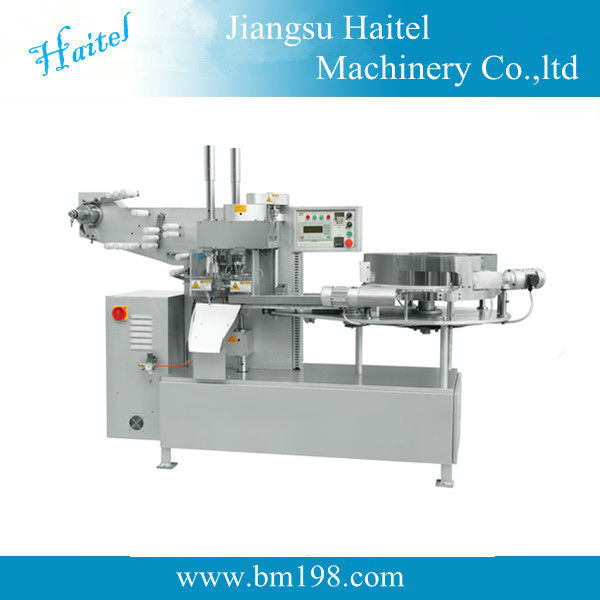

lollipop candy producing and packing machine,China Haitel price supplier

T ECHINCAL DATA:

HTL-400 Production line capacity: 200-350kg/h

Lollipop size:φ11-φ33mm

Lollipop weight: 4 -20g/piece

Forming speed:  3 00-600pcs/min.

Motor power: 380V    15   KW

Di mension:20000×2000×1700 mm

MAIN PROCESSING DIAGRAMM:

Melting sugar  →  Transmission sugar liquid →  Boiling sugar in vacuum  machine →  Cooling  sugar dough →  Batch  roller  → Rope sizer  →  Die f orming machine  →   Elevator and c ooling  lollipop →  Packing machine

 DETAILS OF EACH MACHINE:

The production line is a combination of Batch roller, Rope sizer, Forming machine, Elevator and cooling cabinet, as electrical parts of full production line are centralized control, easy to control operations.

1. Batch roller has automatically heating and keep warming system, it can be both positive and negative direction of turning, so that rope out of a more-shun. ,it also can automatically rise and fall, a key to solve the sugar coming out speed, and ease of coordination with the Rope sizer.

2. Rope sizer is also with automatic temperature control system, there is no waste after starting, it suitable for all kinds of sugar, pull plate crescent mechanical processing to prevent the rope slipping, so that the sugar rope come into forming machine in accurate position .

3. Forming machine has automatic visible bucket with the acrylic rods and stainless steel combination, according to the needs of users can adjust the length of the rod ,at the same time user is able to see the number and effective insert sticks, it’s easy for user adding sticks.

The machine insert sticks instruction, it’s also use adjustable device, the length of stick meet customer needs, the machine mould retreat cam uses the advance international top material made (life-long maintenance-free)

Mould has automatic clean-up water dish, easy to clean up every day, without prejudice to the motor, do not pollute the environment. Mould forming cavity in a 40-chrome treatment, make it smooth wear-resistant, forming rod punch with a hard wear-resistant copper, it’s much more better for candy forming and stripping.

4. Elevator conveying belt is made of imported European food-grade PU belt, above machine with automatic cold device, the elevator is fast speed, deformation less sugar, fast delivery and so on. Machine height can be adjusted.

5. Cooling cabinet is made of w idening of stainless steel, top with 2 sets of high-powered fans, cooling and feeding candy. Method used under the 360 ° rotating step by step. Both sides door have pellucid windows, you can see the cooling of the working process. The machine is divided into five layers between each layer can be adjusted to facilitate the user to adjust the speed blanking to ensure the candy cool down well.

The production line is a combination of Batch roller, Rope sizer, Forming machine, Elevator and cooling cabinet, as electrical parts of full production line are centralized control, easy to control operations.

1. Batch roller has automatically heating and keep warming system, it can be both positive and negative direction of turning, so that rope out of a more-shun. ,it also can automatically rise and fall, a key to solve the sugar coming out speed, and ease of coordination with the Rope sizer.

2. Rope sizer is also with automatic temperature control system, there is no waste after starting, it suitable for all kinds of sugar, pull plate crescent mechanical processing to prevent the rope slipping, so that the sugar rope come into forming machine in accurate position .

3. Forming machine has automatic visible bucket with the acrylic rods and stainless steel combination, according to the needs of users can adjust the length of the rod ,at the same time user is able to see the number and effective insert sticks, it’s easy for user adding sticks.

The machine insert sticks instruction, it’s also use adjustable device, the length of stick meet customer needs, the machine mould retreat cam uses the advance international top material made (life-long maintenance-free)

Mould has automatic clean-up water dish, easy to clean up every day, without prejudice to the motor, do not pollute the environment. Mould forming cavity in a 40-chrome treatment, make it smooth wear-resistant, forming rod punch with a hard wear-resistant copper, it’s much more better for candy forming and stripping.

4. Elevator conveying belt is made of imported European food-grade PU belt, above machine with automatic cold device, the elevator is fast speed, deformation less sugar, fast delivery and so on. Machine height can be adjusted.

5. Cooling cabinet is made of w idening of stainless steel, top with 2 sets of high-powered fans, cooling and feeding candy. Method used under the 360 ° rotating step by step. Both sides door have pellucid windows, you can see the cooling of the working process. The machine is divided into five layers between each layer can be adjusted to facilitate the user to adjust the speed blanking to ensure the candy cool down well.

Finished goods

Cert i fication

 Exihibition

 Workshop

  Foreign customers

  Jiangsu Haitel Machinery Co., Ltd

Add:   Taidong Industrial Zone, Dongtai City, Jiangsu Provice,P.R.China

Tel: 0086-515-85216388                                Fax:0086-515-85270398

Web: www.usahaitel.com                                 www.bm198.com
