Lollipop machine in snack machines,China YIXUN price supplier

Lollipop machine in snack machines

FOB Price:Price can be negotiated

Production Capacity:30 Set/Sets per Month We can offer you

Update Time:2014-09-25

Contact Supplier

Product Description

lollipop machine in snack machines
1.Compact Structure, Long Service Life
2.Output:300kg/h(two rows)
3.PLC Control, ABB Motor

a. Lollipop Candy Machine in Snack(CE, ISO approved):

1. Compact Structure, Long Service Life
2. Output:300kg/h
3. PLC Control, ABB brand motor

b. Function

(1) Continuous vacuum syrup cooking and automatic temperature control.

(2) Neat and clean appearance, reasonable structure.

(3) High transparency, easy and convenient operation.

(4) It can be equipped with pigment, FLAVOR and acid liquor quantitative charging mixing device.

c. Technological Process

Sugar, Grape syrup, Spice Mix → Sugar melting pot → Syrup pump → Syrup storage tank → Vacuum continuous micro-film Cooker → Multi Function Lollipop Servo depositing Unit Machine(depositing, cooling, forming) → Packaging

d. Parameters:

produtction capacity	steam requirement	consumption	pressure	compressed air requirement	consumption	pressure	toatal power
300kg/h		300kg/h	0.2~06mpa		0.2m ^{3 _/min}	0.4~0.6mpa	13kw

produtction capacity

steam requirement

consumption

pressure

compressed air requirement

consumption

pressure

toatal power

300kg/h

0.2~06mpa

0.2m ^{3 _/min}

0.4~0.6mpa

13kw

e. Main machines

-----> ---

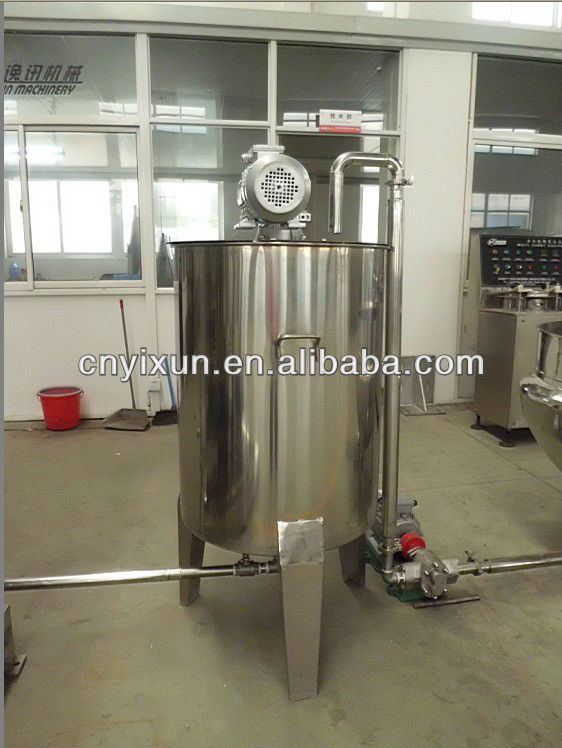

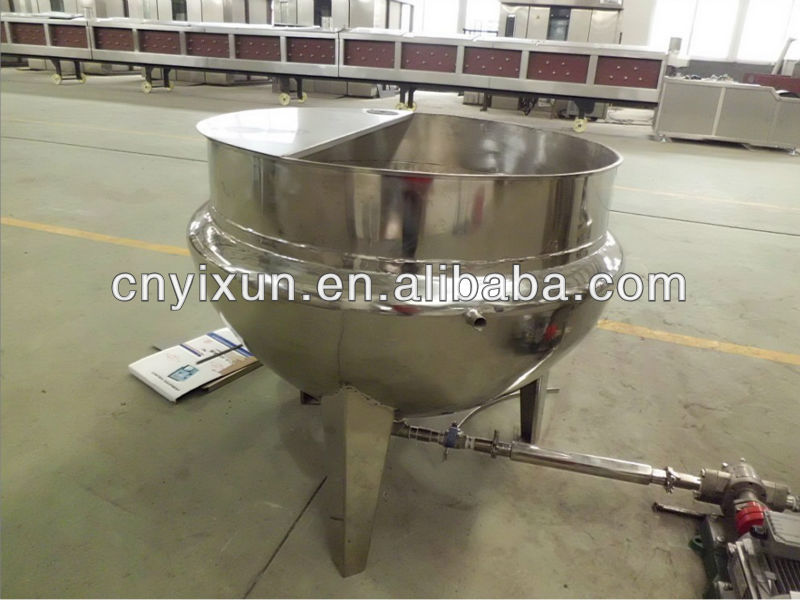

sugar melting pot storage tank microfilm syrup cooker

-----> ---->

depositor part stick pluging machine lollipop packing machine

f. Lollipop Candy Moulds

g. the samples of the lollipop candy:

h. Contact information:

Your visit will be warmly welcome.

Any questions, please do not hesitate to ask me!

Place of Origin:	Shanghai China (Mainland)	Brand Name:	YIXUN	Model Number:	300
Application:	Candy	Certification:	CE , ISO	Production capacity:	300kg/h
Steam consumption:	300kgs/h	Steam pressure:	0.2-0.6mpa	Compressed air consumption:	0.2m3/min
Compressed air pressure:	0.4-0.6mpa	Total power:	13kw

Company Profile

Name: Shanghai Yixun Machinery Manufacturing Co., Ltd.

Main Products: Food Machinery (Biscuit Line,Candy Production Line,Cake Line,Bread Machinery,Chocolate Production Line,Cookies Machines)

Business Type: Manufacturer, Trading Company

Total Employees: 51 - 100 People

Established Year: 2009

Main Markets: Africa, Domestic Market, Mid East, South America, Western Europe

Address: No.1099, Wuxing Zhongxin Road, Nanqiao Town

Shanghai Yixun Machinery Manufacturing Co., LTD is specialized in providing complete food plants on processing and packaging of biscuit,cake,candy,cookies, bread, chocolate and so on.
Thanks for our technical and development team with rich experiences for many years and more than 30 whole production lines. Yixun Machinery is capable for executing on turn-key base with capacity ranging from 50kg/h ~1200kg/h for different varieties for biscuit, candy, cake, cookies, bread etc. Due to our continuous investment on R&D and upgrading in industrial application year by year, Yixun Machinery had formed its own unique and beneficial characters in design and process technology. All the production lines are manufactured strictly under guideline of ISO 9001. With our high level management, Yixun Machinery had awarded CE certificate in the biscuit production line (both soft and hard), soft and hard candy production line, cake production line and bread production line.
Besides provide single equipment, we can also provide whole solution for the production line. With the highly educated staff who obtained BA degree and Ph.D in majors of Food Engineering and packaging machinery, which allows Yixun to be able to designing, developing, manufacturing, installing, operating as well as technical training to customers and competent after sales services of the whole line.
Till now, our products have been exported to USA, Canada, Korean, Poland, North Korea, Britain, Turkey, Japan, Kazakhstan, Ukraine, Russia, Albania, Costarica, Sri Lanka, Israel, Cyprus, Uzbekistan, Thailand, Egypt, India, Pakistan, Peru, Brazil etc.
We formed our own insight for biscuit and candy processing industry and our solutions are verified successfully for customers. Yixun are always ready and expecting chances to serve you at home and abroad. more
