Lollipop stick making machine production line|Drinking Straw Extruder Machine|Lollipop stick machine,China gelgoog price supplier

Lollipop stick making machine production line|Drinking Straw Extruder Machine|Lollipop stick machine

FOB Price:Price can be negotiated

Production Capacity:100 Set/Sets per Month

Payment Terms: US $2,000 - 4,000 / Set

Update Time:2024-09-06

Contact Supplier

Product Description

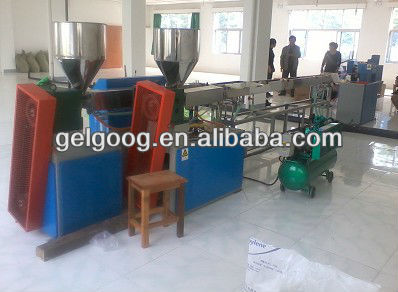

lollipop stick making Machine production line
This line is used for producing Lollipop stick with high capacity

Lollipop stick making machine production line|Drinking Straw Extruder Machine|Lollipop stick machine

Contact :Lily Feng ,Mob:0086-18790255066,,Tel:0086-371-86110690 Fax:0086-371-86110692 Skype:gelgoog6

Technical Parameters:

Apply power : 380v/3P/50Hz

The resin used:PP, PE Pellets

Highest extrusion capacity:25/30kg/h

Products diameter Specifications:2~13mm

Length range of products:5~500mm

Center height of the extruder: 950mm

Operational direction:From right to left

Equipment components:

1.50 single-screw extruder:1 set

Screw diameter:50mm

Screw aspect ratio:28:1

Screw configuration:PP, PE special type

Screw screw barrel material:38CrMoAiA

Screw barrel nitriding depth:0.4-0.7mm,Brittleness is not greater than 2

Screw barrel screw Origin:Zhoushan

Drive motor power:7.5Kw

Speed mode:VVVF

Inverter:7.5Kw

Reducer structure:Standard special type

Heating methods:Electric heating

Heating power:7.44Kw

Heating zone:Zone 3

Temperature Control Mode:Automatic temperature control

2.25 single-screw extruder:2 sets

Screw diameter:25mm

Screw aspect ratio:20:1

Screw configuration:PP, PE special type

Screw screw barrel material:38CrMoAiA

Screw barrel nitriding depth:0.4-0.7mm,Brittleness is not greater than 2

Drive motor power:0.75Kw

Inverter:0.75Kw

Heating methods:Electric heating:

Heating power:2.58Kw

Heating zone:Zone 3

Temperature Control Mode:Automatic temperature control

3.Three-color pipe mold:1 set

Mold material:Molds for alloy steel

Mold structure:The double hollow inner flow channel

Sizing sleeve material:Tin bronze

Mold heating power:1.66Kw

4.Cooling tank:1 set

Adjustment method:Around, up and down the three-dimensional adjustment

Material:Stainless steel

Effective length:3500mm (can be customized)

Cooling method:Immersion

Drying methods:Gas-blast

Vacuum device:Can be customized

5.Cutting Machine roller traction:one set

Traction rollers:PU modified rubber

Adjustment method:Manual

Traction motor power:0.75Kw VVVF

Cutting mode:Rotary cutting

Cutting motor power: 0.75Kw VVVF

Length,Width,Height,Weight

	Length	Width	Height	Estimated weight
Extruder	2200mm	1500mm	1500mm	700KG
Sink	3500mm	500mm	1200mm	100KG
Drag and cutting machine	1300mm	800mm	1300mm	200KG

Place of Origin:	Henan China (Mainland)	Brand Name:	gelgoog	Model Number:	GG
Condition:	New	Lollipop stick machine:	Drinking Straw Machine
