machine used in making chewing gum

FOB Price:Price can be negotiated

Production Capacity:3 Set/Sets per Month

Payment Terms: US $2,000 - 60,000 / Set

Update Time:2024-07-31

Contact Supplier

Product Description

1.Machine used in Chewing Gum
2.Multi-functional Mixer
3.Vacuum/ high pressure
4.Frequency control
5.CE,ISO9001,ISO14001

Chewing Gum Machinery - Kneader

1. Company profile

Foshan Nanhai JCT machine & equipment Co., Ltd. is one of the leading companies which speciallize in manufacturing the mixers & reactors.The company is loacted in the center of Nanhai District, Foshan city which is only 1 hour driving to the Guangzhou Baiyun airport.Founded in 2005,the company has a 4,000 sqm factory & an independent office building. Besides,the engineer devolted over 20 years designing & manufacturing the machines.

2. Introduction

Kneading machine is an ideal equipment, design for mixing, kneading, crushing, dispersing high viscosity plastic materials, and has good performance in uniform mixing, no dead ends and high efficiency kneading . It is widely used in many industries: high viscosity sealant, silicone rubber, CMC, adhesive, also used in batteries, ink, pigments, dyes, pharmaceuticals, resins, plastics, rubber, cosmetics ect.

Kneading mechanism is classified into three types: vacuum, pressure and standard atmosphere .Heating/cooling system consists of heating/cooling jacket and outer coil, works by steam, thermal oil and hot water, water cooling, with hydraulic cylinder turn and cover. Discharging can be hydraulic cylinders dumping, discharge valve or screw extrusion. A variety of equipments can be installed on for safety, measurement, control records, etc. Mixing cylinder and the material contact parts are made of stainless steel to ensure the purity of product. Shaft seal is vacuous structure.

3.CHARACTER:

1) Available models normal pressure, high pressure and vacuum.

2) Temperature adjustment: heated by oil, steam or electricity, cooled by water.

3) Discharge method: tilt dump, bottom dump and screw discharge.

4) The seal of shaft agitator is adopted with unique balance construction of vacuum box, Which owns patent.

5) The cover is controlled by hydraulic system.

4.Technical parameters:

Model	Chamber Volum(L)		Drive motor power (KW)	Mixing Speed (rpm)	Discharge mode			Heating
Model	Full volume	Feeding amount	Drive motor power (KW)	Paddle fast / slow paddle	Optional parameters			Optional parameters
LXNHZ-5	5	3	2.2-4	75/50	Manual / Hydraulic tilting			Running Hot oil	Electrical heating	Pressure Steam
LXNHZ-20	20	12	3-5.5	63/42
LXNHZ-50	50	30	4-7.5	63/42
LXNHZ-100	100	60	5.5-7.5	43/29
LXNHZ-200	200	120	7.5-15	43/29	Hydraulic tilting	The bottom pumping	Screw extruding
LXNHZ-300	300	180	11-18.5	43/29
LXNHZ-500	500	300	18.5-30	43/29
LXNHZ-1000	1000	600	22-55	32/22
LXNHZ-1500	1500	900	30-90	32/22
LXNHZ-2000	2000	1200	45-110	32/22
LXNHZ-3000	3000	1800	55-130	33/22
Remarks: 1,Temperature range: 0-300°, 2, Pressure range:-0.1-0.6MPa, 3,Frequency inverter control the main motor speed,if necessory.

5. Products pictures

Apply to: Chewing gum base kneading, rubber base kneading, DOW Corning, Silicone sealant, adhesive, ink, dope, pigment, dye, carbon, CMC, cosmetic, foodstuff, battery, medicine, plastic and other viscosity fluid etc.

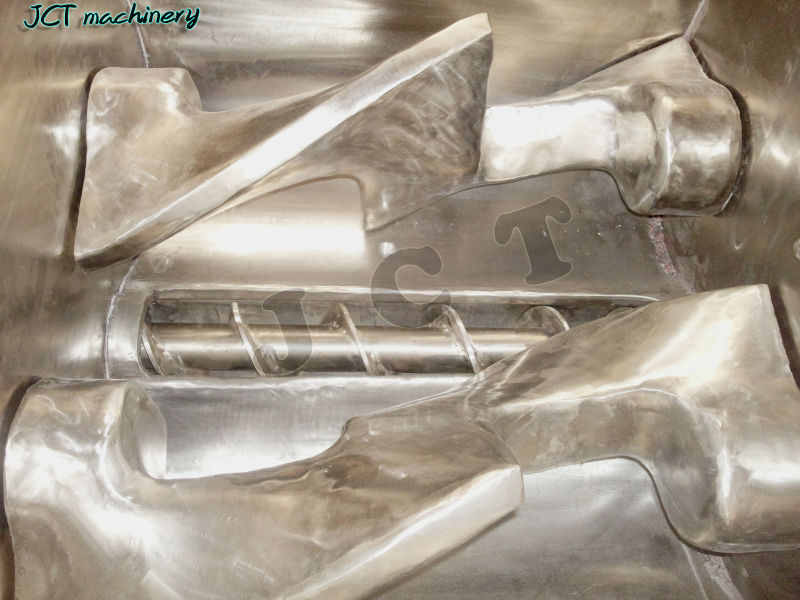

5. Pictures of chewing gum kneading machine

6. Contact information

If you got interested, pleae just feel free to contact us:

The chewing gum machinery - kneading machine!

JCT-- your best choice!

...

Condition:	New	Mixer Type:	Agitator	Product Type:	chewing gum
Application:	Viscous Fluid	Additional Capabilities:	Milling	Place of Origin:	Guangdong China (Mainland)
Brand Name:	JCT	Model Number:	NHZ-500l	Max. Loading Capacity:	500l
Voltage:	380V	Power(W):	45KW	Dimension(LWH):	250015001800
Certification:	ISO9001,ISO14001,CE	Warranty:	2 yeaars	After-sales Service Provided:	Engineers available to service machinery overseas
weight:	5000kg	motor:	anti-explosion	material:	stainless steel
vacuum degree:	-0.096MPa	main motor:	150kw	color:	all kinds

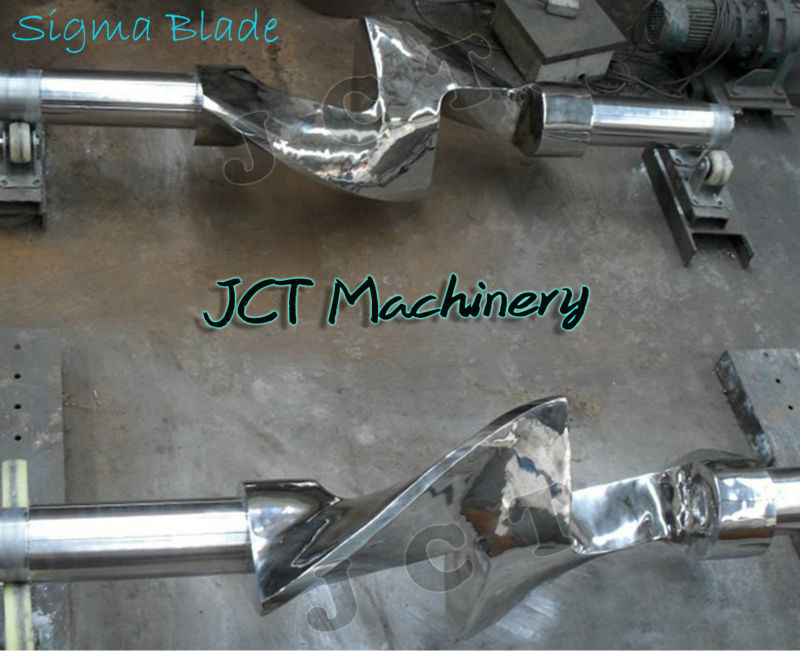

products:	rubber,paint,bubble gum, pharmacy, food, battery, resin,cosmestics	paddle:	two sigma blade	paddle speed:	42rmp
discharging way:	hydraulic pumping
