making production line choose construction\tire rubber granule linear vibrating screen,China XinXiangTongXin price supplier

                             Xinxiang Tongxin Machinery Limited Liability Company

ZXS series light duty linear vibrating screen

1.Brief introduction of ZXS series light duty linear vibrating screen:

It using the vibration motor as vibration source, the vibration, the material being thrown up

on the screen, at the same time forward in a straight line, material from the feeder evenly

into the material into the screen, screen material, produce several specifications through

multilayer screen objects, respectively, from the respective outlet.

2.Application scopeof ZXS series light duty linear vibrating screen:

It  is widely used in  powder  and  granular materials  selection and classification,such as: building

materials , plastics ,  abrasives ,  chemicals ,  pharmaceuticals ,  food ,  carbon ,  fertilizer , electricity ,
metallurgy materials , coal preparation ,  mineral processing , suitable for  medium, finegrained

materials  can be dry, wet classification or dehydration sculping and  off the mud  and other

occasions.Grading up to 200 mesh size.

3.Features of ZXS series light duty linear vibrating screen :

1) High efficiency, any powder type, particle can be screening.

2) Changer easy, simple, easy to clean.

3) Less energy consumption, low noise

4) Mesh is not blocked, sealing well, powder does not fly, can be screened up to 200 mesh

    sieve, or 0.074mm.

5) Impurities and coarse materials automobile exhaust can be a continuous operation.

6) Screen box has two kinds of wood and steel, lightweight and durable, easy to change network.

7) Simple structure, easy maintenance.

8)  No dust spilling,automatic discharge, more suitable for pipelining

9) Can reach a maximum six-screen machines, it is recommended to use three-tier.

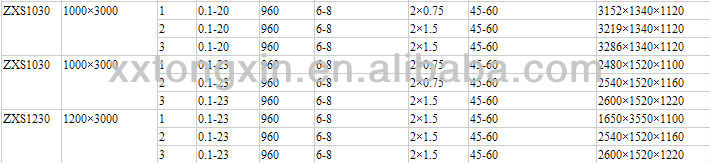

4. Main technical parameter of  ZXS series light duty linear vibrating screen :

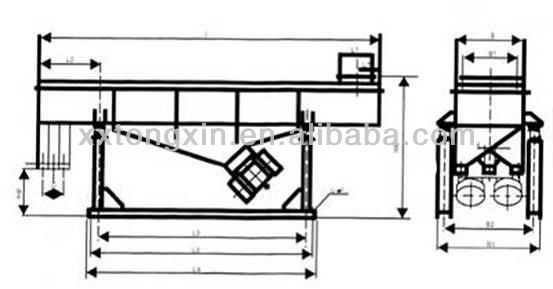

  5. Outside dimension of ZXS series light duty linear vibrating screen :

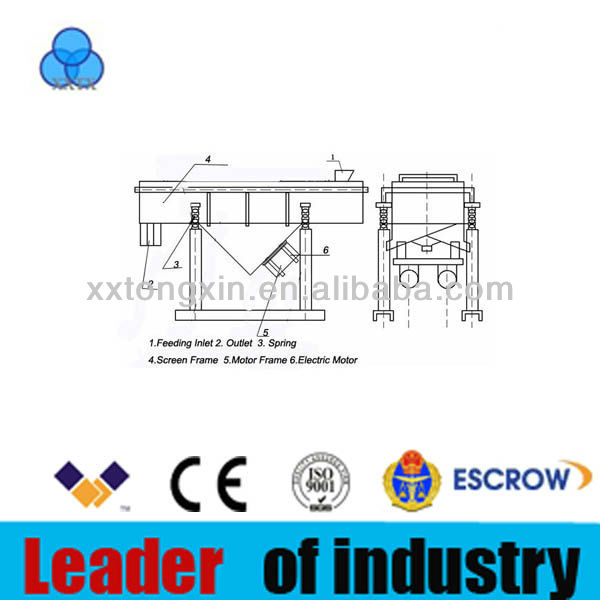

Standard Model Size Map of ZXS series light duty linear vibrating screen

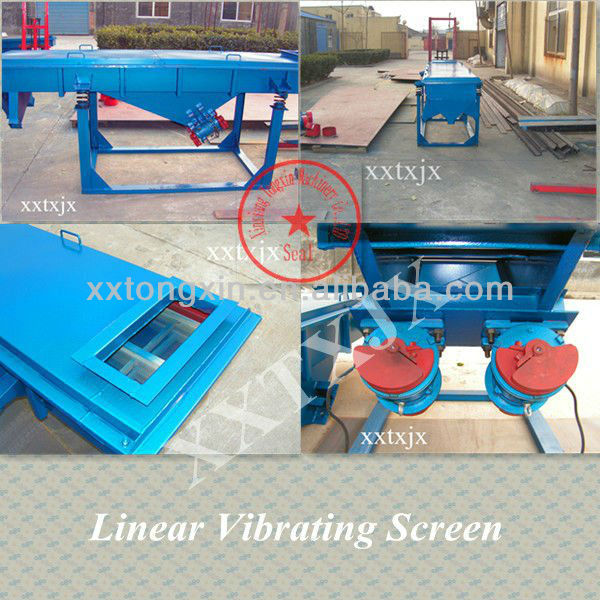

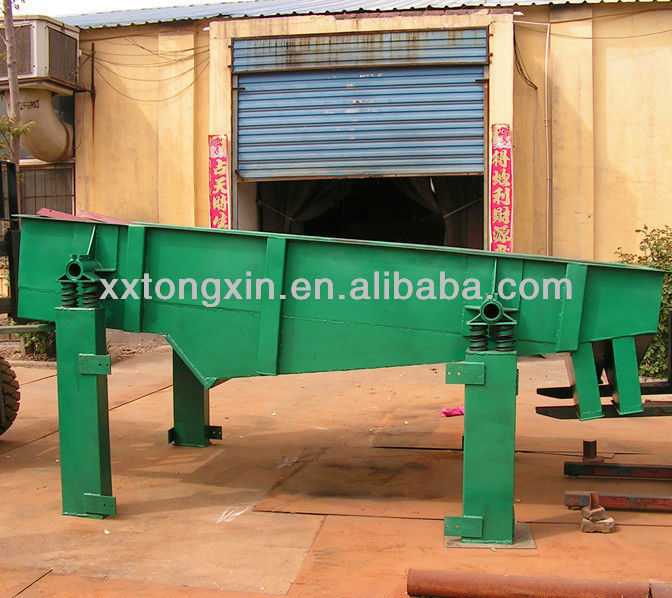

 6.Prduction site photos ZXS series light duty linear vibrating screen :

7.Our company:

My company is a professional manufacturer of vibrating screen, testing

standard sieve ,mesh sieve screen, Feeding Machine , lifting equipment ,

Conveyor ,  rotary screen separator, shaker screen vibrator mining by sieve ,

filter  screen, sieve test machine manufacturers , twenty years professional

foundry, screening and detection equipment integrated manufacturing,

quality assurance!

our customes visit us:

8.Certification:

9.Note:

Can be customized according to different requirements of customers.

10.Transportation:

11.Aftersale service:

Engineers available to service machinery overseas. Starting on the day of the

received products, within a year, if there is quality problem can free replacement

new products, if because of the improper use of your product damaged, we will

solve the problem for you through online video.

12.   If you feel satisfied about our   ZXS series light duty linear vibrating screen .C onnect us quickly!!!

website:    http://xxtongxin.en.alibaba.com
