Microbrewery Equipment/Small Beer Brewery Equipment/Beer Plant:
1. customized
2. Simens PLC touch panel
3. beer plant
Microbrewery Equipment/Micro Beer Brewery Equipment/Beer Plant
Name: Microbrewery Equipment/Micro Brewery Equipment/Beer Plant

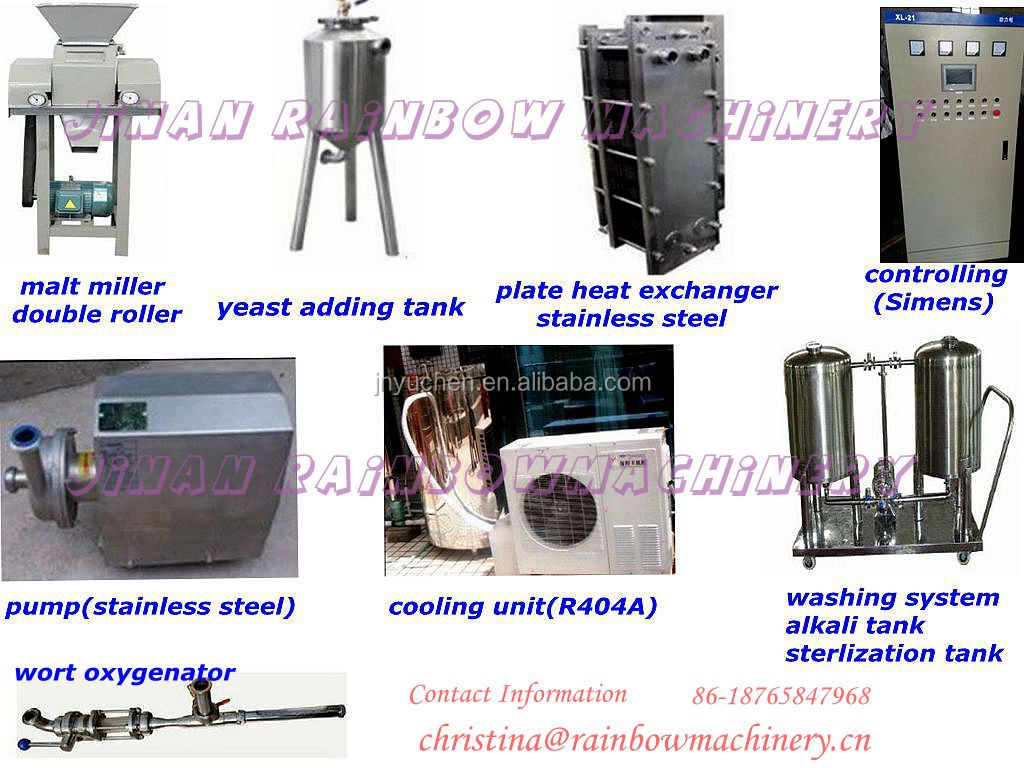

Systems Content: Malt Miller, Brewhouse System, Fermenting System, Cooling System, CIP Washing System, Simens Controlling System, Spare Parts
Material Details: Inner Wall 3mm SUS304, Outer Wall: 1.5mm mirror shine stainless, Insulation: 100mm polyurethane
| Items |
E quipment |
S pecification |
Quantity |
| Malt miller |
Malt miller |
2 00kg /hour |
1 |
| Brewhouse system |
Mash tun&lautering tun |
1000L |
1 |
| Brew kettle&whirlpool |
1000L |
1 |
|
| Hot liquid Tank |
1000L |
1 |
|
| Plate heat exchanger |
8m 2 |
1 |
|
| Pump |
3m ³ / h |
1 |
|
| Fermentation system |
Fermenter |
1000L |
6 |
| Y east adding tank |
50L |
1 |
|
| Wort oxygenator |
1 |
||
| Cooling system |
Glycol water tank |
15 00L |
1 |
| Cooling compressor |
5hp |
2 |
|
| Pump |
3m ³ / h |
1 |
|
| Filter system |
Kieselghur filter machine |
|
1 |
| Bright beer tank |
1000L |
1 |
|
| CIP washing system |
Alkali tank |
5 0L |
1 |
| S t erilization tank |
5 0L |
1 |
|
| Pump |
3m ³ / h |
1 |
|
| Control system |
Simens PLC control box |
|
1 |
| S p are parts |
All spare parts |
||
Before you inquire, please confirm questions below:
1-What capacity do you want?
2-What heating source do you prefer, electric or steam?
3-Where will you use this beer equipment, pub or home or factory?
4-What material do you want for the brewing tank(mash&lautering tun, brew kettle&whirlpool ), red copper or stainless?
5-What kind of beer you want to ferment, lager or ale?
1- Automatic system : Use Simens PLC system to control the brewing process. By touching the screen, you can control the temperature of mashing and fermenting process.
2- Considerate service : We can provide services such as product design( we recommend suitable equipment as per your budget), beer tank layout, installation and training of beer fermentation...
3- Customize: capacity , voltage(220v or 380v or other electricity voltage ), material(stainless steel, red copper, rose copper, etc.), dimension(length, height, width), heating source(electricity, steam)
4- Relevant equipment can be provided : bottle filling and washing machine, keg filling and washing machine, label machine, keg...
5- Brew all kinds of beer : pale beer, brown beer, stout beer....8- Tanks' specification : inner wall: 3mm stainless steel 304, outer wall: 1.5mm mirror shine SUS board/red copper, insulation: 100mm polyurethane
1. it has 2-vessel brewhouse system (mashtun&brew kettle, lautering&whirlpool tank) and 3-vessel brewhouse system(mash&lautering tun, brew kettle&whirlpool tank, hot water tank) and seperate 4-vessel brewhouse system , you can chose which one you prefer.
2. Frenquency convertor is installed in the mixer and mashing pump so as to make mashing process efficiency and get enough sugar.
3. Reserve Button and Simens touch panel combined to control the fermentation process.
2. Other parts
| Processing: |
Fermenting Equipment,fermentation,small beer brewery equipment
|
Condition: |
New
|
Place of Origin: |
Shandong China (Mainland)
|
| Brand Name: |
RAINBOW
|
Model Number: |
RM-1000L
|
Processing Types: |
Alcohol
|
| Voltage: |
380v, 50hz, 3 phases
|
Power(W): |
78kw
|
Dimension(L*W*H): |
based on equipment founctions
|
| Weight: |
2500kg
|
Certification: |
CE
|
Warranty: |
3 year
|
| After-sales Service Provided: |
Engineers available to service machinery overseas
|
material: |
stainless steel
|
Processing type: |
microbrewery equipment
|
| relevant product: |
beer plant
|
heating source: |
electric
|
ferment formula: |
provided
|
| processs material: |
malt
|
|
|
|
|
|
|
|
|
|
|
|
|
