MJ-250 Automatic alu-pvc chew gum package machinery,China MJ price supplier

MJ-250 Automatic alu-pvc chew gum package machinery

FOB Price:Price can be negotiated

Production Capacity:25 Set/Sets per Month

Payment Terms: US $12,500 - 13,500 / Set

Update Time:2021-01-06

Contact Supplier

Product Description

MJ-250 Automatic alu-pvc chew Gum package machinery
fully automatic
35-60 punches per minute
button operation

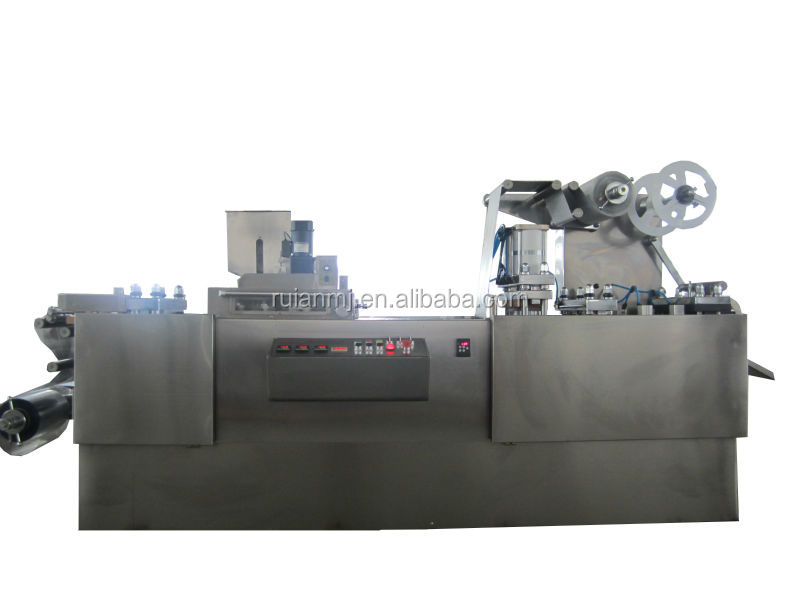

MJ-250 Automatic alu-pvc chew gum package machinery

Product Description

1. Usage

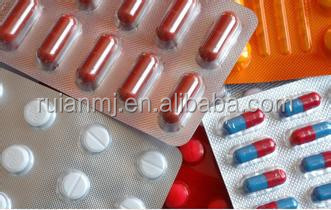

This machine is suitable for pharmacy, medical machinery, foodstuff, electric, hardware industry’s capsule, tablet, syringe, ampoule, medical apparatus, food, electric appliance, hardware etc blister package.

2. Special Features:

1).The machine body adopt guide track structure instead of housing window localization. Moulds such as forming, heat seal, punch can be adjusted willingly on the guide track, suitable for different size plates, easy adjust, good adaptability, high accuracy.

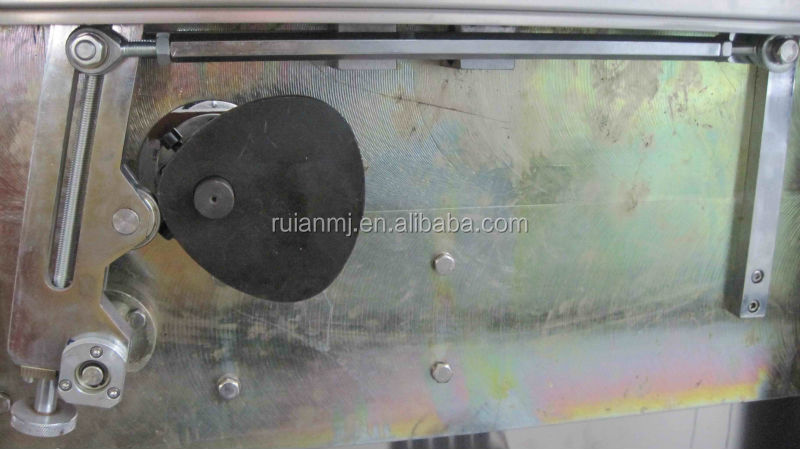

2) Mechanism hands for traction, stroke adjustable, easy operation, stable running.

3) With parallelaxes bevel gears reducer, avoid loosen or slippage caused by chain or belt.

4) Mould location by pin, easy change mould.

5) Frequency converter speed change, punch frequency 6—35 adjustable

6) Adjustable operation panel, suitable for different plates, easy operation.

7) Aluminum foil reel adopt stable device, cancelled the affection of pull force change with the ALU foil reel gradually diminish, thus it made a great role in synchronization.

8) The up and low moulds for heat seal mate each other completely, with multi level cylinder

compressing heat sealing, the net pattern show clearly, firm, and reach 100% seal.

9) Low heating temperature of up and low heating with aluminum alloy, finally make out the plump forming blister, specially suitable for packing of hot sensitivity medicines.

Main Parameters:

Punch Frequency	10—50 times/min 1—6 blister strips/time If Stroke> 80, Blister depth>10, not ensure 50times/min.
Capacity ( blister / h)	12000 ( standard 80*57mm, count on 5 blister strips/time, 50 times/min)
Max forming area and depth	24016026mm
Stroke	Standard 20—125mm, Max 160mm
Blister blister spec.	Standard: 80×57mm Ref spec: 80×57 95×65 103×43 120×43 (can be designed accord to user’s requirement)
Granules on each blister strip	Capsule: 10 granules (# 0, # 1) , 12 granules (#1, #2, #3) Tablet: 1—30 granules Abnormal material: special design
Air Pressure	>0.2m3 (self equip) Pressure: 0.4—0.6Mpa ( Equipped by buyer site)
Total Power	380v/220v 50Hz 6kw
Heating power	Up and lower forming: 2kw Heat seal: 2kw
Main Motor Power	1.5kw
Packing material	PVC: 0.15—0.5×250mm PTP ALU foil: 0.02—0.35×250mm Dialysis paper: 50—100g×250320mm Reel diameter: 70—76mm
Mould Cooling	Tap water or recycle water 60L/h
Overall size	2710×720×1600(L×W×H)mm
Weight of machine	1600kg

Packaging & Shipping

1. machine will be lubricated before shippment

2. the machine will be wrapped with film before shippment

3. the machine will be packed into wood case, suitable for sea shippement

Our Services

1. send you machine installation video to assist with machine installation

2. we have technician ready to send to your port for machine installation and operation training.

3. 24 hours on line service to help solve your problem.

Type:	Packaging Machine"> Blister Packaging Machine	Condition:	New	Application:	Food,Commodity,Medical,Chemical
Automatic Grade:	Automatic	Driven Type:	Electric	Voltage:	380V/220V
Power:	1.5kw	Place of Origin:	Zhejiang China (Mainland)	Brand Name:	MJ
Model Number:	MJ-250E	Dimension(LWH):	27107201600	Weight:	1800 kgs
Certification:	ISO9001, CE certification	Warranty:	12 month	After-sales Service Provided:	Engineers available to service machinery overseas
name 1:	MJ-250 Automatic alu-pvc chew gum package machinery	name 2:	automatic blister package machine	name 3:	automatic blister package machinery
name 4:	blister package machinery	name 5:	blister packing machinery	name 6:	candy blister packing machine
name 7:	candy blister package machine	name 8:	candy blister package machinery	name 9:	tablet blister packing machine
name 10:	tablet blister package machine
