Molybdenum sieve with 2 layers,China Dahan price supplier

Molybdenum sieve with 2 layers
FOB Price:Price can be negotiated
Production Capacity:100 sets per month
Payment Terms: FOB, CIF or you need
Update Time:2018-05-17
Product Description

 Principle

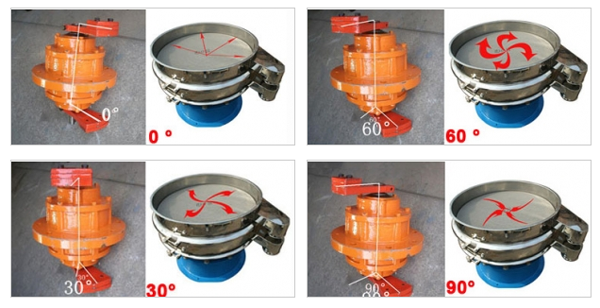

Molybdenum sieve with 2 layers, as a piece of powder material screening equipment, uses horizontal vibration motor as its vibration source. The horizontal vibration motor has an eccentric block at both their upper and lower sides. The eccentric blocks can generate a three-dimensional movement in horizontal, vertical, and inclined directions. By adjusting the phase angles of the upper and lower eccentric blocks, the materials on the screen can be change  the movement locus, achieving suitanle screening performance.
Molybdenum sieve with 2 layers


Features
1. The screening  percision of vibration sieve is excellent, and the blocking rate of the screening is less than 10% in average.
2. The movement locus and vibration amplitude are both adjustable. Any granular, powder,and serious materials can be roughly screened, finely screened, or just filtered according to the material applications.
3. The screening machine is 500-1800mm in diameter, and the overall size is quite samll. Wheels can be mounted on it for convenient moving.
4. The screen frame of the stainless steel vibration sieve is specially designed. It takes only 5-10 min for the screen changing. The stainless steel wire woven net is easy to clean and operate, while the life span is quite long.
5. Completely enclosed structure is adopted so the particulate matter polluction in the air is quite limited.
6. The discharging outlet can be rotated at 360°, facilitating the installation of the matching equipment .
7. The energy consumption of our vibration sieve is small, while the noise could reach as low as 73-80dB.
8. During the operation, if short circuit, phase loss or unstable voltage occurred, the motor will automatically cut off tht power supply and stop working. Thus the motor damage can reduced to an extremely low level.
9. The IP rating of the motor is IP65, which means the motor is dusproof, and waterproof. Besides, the motor is also heatproof and oil resistant.

Application

1. Chemical industry: resin, paints, industrial chemicals, cosmetics, paint, medicine powder.
2. Food industry: sugar, starch, salt, rice flour, milk powder, milk, egg, soy sauce, fruit juice.
3. Metal Mining: aluminum powder, lead powder, copper powder, ore, alloy powder, welding powder, manganese dioxide, copper powder, magnetic power, abrasive powder, refractory materials, kaolin, limestone, alumina, carbonate, heavy calcium, silica sand.
4. Pollution treatment: waste oil, waste water, wastewater dyeing, additives, activated carbon, etc.

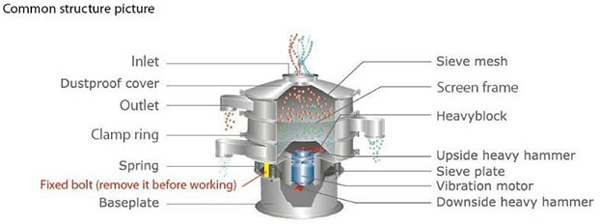

Structural diagram
Molybdenum sieve with 2 layers

Parameter

Model Power Diameter Motor speed Layer
DH-1000-2s 0.75KW 920mm 1440r/min 2


If you want to know more information about our product, please reference http://www.xxdahan.com



Company Profile
Name: Xinxiang Dahan Vibrating Machinery Co.,Ltd
Main Products: Rotary vibrating sieve, linear vibrating sieve, ultrasonic vibrating sieve, test sieve,vibrating motor, screw conveyor.
Business Type: Manufacture
Total Employees: 50 ~ 100
Established Year: 2008
Total Annual Revenue: US$1 Million - US$2.5 Million
Main Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe,
Address: People west road,Xinxiang city

Xinxiang Dahan vibrating machinery CO., LTD.is located people road. we have professional engineers to process and testing equipment. we are always producing high quality products. We have gained ISO9001:2008 .

Products are widely used in chemical, food, medicine, environmental protection, ceramic, foundry, construction, mining, abrasive, etc. Products are exported to Germany, Russia, Vietnam, Singapore, Indonesia and other European and American countries and East Asia, Southeast Asia all over the world.
