Multi-Function Automatic Horizontal Flow Chocolate Bar Packing Machine With CE,China SENIO price supplier

Horizontal Flow Chocolate Bar Packing Machine

• The whole machine adopts 30mm high-strength aluminum magnesium alloy  board structure.

• Main components:
  • German Busch vacuum pump.
  • Japan Omron computer controls.

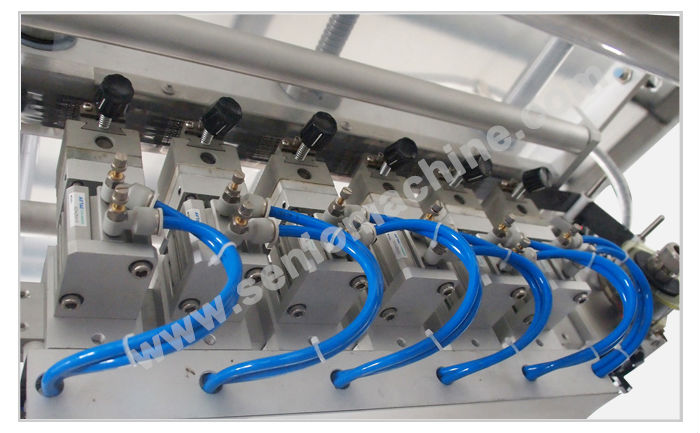

  • AirTAC Gas-moving system.

• The device has electricity lacking.

• Waste recycling system, it is beneficial to environmental protection.

Horizontal Flow Chocolate Bar Packing Machine

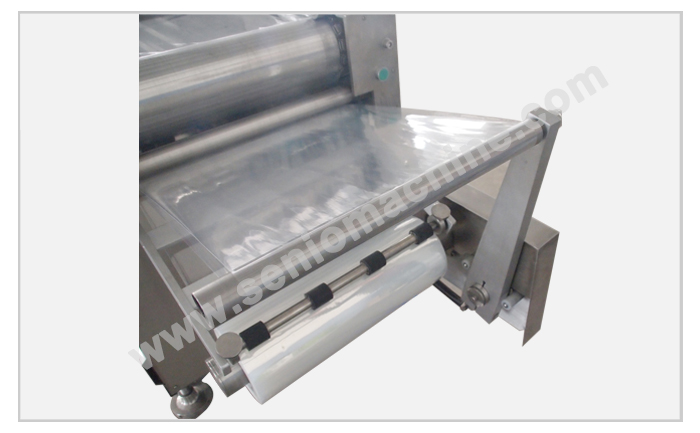

1. Bottom Film Feeding System

One bilge gas spindle is together with rollers. This system is steady for  lower film feeding.

2.   Bottom Film Forming system

This system include mould and heating board.Once the film stepped into  the working room, the bottom film can be formed according to the mould.

3. Feeding Material System
The material is fed automatically by the imported chain.

4. Printing Film System
This machine can be fitted with automatical printing system as customer' s request, packing date and other relevant parameters can be marked at a  time, do not need human marking. Working efficiency is raised.

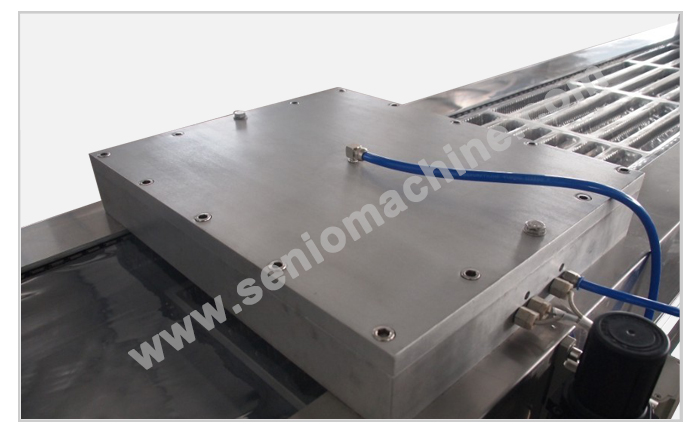

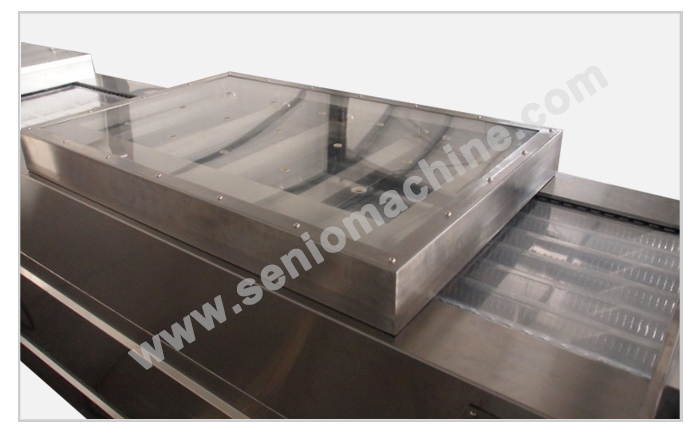

5. Vacuum and Sealing System
The original imported German Busch vacuum pump is used in this machine  with high pumping efficiency, high vacuum, low noise, stable and reliable  quality, long life and other notable features, pumping speed 200m3/h.  This system achieves vacuuming and sealing.

6. Cutting System
This machine adopts advanced transverse and slitting systems. It is can be intelligent adjusted by the touch screen and don't need to exchange.

7. Waste Recycling System
This machine waste recovery uses Taiwan origin fan, with stable  performance, reliable operation, it has long life, low noise  characteristics, and it is to ensure the health of the workplace  environment.

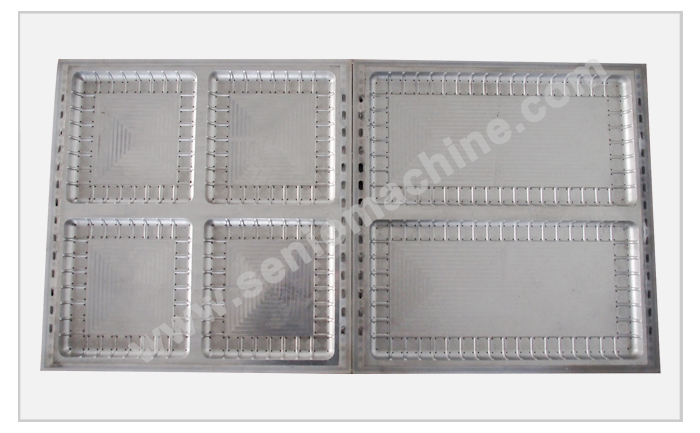

8. Mold Change
The mold can be customized. It's easy and fast to change the mold and  suitable for the use of multi-species, multi-standard packaging, which  greatly improve the machine use range.

1. Lower film feeding
2. Thermoforming tray
3. Loading area
4. Feeding material
5. Top film
6. Sealing vacuum gas station
7. Cutting station
8. Finished products & Recycling system

•   Guaranty: One Year
• One set of consumable Accessories will be provided with the machine.
• Before delivery, we will adjust the machine to fit for your product.
• Any question, you can mail/call us at any time. Our most experienced engineers are assigned to give consulting service, and always available  for dispatching abroad.
• All spare parts are always available for delivery.
• Manual is in English.
