New multifunction full automatic complete Stick Biscuit making machine line,China SkywinBAKE price supplier

Stick biscuit line is designed for: S tick biscuit, finger biscuit. Attached some stick Biscuits forming machine:



Stick biscuits samples as follows:









High quality with lower price

Practicability-Operability-Economy-Safety

Excellent service



The biscuit line consist of:



Vertical or  Horizontal mixer,100-500kgs/batch.



 Horizontal dough mixer (250kgs)

Suitable for mixing flour dough for biscuit and cake production, cream mixing and etc.

Special for hard and soft biscuit dough,  Twin direction spiral mixing Steel blade

Mixing speed: 23rmp/min

Mixing capacity: 250kg/batch

Mixing time: 15-25minutes/batch

Materials:  Stainless steel  304# 3mm thickness

SIEMENS electronic

Chinese famous brand GUOTAI motor and gearbox

Power: 12.5kw, Electric: 380V/220V/50Hz

Weight: 1800kg

Dimension: 1750x1700x1000mm







Vertical mixer 550kg







  Dough feeding system, included small dough truck, automatic tipper, dough cutting&transport machine, soft dough Conveyor belt.  3-roll combination sheeter; Laminator;



  This system has included one small dough truck, automatic tipper, one dough cutting and transport machine, and

soft dough conveyor belt. The horizontal dough mixer dump dough from mixing bowl to small truck, then place the truck
to automatic tipper and tilting truck to dump dough from dough truck to feeding hopper of dough cutting and sending
machine, cutting dough to small pieces then transporting by feeding conveyor to feeding hopper of three-rolls sheeter.
Gearbox use Chinese famous brand GUOTAI, bevel wheel with high drive efficiency,low noise and work stability and so on.
SIEMENS motor, high efficiency, low noise and long using life and so on. PU conveyor belt with baffle groove to carry
small pieces dough, belt thickness 1.5mm, rubber covered main roll. Cutting controlled by air pneumatic, YSC air cylinder.
Conveying frame use 2.0mm thickness Stainless steel, conveying belt support splint use 304 Stainless steel, Main driver
use direct drive, NSK bearing from Japan, Electric control: All driving speed controlled by frequency Conversion,
Transducer and Electronic element use SIEMENS brand, cover made by 1.2mm thickness 304 Stainless steel Working
width 1200mm, transport speed 11mm/min Power: 2.5KW, Total weight: 1750kg .





Three-roll Combination Sheeter



    Three sheeting rolls structure, double groove feeding rollers, PU conveyor belt, thickness 1mm, Gearbox use Chinese

famous brand GUOTAI, bevel wheel with high drive efficiency, low noise and work stability and so on. Motor:
SIEMENS brand, high efficiency, low noise and long using life and so on. Groove rolls diameter 300mm, sheeting rolls
diameter 300mm, high quality cooled rigidity cast iron rolls, the surface rigidity HRC58-62, working width 620mm.
Sheeting rolls and Conveyor belt controlled by one motor, Rubber covered main drive roller, Conveying frame use 20mm
thickness Q235 carbon steel, conveying belt support splint use 304 Stainless steel, Scraper thickness 0.2mm super thin,
Edge plate Q235 carbon steel thickness 28mm, Cover made by 1.2mm thickness 304 Stainless steel, Diameter 105mm
steel roller for PU conveyor belt, Support roller, transition scraper covered hard chrome, Main driver use chain drive, NSK
bearing from Japan, Electric control: All driving speed controlled by frequency conversion, Transducer and Electronic
element use SIEMENS brand, working width 1200mm, sheeting dough thickness 0-10mm, Power: 2.75KW, Dimension:
1490x1360x2180mm, Weight: 1965kg



  Horizontal Laminator



    Horizontal structure saving installed space and make the automatic feeding come true

  PU conveyor belt, 1mm thickness, Gearbox use Chinese famous brand GUOTAI,

  bevel wheel with high drive efficiency, low noise and work stability and so on. Motor:

  GUOTAI brand, high efficiency, low noise and long using life and so on. Feeding

  rollers diameter 220mm, sheeting roll diameter 220mm, groove on the surface of

  cast iron rolls, working width 600mm. Scraper 0.2mm super thin, Edge plate Q235

  carbon steel thickness 25mm, Cover made by 1.2mm thickness 304 Stainless steel,

  Feeding hopper use 3.0 thickness 304 Stainless steel, Sheeting rolls and Conveyor

  belt controlled by one motor, Rubber covered main drive roll, Conveying frame use

  15mm thickness Q235 carbon steel, conveying belt support splint use 304

  Stainless steel, Support roller, transition scraper covered hard chrome, Main

  driver use double rows chain, Chinese famous bearing, Electric control:

  All driving speed controlled by frequency conversion, Transducer and

  Electronic element use SIEMENS brand, Laminating width 620mm, 4-12layers,

  sheeting dough thickness 0-10mm, included crisp spreader machine

  Power: 3KW, Dimension: 2220x1130x2080mm, Weight: 2213kg



Hard biscuit forming machines, can be installed stick biscuit forming machine, printing biscuit machine(to make print biscuit), filling biscuit machine(after oven to fill chocolate inside of biscuit),



Injection machine







  Rotary Cutter



  Double forming rollers for hard biscuit, embossing and cutting in one roller, or

  Embossing in one roller and cutting in one roller, PU conveyor belt, thickness 1mm,

  Gearbox use Chinese famous brand GUOTAI, bevel wheel with high drive efficiency,

  low noise and work stability and so on. Two rubber rolls diameter 220mm for cutting,

  two rubber rolls diameter 160mm for cotton conveyor belt. Sheeting rolls and Conveyor

  belt controlled by one motor, Rubber covered main drive roll, Conveying frame use

  15mm thickness Q235 carbon steel, covered hard chrome, conveying belt support s

  plint use 304 Stainless steel, Edge plate Q235 carbon steel thickness 25mm,

  Support roller, transition scraper covered hard chrome, Scrap tray

  and cover made by 304 stainless steel, 1.2mm thickness, Main driver use

  synchronization drive, Chinese famous bearing, Electric control: All driving speed

  controlled by frequency conversion, Transducer and Electronic element use

  SIEMENS brand, Working width 620mm, sheeting dough thickness 0-20mm,

  One hard biscuit forming mould will be provided with machine

  Power: 3.7KW, Dimension: 1460x1000x1170mm

  Total weight: 800kg



  Rotary moulder for soft biscuit forming;



Double driver, rubber rolls and forming mould has different motor driver

PU conveyor belt, thickness 1mm, Gearbox use Chinese famous brand GUOTAI,

bevel wheel with high drive efficiency, low noise and work stability and so on.

Rubber rolls diameter 220mm, feeding groove rolls diameter 216mm, groove on

the surface of rolls. Scrapper adjusted separately, Conveying frame use 15mm

thickness Q235 carbon steel, covered hard chrome, conveying belt support splint

use 304 Stainless steel, Edge plate Q235 carbon steel thickness 25mm

Support roller, transition scraper covered hard chrome, Scrap tray and cover

made by 304 stainless steel, 1.2mm thickness, Main driver use double chain drive,

  rods distance 25.4mm, Chinese famous bearing

  Electric control: All driving speed controlled by frequency conversion

  Transducer and Electronic element use SIEMENS brand

  Working width 620mm, sheeting dough thickness 0-20mm,

  One Soft biscuit forming mould provided with machine

  Power: 4.75KW, Dimension: 1590x900x1250mm

  Total weight: 943kg



  Salt/sugar sprinkler;



  Belt Conveyor structure with brush spraying. PU conveyor belt, thickness 1mm.

  Gearbox use Chinese famous brand GUOTAI, bevel wheel with high drive efficiency,

  low noise and work stability and so on. Materials conveyor by PU belt

  Spraying materials: salt, sugar, sesame, nutlet etc. Spraying by brush

  Spraying capacity controlled by transducer. Brush and conveyor belt controlled by

  different motor, easy to adjusted, conveyor roll made by stainless steel.

  Full sprinkler structure made by stainless steel, Main driver use direct drive.

  Chinese famous bearing, Electric control: All driving speed controlled by frequency

  conversion, Transducer and Electronic element use SIEMENS brand,

  Working width 620mm,

  Dimension: 500x750x360 mm

  Power: 0.55KW, Total weight: 250kg

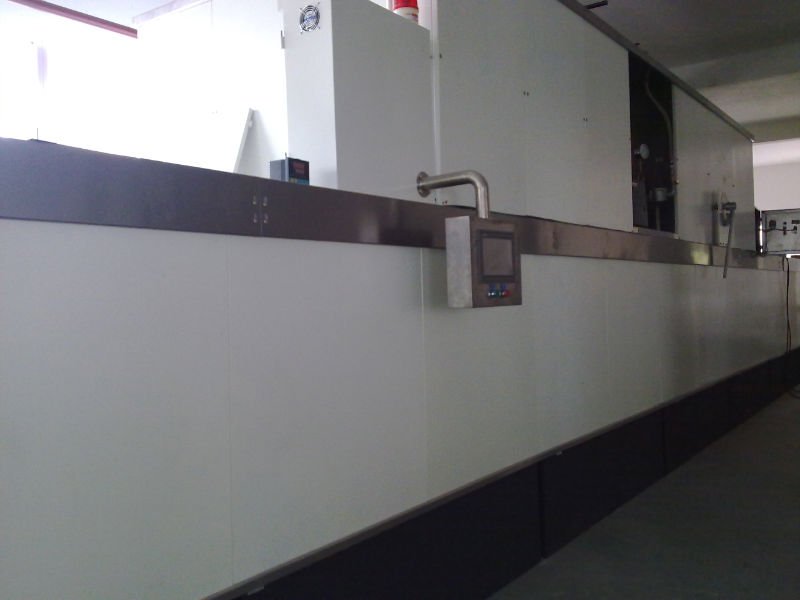

  Tunnel oven length 25-70m;



  The Oven is best design in CHINA, 99% Chinese biscuit factories are use our oven/biscuit line

.

  Oven length: 25m-70m, baking capacity from 200kg-1500kg/hour.  We suggest oven length minimum 25m, then the oven can bake top grade quality biscuit.

  Cover made by Painted steel or 304 Stainless steel:





Performance: Full auto PLC touch screen control; NSK bearing;  FESTO air cylinder auto corrective system; SEW gearbox & motor; SIEMENS electronic &  transducer; Weishaupt burner(Germany); ISO,CE quality standard





Oil sprayer with 4m oil filter;





90/180degree Curve, this design considered the length of plant not enough.



Cooling conveyor;



Stacker;



Packing table;



Additional equipments:   Biscuit sandwiching machine, or Auto connect to packaging machine, biscuit packaging machine, ., etc.
