small chocolate wrapping machine
1.carbon steel frame;
2.adjustable speed;
3.Constant temperature.
PLC controlled small chocolate wrapping machine in China

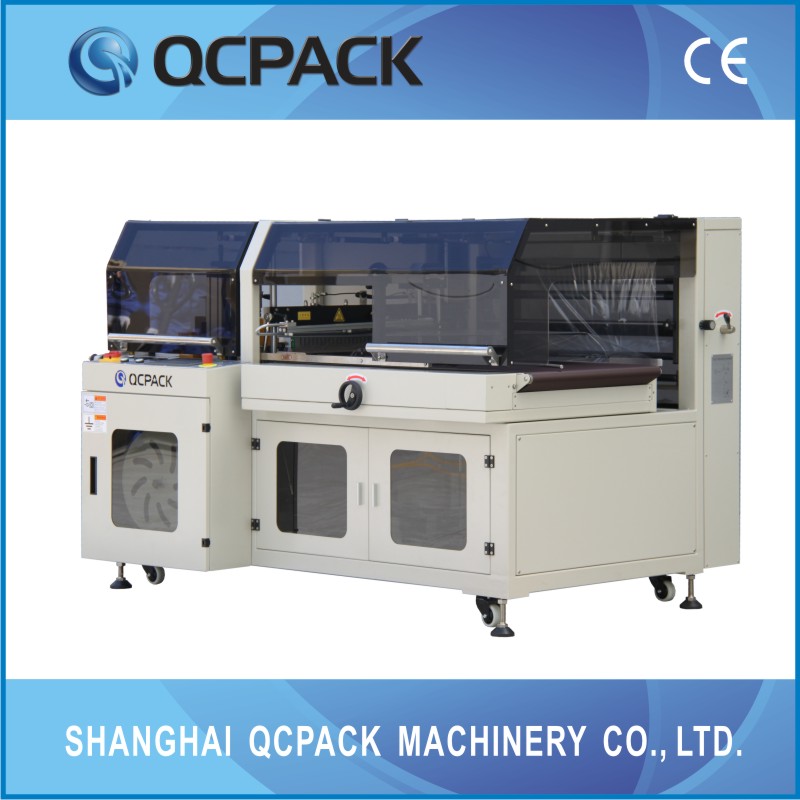

1.Machine photos 1:
small chocolate wrapping machine
2.Machine Photos 2:
small chocolate wrapping machine
3.Uses :
Suitable for large quantity shrink wrapping industries such as software, foodstuff, cosmetics, printing, pharmacy, flooring, ceramics, beverage and beer etc.
small chocolate wrapping machine
4.Samples:
small chocolate wrapping machine
5.Performance Characteristics :
BT H 700 It is a fully automatic shrink wrapping machine, widely used in pipelining work for large quantity package with high work efficiency, installed with pin hole device, adjustable film feeding system and adjustable conveying table, meets different requirements for different products and it has a kissing device for packing the small products.
1.Adopts heat resistant alloy Cutter plated Teflon, results in good sealing, without melting the film and any smoke pollution
2.Assembles one horizontal and one erect sensor for the entrance to the sealer it is easy to switch over ,even for some thin products, it is also easy to pack them.
3.The length of film feeding, controlled by magic eye and counter, also fixes an inductive motor for collecting wasted film automatically.
4.When pack different sizes of products,it is simple to adjust, need not to exchange any molds or any bag making device
5.To pack different size of products together for sales promotion effect.
6.Adopts OMRON digital temperature controller with PID function, sealing temperature is extremely sensitive and accurate, can set temperature optionally, the cutter itself has a protective function, avoid from damage the products.
7. The machine fixes an organic safety glass cover, with alarm function, so that the operator is safe.
8.The machine can be connected with the production line, which is no need additional operator.
small chocolate wrapping machine

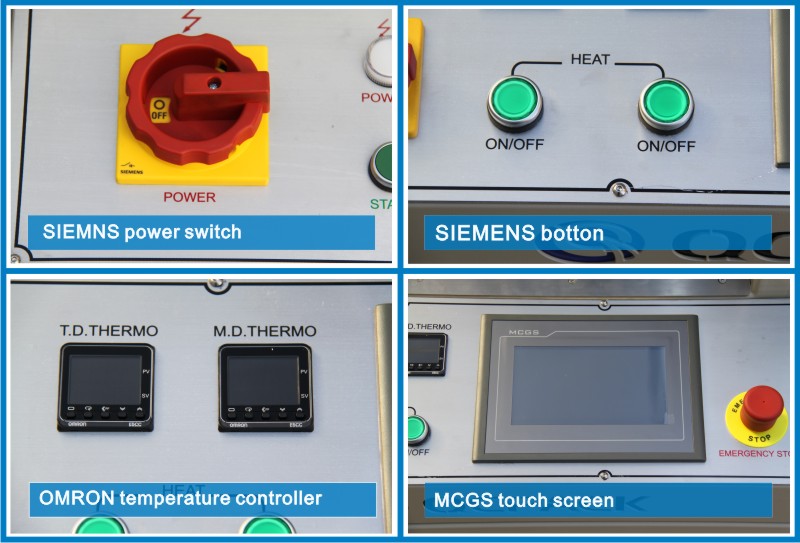

6.Spare parts1:
small chocolate wrapping machine

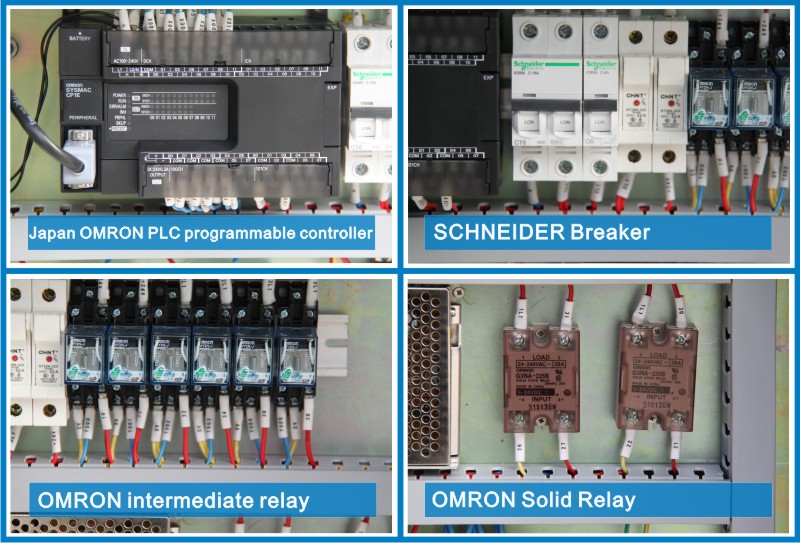

7.Spare parts 2:
small chocolate wrapping machine
8.Main Technical Parameters:
Mold |
BT H -700 |
BM-700L |
Max. Packing Size |
(L)No Limited* (W+H)≤650mm (H)≤200mm |
(L) No Limited ×(W)680×(H)280mm |
Max. Sealing Size |
(L)No Limited * (W+H)≤ 700 mm |
(L)1500×(W) 7 00×(H)300mm |
Packing Speed |
15 ~ 3 5 Packs/min |
40 ~ 80 Packs/min |
Electric Supply & Power |
220 V/50Hz 3kw |
380V/50Hz 16kw |
Air Pressure |
5.5kg/cm3 |
/ |
Weight |
9 00kg |
700kg |
Overall Dimensions |
(L)2 2 50×(W)1 420 ×(H)1300mm |
(L)1800×(W)1 3 00×(H)1300mm |
small chocolate wrapping machine
9.Spare parts 3:
small chocolate wrapping machine
10. Workshop 1:
small chocolate wrapping machine
11.Workshop 2:
small chocolate wrapping machine
12.Equipment:
small chocolate wrapping machine
13.exhibition:
small chocolate wrapping machine
14.Visit figure:
small chocolate wrapping machine
15.Certificates:
small chocolate wrapping machine
16.Shipment Details:
small chocolate wrapping machine
17.We Promise:
12 Months guarantee,during this period we will offer free replacement after confirming that it is our quality problems.
If you want to know more information about our products welcome to contact us in any time, And welcome to our company!!!
Type: |
Wrapping Machine
|
Condition: |
New
|
Application: |
Food,Beverage,Commodity,Medical,Chemical,Machinery & Hardware
|
Packaging Type: |
Cartons
|
Packaging Material: |
Wood
|
Automatic Grade: |
Automatic
|
Driven Type: |
Electric
|
Voltage: |
220V
|
Power: |
3kw
|
Place of Origin: |
Shanghai China (Mainland)
|
Brand Name: |
QCPACK
|
Model Number: |
BTH-700+BM-700L
|
Dimension(L*W*H): |
2250*1420*1300mm+1800*1300*1300mm
|
Weight: |
900kg+700kg
|
Certification: |
CE
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
Name: |
small chocolate wrapping machine
|
Warranty: |
12 months
|
Cutting knife servo motor: |
PANASONIC
|
product feeding motor: |
TPG
|
PLC: |
OMRON
|
Touch screen: |
MCGS
|
Temperature controller: |
OMRON
|
Horizontal sensor: |
BANNER
|
Sealing knife: |
DAIDO
|
Conveyor: |
SIEGLING
|
