1.coiled material-after filling and sealing-become bag
2.full automatic filling and sealing
3.full 304 stainless steel
Hongfa Packaging Technology institution
ADD:Zhifangtou Industry Park Cangzhou city, Hebei province, China.
Diana wang
Tel:+86 317-4958886 4958887
Mobile:+86 15127741651
Skype: amywang8898
Website:http://www.ytgzj.net
We are a provincial technological manufacturer specialized in packaging technology and food Machinery research, This factory produce aseptic packaging machine, ice pop maker, multi-purpose filling, sealing capping machine, high speed shear emulsifying machine, aseptic brick machine, liquid filling machine, Juice filling and capping , special bag filling capping machine, etc. and also can provide customized products according to different requirements.

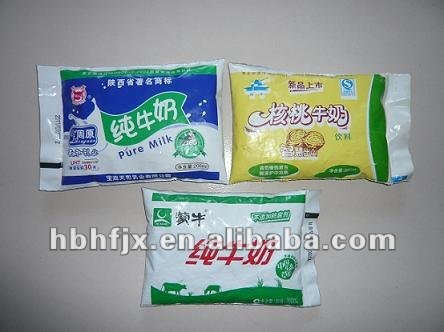

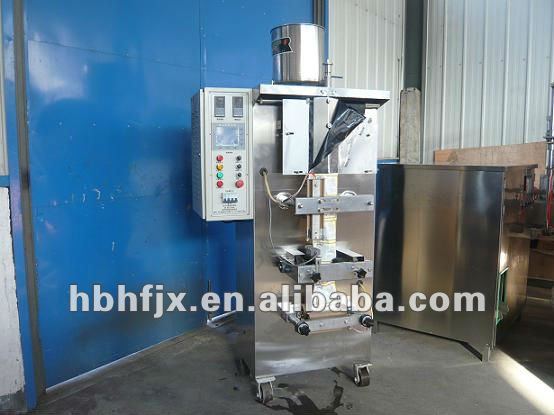

HF-IE automatic liquid packaging machine is exclusively used for the quantitative packaging of high-quality liquid like soy,vinegar,Chinese spirits,milk,ect.
| power supply |
380V/220V |
| power |
1KW |
| precision |
±1.5% |
| Packaging capacity range |
100-1000ML |
| Firm width |
maximun beam 320MM |
| efficiency |
20-30bags/min |
| Overall Dimension |
660X760X1660mm(2060mm) |
| weight |
235kg |
***********************************************************************************************
********************************************************************************************

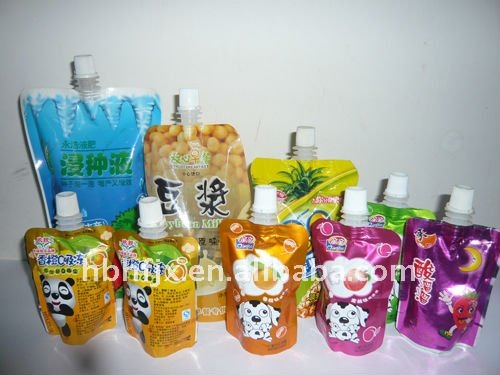

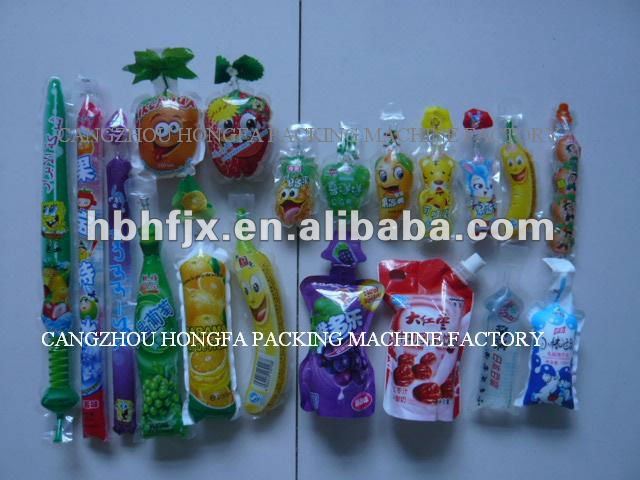

HFPZD-B shaped bag filling and sealing machine , used in all kinds of fruit shape

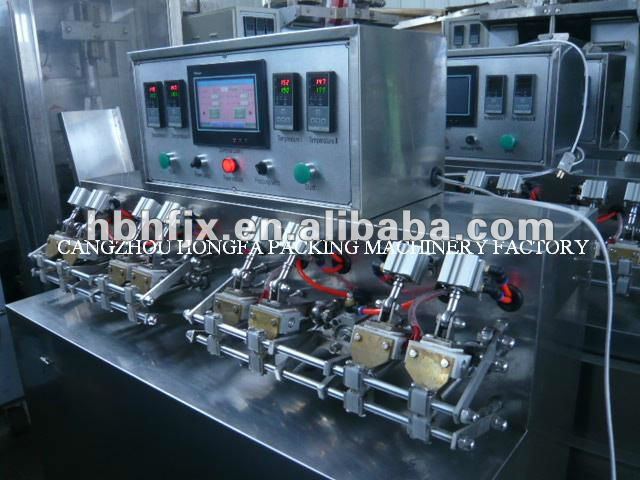

4/8/12 head filling and sealing machine, PLC control system.
Technical:1. Production capacity:800-2600bags/hour
1. Measurement scope:50-500ml/bag(special customized)
2. power:1.2-1.6kw 3. Machine weight:180kg
3. Power supply:220v 50hz
*****************************************************************************************************************
patented products, counterfeiting reserved
hf-ZLD-C this machine only have one filling and capping nozzle,the size is small,
widely used in all kinds of liquid, such as water, milk, sauce and so on
technical: Capacity:500-1000bag/hr bag volume:100-350ml voltage:220V 50HZ
| Type: |
Filling Machine"> Filling Machine
|
Condition: |
New
|
Application: |
Food,Beverage,Commodity,Medical,Chemical,Machinery & Hardware,Apparel
|
| Packaging Type: |
Cartons,Cans,Bottles,Barrel,Stand-up Pouch,Bags,bags
|
Packaging Material: |
Plastic
|
Automatic Grade: |
Automatic
|
| Driven Type: |
Electric
|
Voltage: |
220V 380V
|
Power: |
1kw
|
| Place of Origin: |
Hebei China (Mainland)
|
Brand Name: |
cangzhou hongfa
|
Model Number: |
HF-IE
|
| Dimension(L*W*H): |
660X760X1660MM
|
Weight: |
235kg
|
Certification: |
CE
|
| After-sales Service Provided: |
Overseas service center available
|
Material: |
stainless steel
|
