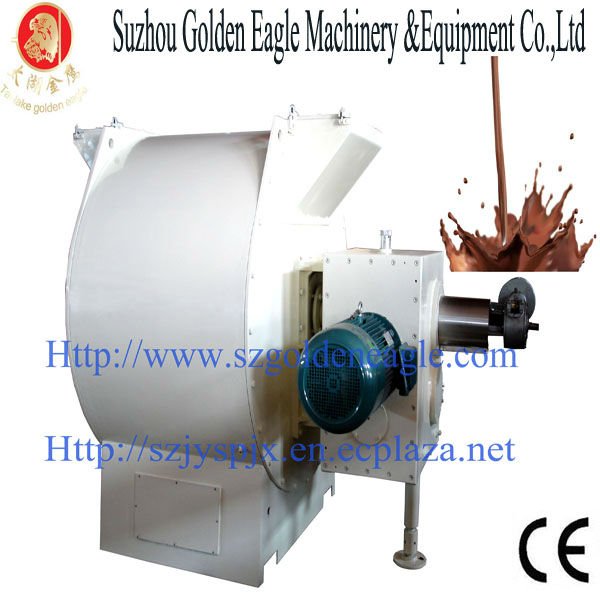

QYJ series chocolate conche machine:
1.it is used in fine grinding of chocolate mass
2.metalclad
QYJ series chocolate conching machine
Application :
1.The grinding machine is the collection of oil, refining, conching in one of the chocolate production equipment
2.The duration of fine grinding typically lasts 16~22 hours and can achieve an average fine granularity of 20 microns.
3.The cylindric conche uses dual-layer sleeve for heat preservation . Temperature rise is available through steam heating, hot water heating or electric heating.
4.The Paste is sealed up in the course of grinding, which is in compliance with the requirements for food hygiene .
Technical Parameters :
| model project |
500L |
| maximun capacity(L) | 500 |
| grinding fineness(micron) | 20~25 |
| main axle rotating speed(rpm) | 33 |
| grinding time(h) | 16~22 |
| main motor power(kw) | 15 |
| electrical heating power(kw) | 5 |
| weight(kg) | 2572 |
| outside dimensions(mm) | 2465×1146×1312 |
Introduction :
In 2003, we successfully got ISO9001-2000 certification . In May, 2006, we successfully gained the CE certificate for our chocolate manufacturing machines. Our products are sold well all over China as well as Britain, Italy, Russia, Belgium, Turkey, Spain, Israel, southeast Asia, Middle East, Australia, Malaysia, Indonesia and so on more than 50 countries and regions.
| Product Line Name | Production Line Capacity | Actual Units Produced(Previous Year) |
|---|---|---|
| Food & Beverage Machinery | Chocolate Conche 35 Sets / Month;Chocolate Holding Tank 45 Sets / Month;Chocolate Enrobing Line 18 Sets / Month;Chocolate Moulding Line 8 Sets / Month;Tempering Machine 10 Sets / Month |
| Market | Revenue(Previous Year) | Total Revenue (%) |
|---|---|---|
| North America | confidential | 1.69 |
| South America | confidential | 0.68 |
| Eastern Europe | confidential | 0.68 |
| Southeast Asia | confidential | 6.78 |
| Africa | confidential | 3.39 |
| Oceania | confidential | 0.68 |
| Mid East | confidential | 2.71 |
| Eastern Asia | confidential | 5.08 |
| Western Europe | confidential | 1.02 |
| Central America | confidential | 0.68 |
| Northern Europe | confidential | 1.35 |
| Southern Europe | confidential | 0.68 |
| South Asia | confidential | 6.78 |
| Domestic Market | confidential | 67.8 |
| Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used | Condition |
|---|---|---|---|---|
| Lathe | Dalian & C06140A | 10 | 3.0 | Acceptable |
| Boring Machine | Zhongjie & PX61116 | 2 | 5.0 | Acceptable |
| Vertical Lathe | Qiqihaer | 2 | 5.0 | Acceptable |
| Drilling Machine | H5-32 | 7 | 4.0 | Acceptable |
| Sawing Machine | GB4028 | 1 | 5.0 | Acceptable |
| Shearing Machine | QC12Y-4X400 | 2 | 5.0 | Acceptable |
| Bending Machine | Zhongde & WC67Y | 1 | 7.0 | Acceptable |
| Rise and Fall Milling Machine | Beijing & X62W | 1 | 5.0 | Acceptable |
| Planning Machine | No Information | 2 | 7.0 | Acceptable |
| Puncher | No Information | 5 | 7.0 | Acceptable |
| Certified Picture | Certification Name | Certified By | Certificate No. | Product Name & Model No. | Available Date --- Expired Date |
|---|---|---|---|---|---|
| ISO 9001:2008 | Beijing Zhongdahuayuan Certification Center, ANAB | ANAB12Q20618R3M | Scope: The Design, Development and Production of Chocolate Production Machine | 2012/09/26 --- 2015/09/25 | |
| CE | HTS Inspections & Certification UK Limited | U2009 09 91368 001 | Chocolate Manufacturing Machine & CMM-I (QYJ+SJP), CMM-II (QYJ+Q11) | 2009/09/15 --- 2049/12/31 | |
| CE | HTS Inspections & Certification UK Limited | U2013 09 091368 002 | Chocolate Manufacturing Machine & CMM-I (QYJ+SJP), CMM-II (QYJ+Q11) | 2013/09/27 --- 2049/12/31 |
| Condition: |
New
|
Place of Origin: |
Jiangsu China (Mainland)
|
Brand Name: |
Golden Eagle
|
| Model Number: |
QYJ500
|
Application: |
Chocolate
|
Voltage: |
380v/220v/440v/415v/480v
|
| Power(W): |
37000
|
Weight: |
5350
|
Dimension(L*W*H): |
3040*1912*1920
|
| Certification: |
CE, ISO9001-2000,ISO9001-2000, CE
|
Warranty: |
1 year
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
| Processing: |
chocolate mass
|
chocolate processor: |
chocolate machine
|
chocolate processor types: |
conche
|
| Processing Types: |
chocolate conche
|
food processor machine: |
chocolate refiner machine
|
food processor: |
refiner machine
|
