RXGF40-40-12 Automatic 3 in 1 Coconut Water Filling Machine Plant,China SHEENSTAR price supplier

RXGF40-40-12 Automatic 3 in 1 Coconut Water Filling Machine Plant

FOB Price:Price can be negotiated

Production Capacity:5 Set/Sets per Month of Coconut Water

Update Time:2014-09-16

Contact Supplier

Product Description

RXGF40-40-12 Automatic 3 in 1 COCONUT WATER Filling Machine Plant
Production Capacity:1000-22000bph

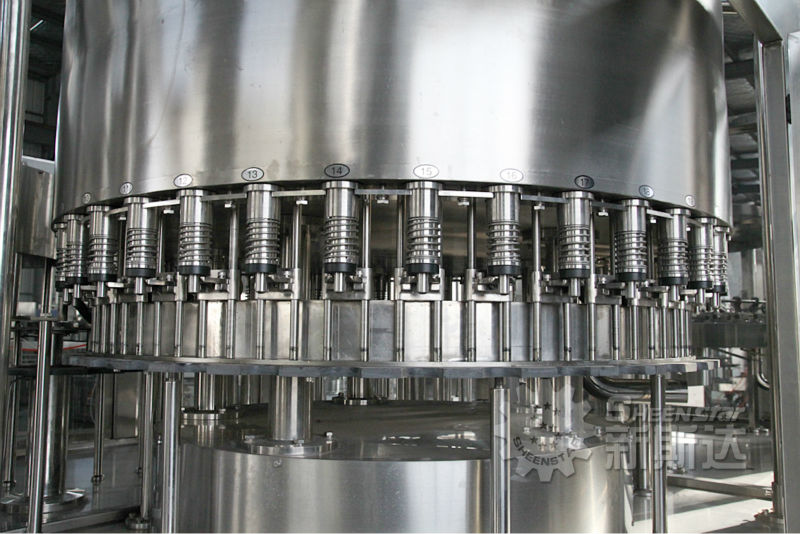

High Speed Filling Nozzle

RXGF40-40-12 Automatic 3 in 1 Coconut Water Filling Machine Plant

Product Description

Coconut Water Filling Machine Description

Rinsing

-Rotative rinsing turret one treatment, fixed nozzles, with grippers. -The grippers take the bottles from the inlet starwheel while they are still driven by the starwheel, thus guaranteeing a safe grip. -After the gripping, the bottle is turned upside down and centred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.

Filling

-The starwheels drive the bottles always "by the neck" through the rinsing, filling and capping steps. For the various types of bottle, it is easy to adjust the structure for the operator by our specialized design. -Product bowl is to reduce the loss of heat. -If the temperature is low than the setting value, the filling valves will stop and return the last beverage in filling valve to recycle tank and return to UHT again to sterilize with pump.

Capping

-Rotative capping turrent, suitable to the application of screw plastic caps on PET bottles -The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads. -The heads are raised and lowered by the action of a follower that is riding on a shaped cam.

Coconut Water Filling Machine Parameters

Model	RXGF8-8-3	RXGF12-12-5	RXGF16-12-6	RXGF-16-16-6
Production capacity (500ml)(b/h)	1500-2000	2000-2500	3000-4000	4000-6000
Filling precision	±2mm(Liquid Level)
Polyester bottle standard(mm)	(Bottle Diameter):Φ50-Φ100(Height):150-310
Suitable cap shape	Plastic Screw Cap
Water pressure of washing bottle(MPa)	0.2-0.25(Mpa)
Wash bottle consumption water (kg/h)	600	700	800	1200
Spraying position	5	5	5	5
Dripping bottle position	3	3	3	3
Gas source pressure(Mpa)	0.6	0.6	0.6	0.6
Gas consumption(M3/min)	0.1	0.1	0.1	0.1
Power(kw)	2.2	2.2	4.4	4.4
Weight(kg)	2000	2100	2200	2800
Dimensions(L×W×H)(mm)	200016002200	210016502200	223016302250	236018302250

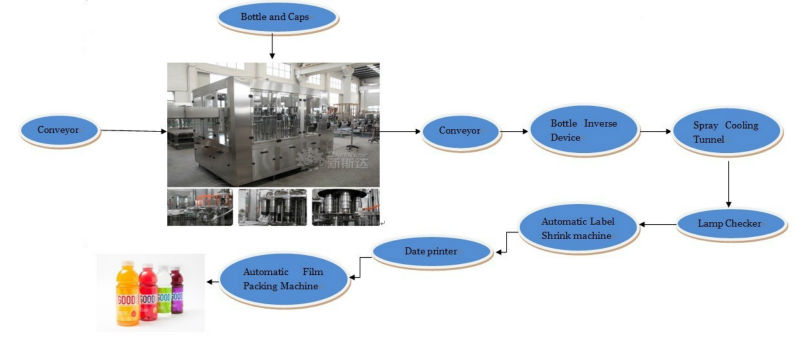

Coconut Water Filling Machine Flow Chart

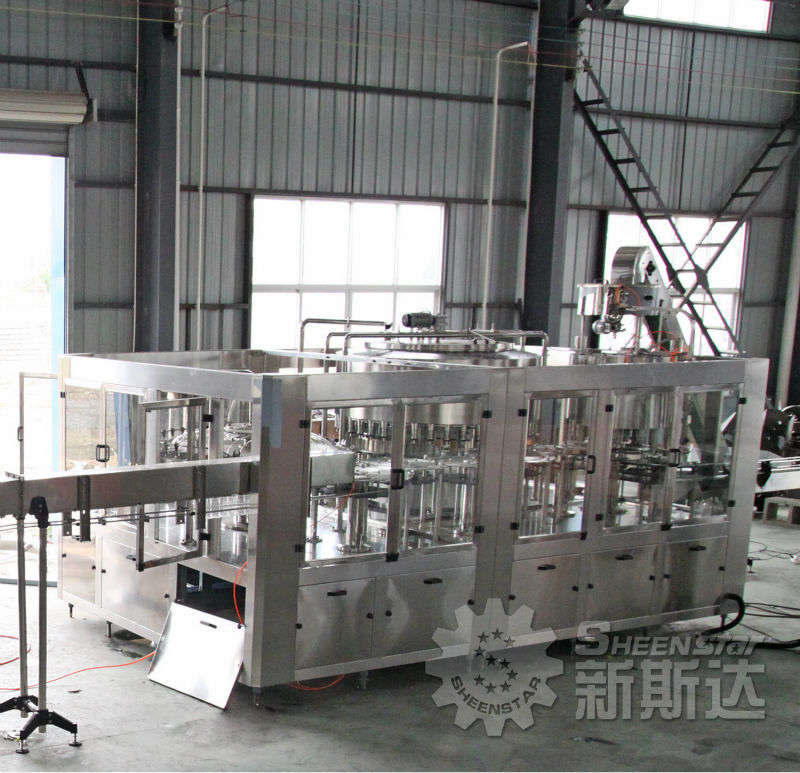

Coconut Water Filling Machine Show

Packaging & Shipping

Our Services

we will install the machine for you ,and train your employees to use the machine well.
we will provide one year warranty with free spare parts.

Company Information

We are a manufacture.
we have been certificated by the famous cercification authority.
we have been in beverage packing more than 13 years.
we can help you to start a new company in beverage making.
we make all of our customers be satisfied with the machine.

FAQ

Why choose Coconut Water Filling Machine

1. Famous Brand

2. Workings

Any question about this Coconut Water Filling Machine . Please tell me.

Sinere service for you .And welcome to SHEENSTAR

Type:	Filling Machine	Condition:	New	Application:	Beverage
Packaging Type:	Bottles	Packaging Material:	Plastic	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	customized	Power:	7.8Kw
Place of Origin:	Jiangsu China (Mainland)	Brand Name:	SHEENSTAR	Model Number:	LS
Dimension(LWH):	370030002350mm	Weight:	7000kg	Certification:	BV CE
After-sales Service Provided:	Engineers available to service machinery overseas	Production Capacity:	15000-20000bph	Bottle:	0.1-2L
Filling Precision:	±2mm	Cap Type:	Plastic screw cap	Water pressure of washing bottle:	0.2-0.25Mpa
Wash Bottle Consumption Water:	3000KG	Spraying Position:	16	Dripping Bottle Position:	9
Gas Source Pressure:	0.6Mpa	Gas consumption:	0.5m3/min
