Sesame Grading Machine,China Guang Ke price supplier

Sesame Grading Machine

FOB Price:Price can be negotiated

Production Capacity:30 Set/Sets per Month Sunflower Seeds

Payment Terms: US $24,500 - 27,000 / Set

Update Time:2023-04-23

Contact Supplier

Product Description

1. Grain color sorter
2. Durable color sorter
3. High accuracy
4. Low consumption
5. High capacity

Production Description

Product Features:

1 , High speed,reliable bus communication, high signal consistency, anti-disturbance ability, ensure system running stable and reliable.

2 , Based on ARM all in one 10.4" full color touch screen with embedded OS, friendly UI, make machine easy, convenient and flexible to operate.

3 , High Speed linear array CCD true color sorting technology with HD lens ensure high speed, accurate sorting.

4 , Advanced LED light source, reliable, durable, energy saving and environmental care.

5 , Suitable for Cereal and industrial schistose granular sorting.

kind	kidney bean			broad bean			sunflower seeds
Model	6SXZ-192	6SXZ-256	6SXZ-320	6SXZ-192	6SXZ-256	6SXZ-320	6SXZ-192	6SXZ-256	6SXZ-320
Channels	192	256	320	192	256	320	192	256	320
( Kg/kw.h ) Throughput	≥700	≥700	≥700	≥600	≥600	≥600	≥400	≥400	≥400
Accuracy	≥99	≥99	≥99	≥99	≥99	≥99	≥99	≥99	≥99
First select	≥1:5	≥1:5	≥1:5	≥1:5	≥1:5	≥1:5	≥1:5	≥1:5	≥1:5
Second select	≥2:1	≥2:1	≥2:1	≥2:1	≥2:1	≥2:1	≥2:1	≥2:1	≥2:1
Voltage (50HZ)	220V50HZ	220V 50HZ	220V50HZ	220V 50HZ	220V 50HZ	220V 50HZ	220V 50HZ	220V50HZ	220V50HZ
Power(kw)	1.0~ 2.7	1.2~ 3	1.5~ 3.5	1.0~ 2.7	1.2~ 3	1.5~ 3.5	1.0~ 2.7	1.2~ 3	1.5~ 3.5
Air Pressure(Mpa)	≥0.6	≥0.6	≥0.6	≥0.6	≥0.6	≥0.6	≥0.6	≥0.6	≥0.6
Consumption(L/min)	1000- 1800	1200- 2500	1500-2500	1000- 1800	1200- 2500	1500-2500	1000- 1800	1200- 2500	1500-2500
Weight(kg)	635	750	950	635	750	950	635	750	950
Dimension (LWH/mm)	149614571789	195815861880	2306^1615*1880	149614571789	195815861880	2306^1615*1880	149614571789	195815861880	2306^1615*1880

Note : With different impurity rate, the productivity and parameters may various, we keep our rights not to announce any change in time for future update.

Grain color sorter : Broad Beans,Chinese Wolfberry Fruits,ed Beans,Pepper,Soy Beans,Hot Pepper Seeds,Mung Beans,Raisins,Lentiles.Almonds,Oats and Other Coarse Cereals.

Product parts

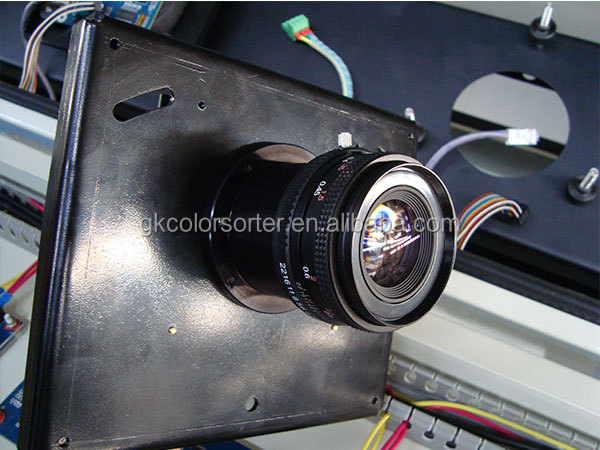

The most advanced 2048 resolution linear array CCD lens with HD imaging technology to capture selected tea images, to sort raw materials by its customized color definitions.

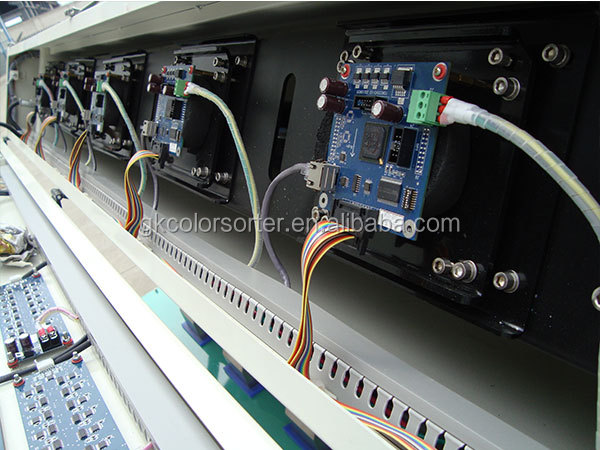

High speed intelligent image capture system, to distinguish all discolorations at one time.

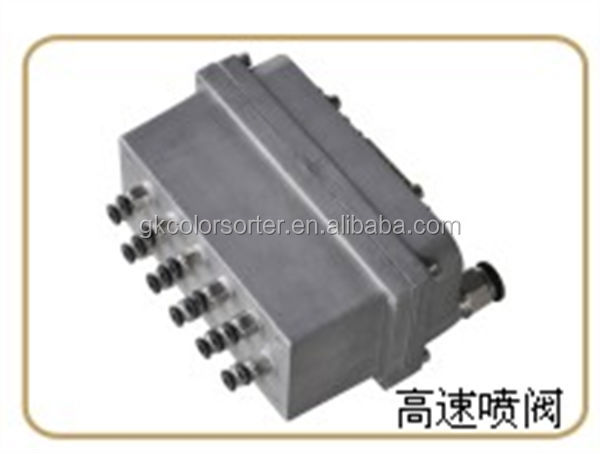

High tech ejector valve with ever longer lifetime,up to 1billion times.

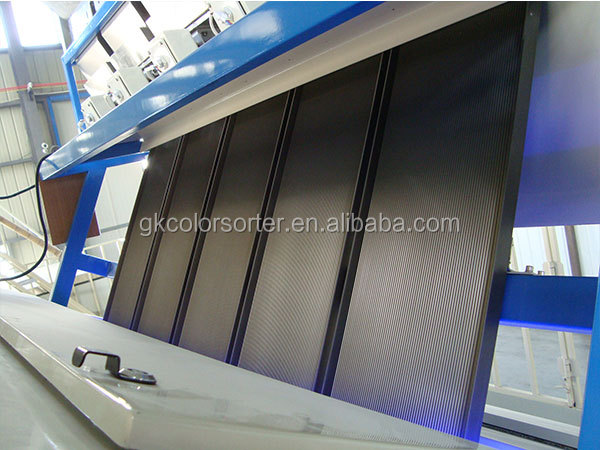

With open structure allow for even moving of articles and reduce friction and good for maintenance work

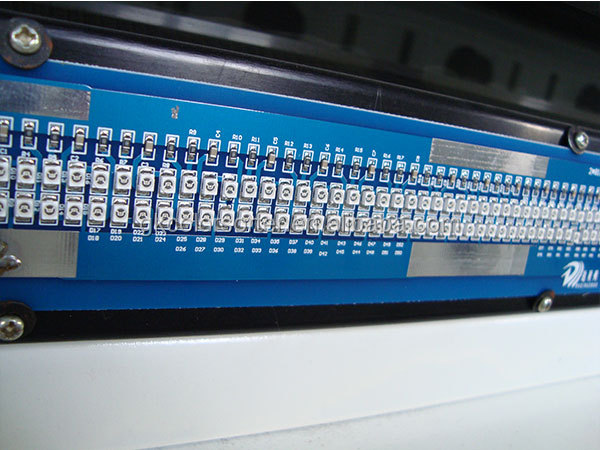

LED optical technology, high brightness and long life light source can meet needs of sorting a variety of tea.Unnecessary to change light source when sort different tea.

Sorting material

Ri ce color sorter: Thailand rice, polished rice, japonica rice, indica rice, glutinous rice, hybrid rice, brown rice, black rice, golden rice, red rice etc.

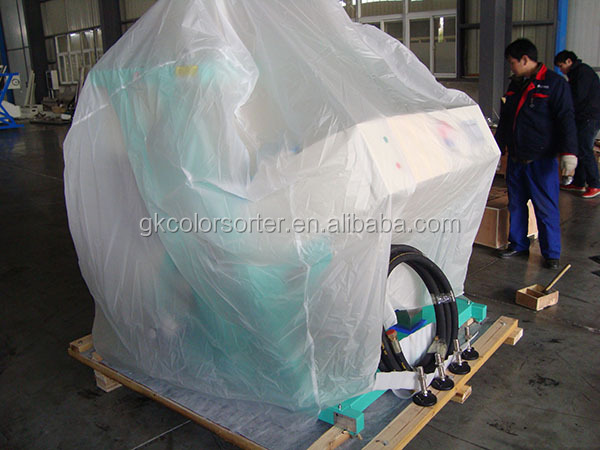

Packing and shipping

Company Introduction

Hefei Guang Ke Color Sorting Machinery Co., Ltd. is a high –tech enterprise which specialize in color sorting machinery R&D, production, marketing and services.

Our mian products are mainly CCD color sorting machine series. The product is dealt with a high-end CCD color and gray CCD system as a platform, and relying on rapid image processing software to develop rice color sorter, cereal color sorter, tea color sorter, beans color sorter, nuts color sorter, seed color sorter, dehydration vegetable color sorter series of agricultural separation equipment and industrial salt, quartz sand, plastic and other series of industrial separation equipment.

we followed by the management concept of “quality first, sincerity rooted”, striving to build the newest generation of high tech color sorting application based on study domestic and foreign similar products.

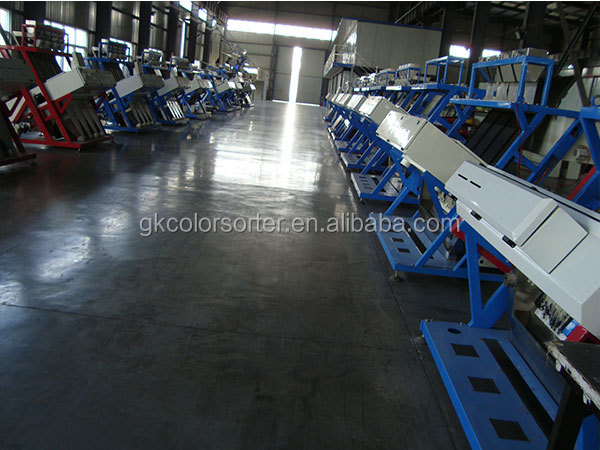

Our Factory

After sale servise

1,one year guarantee for maintenance expcept of malicious damage

2, 24 hours technical support by emai

3,calling or door to door service

Place of Origin:	China (Mainland)	Brand Name:	Guang Ke	Model Number:	GK-MB384
Type:	Grain Processing Equipment	After-sales Service Provided:	Engineers available to service machinery overseas	Chute:	6
Channle:	384	Output:	4-9t/h	Size:	231016421980
Weight:	1155	Detect system:	double sides cameras	Primary optimized carryover:	3:1
Secondary Optimized Carryover:	8:1	Voltage:	AC220V,50HZ	Sorting accuracy:	>99.98%
