Shanghai factory Automatic Lollipop Twist Wrapping Machine,China YB price supplier

Shanghai factory Automatic Lollipop Twist Wrapping Machine

FOB Price:Price can be negotiated

Production Capacity:30 Set/Sets per Month According to cus

Payment Terms: US $8,300 - 9,300 / Set

Update Time:2014-09-26

Contact Supplier

Product Description

Shanghai factory Automatic lollipop Twist Wrapping Machine
1 Rate:120 pcs/min
2.Auto feeding system
3.CE

YShanghai factory Automatic Lollipop Twist Wrapping Machine

lollipop samples:

Function and features:

1. Adopts PLC control system, and this machine is featured with logical structure, so that very easy to operate.

2. This machine is mainly composed of automatic sorting device, auto tracking system, standard tongs, lollipop conveyer chain, paper packing device, packing knot, rotating plate device, and heat sealing knotting device.

3. With state-of-art technology, stable performance, this machine can increase the sanitary standard and packing quality of Candy, which could considerably increase the production efficiency of the enterprise.

Technical specification:

Diameter of lollipop	20-28mm
Power of main motor	0.75kw 380v
Power of brushing motor	4×60w 380v
Power of paper feeding motor	0.2kw 220v
Heating sealing pipe	0.15kw×6 24v
Air pressure	0.2-0.5Mpa
Packing capacity (According to standard shape candy)	1000-2000kg/8h
Stable packing speed	120pcs/min
Machine dimensions (mm)	2500×900×1500
Machine weight (kg)	1200

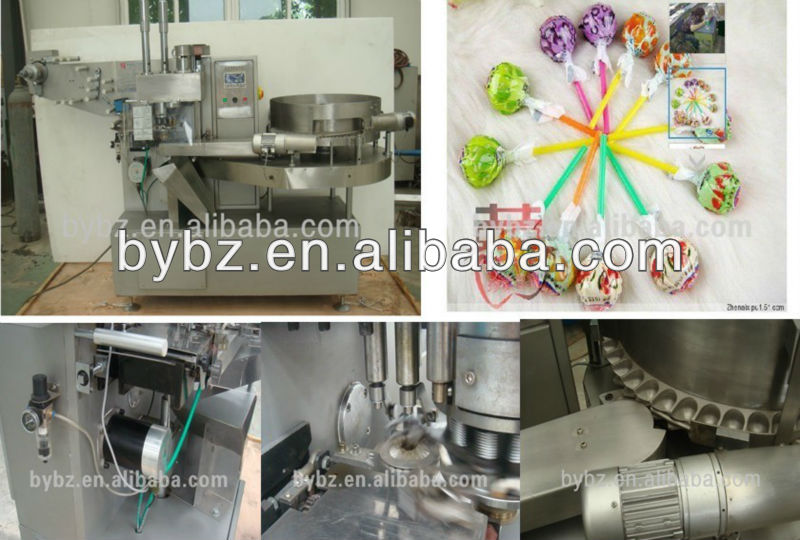

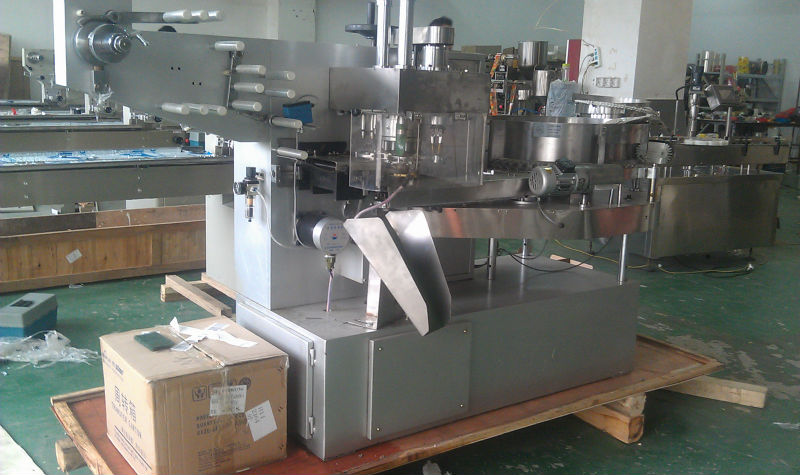

Machine photos:

Shipping from our factory:

Welcome your inquiry!

Type:	Other	Condition:	New	Application:	Food
Packaging Type:	film roll	Packaging Material:	Wood	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	220V	Power:	1KW,1 kw
Place of Origin:	Shanghai China (Mainland)	Brand Name:	YB	Model Number:	YB-350
Weight:	1200kg	Dimension(LWH):	25009001500 (mm)	Certification:	CE
After-sales Service Provided:	Engineers available to service machinery overseas	controller:	PLC/computer	Diameter of lollipop:	20-28mm
packing speed:	120pcs/min	plate:	candy plate	air pressure:	0.2-0.5mpa
lanuage:	English	usages:	lollipop bunch packing machine	warranty:	1 year

Company Profile

Name: Shanghai Yanban Machinery Co., Ltd.

Main Products: liquid filling line,vertical packing mcahine,flow wrapping machine,candy wrapping machine,printing machine

Business Type: Manufacturer

Total Employees: 51 - 100 People

Established Year: 2009

Main Markets: Africa, Mid East, South America, North America, Southeast Asia

Address: No.178, Changxiang Rd, Nanxiang Town

Shanghai Yanban Machinery Co., Ltd. is located in Nanxiang Industrial Zone, Shanghai. We have more than 15 years experience about filling/packing machines. We are an integrated enterprise specialized in research, development, design, manufacturing and technical services.

Our company has developed a variety of different types of automatic filling/packing machines which are used for food, medical, hardware, metal appliance and household item industries. We have sold our products well in domestic market and North America, South America, Central Asia, Southeast Asia and Africa.

We cherish our brand formed by our years of hard work. Treasure every hard-earned honor. We are never lost at applause and never hesitate. To change honor into progressive power, we can get more success step by step. more
