Shanghai Factory high speed HSH-120 chocolate bars packing machine /86-13916273508,China HOUSEN price supplier

Shanghai Factory high speed HSH-120 chocolate bars packing machine /86-13916273508

FOB Price:Price can be negotiated

Production Capacity:60 Set/Sets per Month

Payment Terms: US $4,000 - 9,000 / Set

Update Time:2022-11-08

Contact Supplier

Product Description

1.PLC control
2.Automatic power protect function
3.Percentage of pass:98%
4.Automatic diagnosis alarm function

chocolate bars packing machine /86-13916273508" ori-width="600" ori-height="400" />

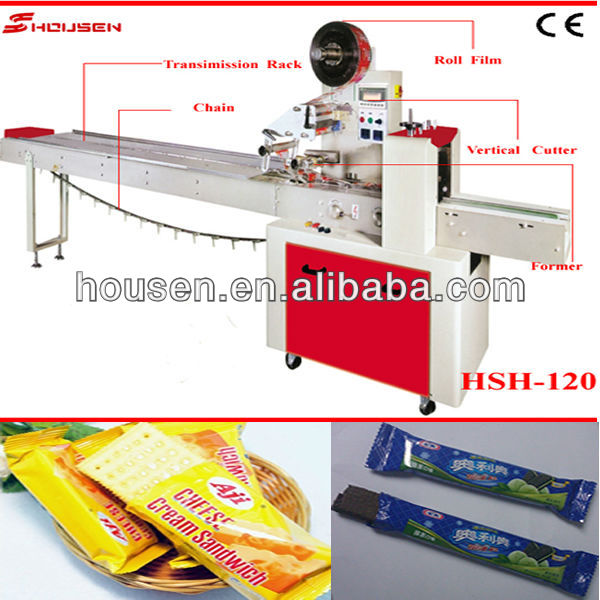

Technical parameter of chocolate bars packing machine

Model	HSH-120	HSH-320	HSH-450
Max film Width	240mm	320mm	360mm
Packing Length	65-160mm	80-200mm	130-400mm
Packing Width	35-100mm	40-150mm	30-180mm
Packing Height	5-35mm	5-50mm	5-80mm
Packing speed	30-210bags/min	30-180bags/min	30-150bags/min
Packing material	OPP/CPP.kOP/CPP ,PET/Alu-foil.etc
Power	220v 50/60Hz 3.4Kw	220V 50/60Hz 3.4kw	220V 50/60HZ 4.2Kw
Dimension	40009201600mm	400010201600mm	400010201600mm
Weight	450Kg	500Kg	550kg

Product advantage of chocolate pouch packing machines

1.It can automatic detection and set the length of the package

2.Double frequency structure. bag making length adopt double frequency converter.

3.The main control circuit adopts the development of the company's PLC, frequency converter. English shows, good human-machine interface, centralized intuitive, convenient operation.

4.Continuously variable, adjustment range, with the former working procedure Production Line a perfect match.

5.High photosensitive electric automatic track accurately.

6.Sealing temperature controlled independently.

Product details of chocolate bars packing machine

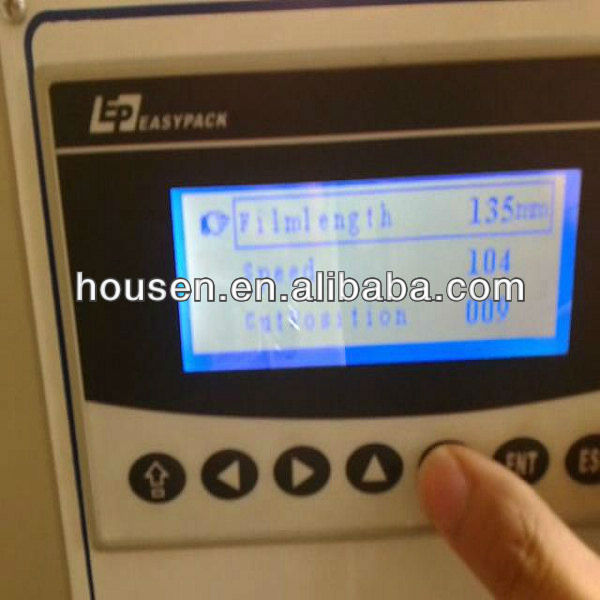

1. The Bag Length is adjustable through the Operate Interface .

2. The Bag Width is adjustable by means of the Bag former

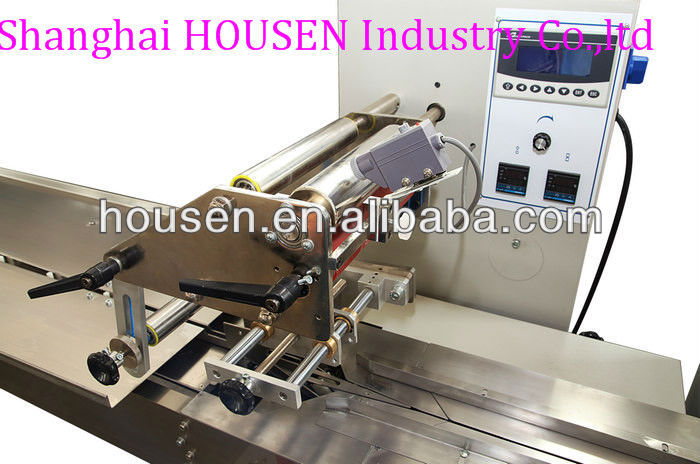

3.Machine details:

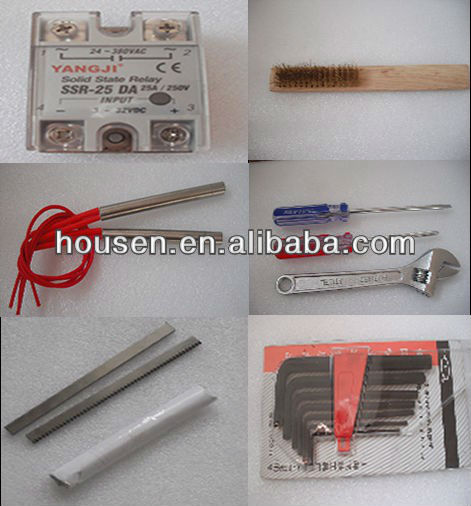

4.Free spare parts and Tools attached the machine

5.Machine package details (2 Poly wood case )

Optional device

1.Ribbon printer

2.Air compressor

3.Nitrogen filling device

4.Gusset device

5.Hole punch device

Basic Service:

1.technical support

2.loading inform

3.video for debugging

4.customers' requirest is welcome

Order process :

Verified Information:

This information was Verified by TÜV Rheinland and is valid for the following period: 2013/01/28 --- 2014/01/28

The information below covers both the Gold Supplier and its related companies, which are defined according to china laws and regulations.

Production Capacity:

Product Line Name	Production Line Capacity	Actual Units Produced(Previous Year)
Packing Machine	40 Sets / Month	350 Sets

Export Market Distribution:

Market	Revenue(Previous Year)	Total Revenue (%)
North America	confidential	1.0
South America	confidential	10.0
Eastern Europe	confidential	15.0
Southeast Asia	confidential	5.0
Africa	confidential	10.0
Mid East	confidential	3.0
Central America	confidential	10.0
South Asia	confidential	10.0
Domestic Market	confidential	36.0

Testing Machinery:

Machine Name	Brand & Model No.	Quantity	Number of Year(s)Used	Condition
Vernier Caliper	Shanghai	3	3.0	Acceptable
Outside Micrometer	Guilin, 0.01mm	2	3.0	Acceptable
Micrometer Caliper	00000315	3	2.0	Acceptable

Production Flow:

Assembly	Performance Test	Packing

Assembly

Performance Test

Packing

Certification:

Certification Name	Certified By	Certificate No.	Product Name & Model No.	Available Date--Expired Date
CE	Ceprom Product Certification Body	175-CI-32012	Full-Automatic Packing Machine & HSH-120, HSH-320, HSH-450, HSH-600, HSH-2000, HSD-220D, HSD-420D, HSD-520D, HSD-620D, HSD-720D, HSD-220F, HSD-420F, HSD-520F, HSD-620F, HSD-720F, HSD-420S, HSD-220Z, HSU-160F, HSU-160K, HSU-160Y	2012/01/11 --- 204

Certification Name

Certified By

Certificate No.

Product Name & Model No.

Available Date--Expired Date

Ceprom Product Certification Body

175-CI-32012

Full-Automatic Packing Machine & HSH-120, HSH-320, HSH-450, HSH-600, HSH-2000, HSD-220D, HSD-420D, HSD-520D, HSD-620D, HSD-720D, HSD-220F, HSD-420F, HSD-520F, HSD-620F, HSD-720F, HSD-420S, HSD-220Z, HSU-160F, HSU-160K, HSU-160Y

2012/01/11 --- 204

Type:	Packaging Machine"> Multi-Function Packaging Machine	Condition:	New	Function:	Filling,Wrapping,Sealing,Filling, Sealing, Wrapping, Printing
Application:	Food,Beverage,Commodity	Packaging Type:	Bags,Film,Foil,Pouch	Packaging Material:	Plastic
Automatic Grade:	Automatic	Driven Type:	Electric	Voltage:	220V
Power:	3KW	Place of Origin:	Shanghai China (Mainland)	Brand Name:	HOUSEN
Model Number:	HSH-120	Certification:	CE	Spare parts:	heating tube ,blade .etc
Dimension:	40009201600mm	Machine material:	stainless steel .carbon steel .etc
