Shanghai Full Automatic chocolate bar flow packing machine /86-13916273508,China HOUSEN price supplier

Shanghai Full Automatic chocolate bar flow packing machine /86-13916273508
FOB Price:Price can be negotiated
Production Capacity:80 Set/Sets per Month
Payment Terms: US $4,000 - 7,000 / Set
Update Time:2014-09-28
Product Description

1.chocolate bar flow packing machine
2.Video for machine install and debugging
3.Adjustable bag size and packing speed

Shanghai Full Automatic chocolate bar flow packing machine /86-13916273508

P roduct Advantage of  chocolate bar flow packing machine

• Adjustable bag former



• Cut-off length adjustment by means of a hand wheel and  a mechanical vibrator.



• A servo Motor, controlled by an AC inverter.



• Continuous variable speed by means of a potentiometer.



• Controller Panel (ENGLISH ).



• Digital PID temperature controllers.



• Jaws drive torque limiter with safety switch and reset hand wheel.





Technical paramater of  chocolate bar flow packing machine



Model HSH-120 HSH-320 HSH-450
Max film width 240mm 320mm 400mm
Bag making length 60-160mm 80-200mm 100-300mm
Bag making Width 30-100mm 40-150mm 30-170mm
Bag making Height 5-35mm 5-50mm 5-80mm
Packing speed 30-210bags/min 30-180bags/min
Packing material OPP/CPP/BOPP,PT/PE ,KOP/CPP,Alu-foil
Dimension 4000*920*1600mm 4000*1020*1600mm 4000*1020*1600mm
Power 220V 3.4kw 50/60Hz 220V 3.4kW 50/60HZ 220v 4.8Kw 50/0Hz
Weight 500kg 550Kg 600kg



Product Details

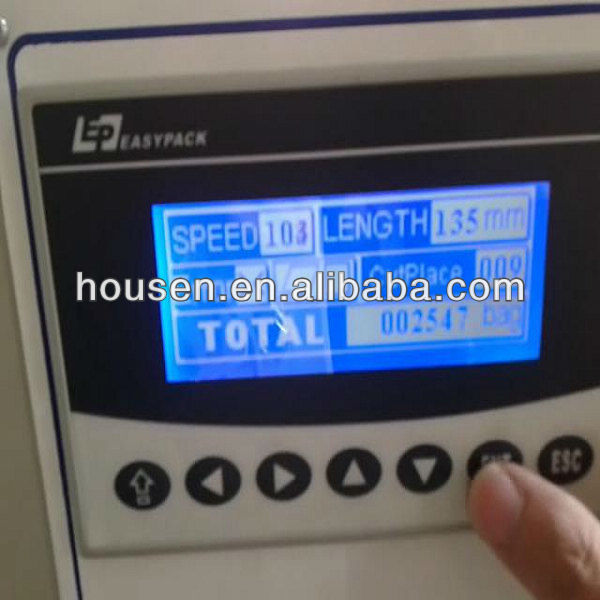

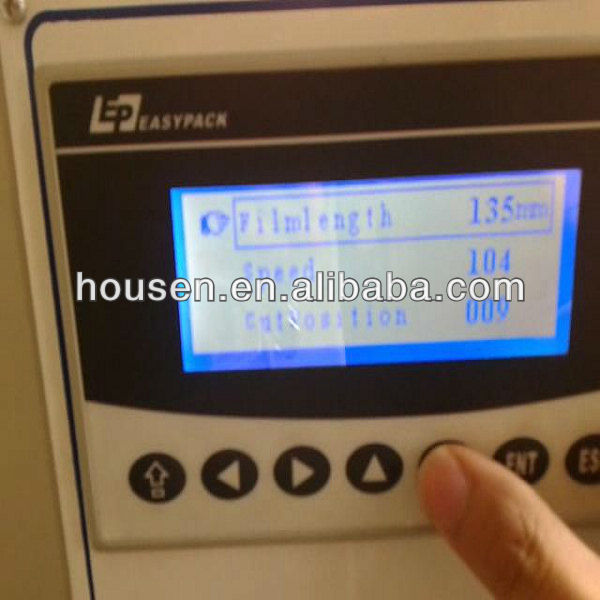

1. The Bag Length is adjustable by means of the Operate Interface .



Shanghai Full Automatic chocolate bar flow packing machine /86-13916273508 Shanghai Full Automatic chocolate bar flow packing machine /86-13916273508

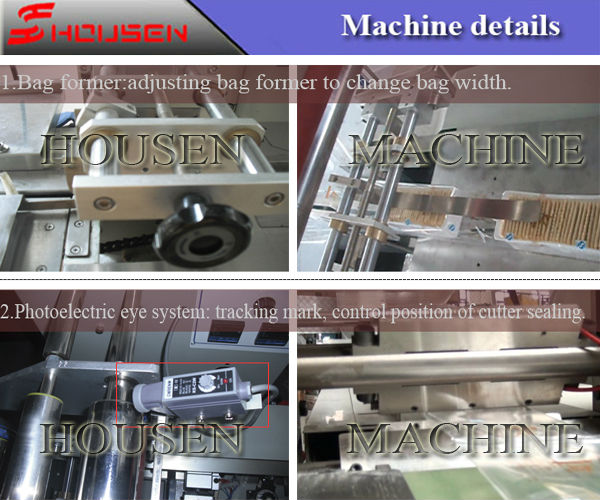

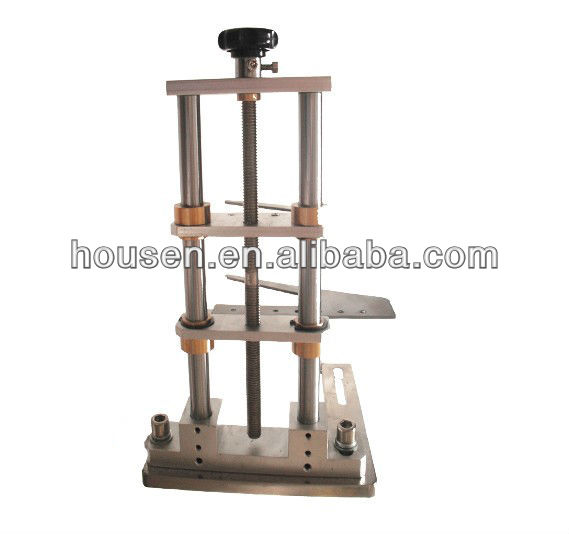

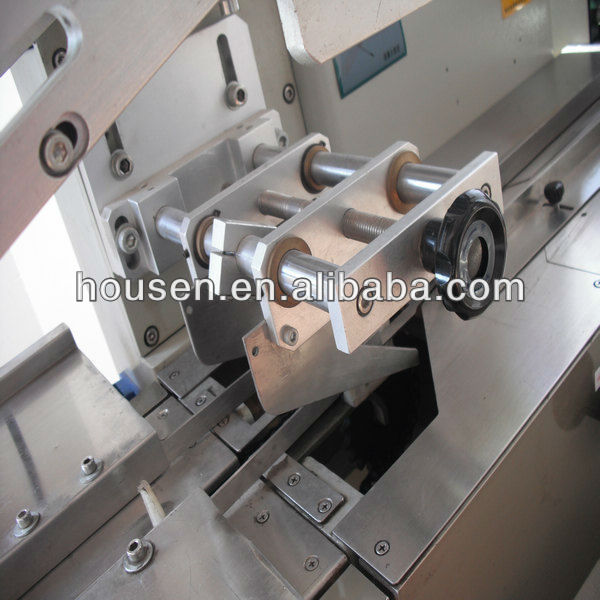

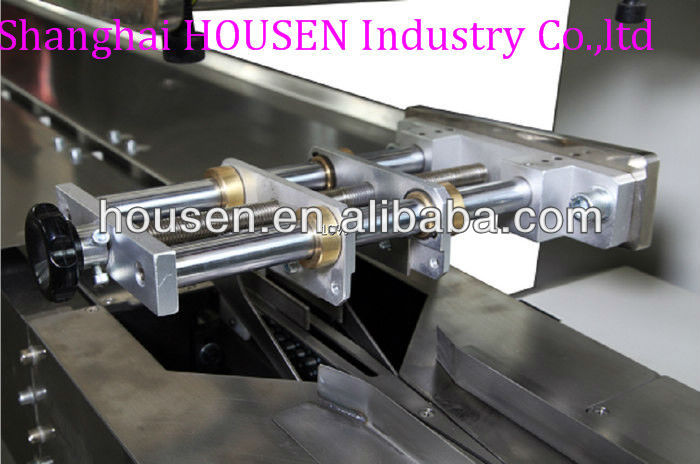

2. The Bag Width can be changed through the Bag Former



Shanghai Full Automatic chocolate bar flow packing machine /86-13916273508 Shanghai Full Automatic chocolate bar flow packing machine /86-13916273508 Shanghai Full Automatic chocolate bar flow packing machine /86-13916273508

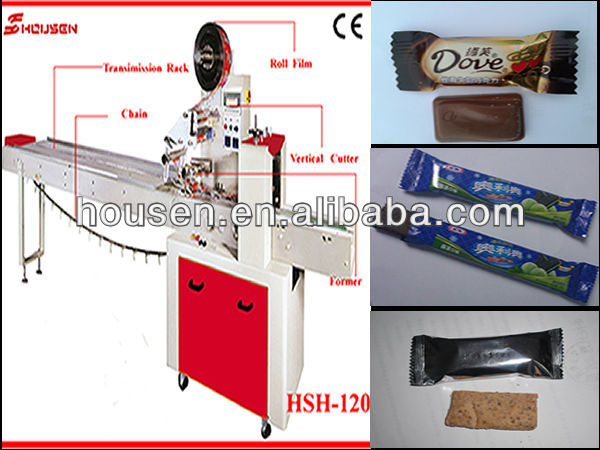

3. The Schematic Diagram



Shanghai Full Automatic chocolate bar flow packing machine /86-13916273508

Shanghai Full Automatic chocolate bar flow packing machine /86-13916273508

Shanghai Full Automatic chocolate bar flow packing machine /86-13916273508



  4.Package details:



Shanghai Full Automatic chocolate bar flow packing machine /86-13916273508





Optional devices

1.Ribbon printer

2.Air compressor

3.Nitrogen filling device

4.Gusset device

5.Hole punch device



Basic Service:



1.technical support



2.loading inform



3.video for debugging



4.customers' requirest is welcome





Verified Information:

This information was Verified by  TÜV Rheinland and is valid for the following period: 2013/01/28 --- 2014/01/28
The information below covers both the Gold Supplier and its related companies, which are defined according to china laws and regulations.

Production Capacity:

Product Line Name Production Line Capacity Actual Units Produced(Previous Year)
Packing Machine 40 Sets / Month 350 Sets

Export Market Distribution:

Market

Revenue(Previous Year)

Total Revenue (%)

North America confidential 1.0
South America confidential 10.0
Eastern Europe confidential 15.0
Southeast Asia confidential 5.0
Africa confidential 10.0
Mid East confidential 3.0
Central America confidential 10.0
South Asia confidential 10.0
Domestic Market confidential 36.0

Testing Machinery:

Machine Name Brand & Model No. Quantity Number of Year(s)Used Condition
Vernier Caliper Shanghai 3 3.0 Acceptable
Outside Micrometer Guilin, 0.01mm 2 3.0 Acceptable
Micrometer Caliper 00000315 3 2.0 Acceptable

Production Flow:

Shanghai Full Automatic chocolate bar flow packing machine /86-13916273508

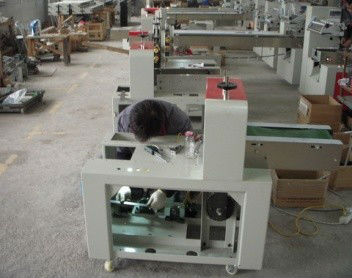

     Assembly

Shanghai Full Automatic chocolate bar flow packing machine /86-13916273508

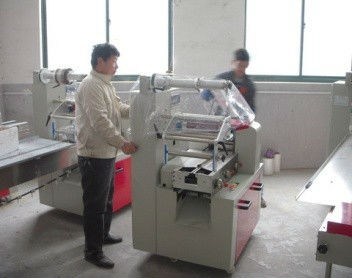

             Performance Test

Shanghai Full Automatic chocolate bar flow packing machine /86-13916273508

                     Packing

Certification:

Certification Name Certified By Certificate No. Product Name & Model No. Available Date--Expired Date



CE

Ceprom Product Certification Body 175-CI-32012 Full-Automatic Packing Machine & HSH-120, HSH-320, HSH-450, HSH-600, HSH-2000, HSD-220D, HSD-420D, HSD-520D, HSD-620D, HSD-720D, HSD-220F, HSD-420F, HSD-520F, HSD-620F, HSD-720F, HSD-420S, HSD-220Z, HSU-160F, HSU-160K, HSU-160Y 2012/01/11 --- 2049/12/31





Type:
Packaging Machine"> Multi-Function Packaging Machine
Condition:
New
Function:
Filling,Wrapping,Sealing,Printing
Application:
Commodity
Packaging Type:
bags
Packaging Material:
Plastic
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V
Power:
3.4KW Single phase
Place of Origin:
Shanghai China (Mainland)
Brand Name:
HOUSEN
Model Number:
HSH-120
Certification:
CE
After-sales Service Provided:
Engineers available to service machinery overseas
Spare parts:
heating tube ,blade .etc
Machine material:
stainless steel .carbon steel .etc
