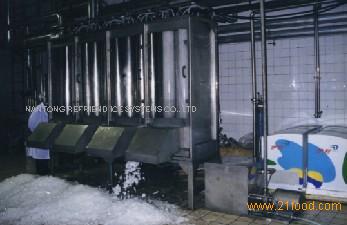

Shell Ice Machine :The thickness of ice produced by our shell ice machine can be
adjusted from 3mm to 20mm. Clear, hard all-purpose ice has
great lasting quality and can be bagged, blown, conveyed or
scooped without deterioration.
Shell ice machine not only can be used on land with fresh water,
but also can be specially designed for fishing vessels using salt
water directly.
Features:
1) Double, tapered, stainless-steel evaporator tubes for fast
freezing and quick ice release
2) Rugged, non-corrosive construction
3) Ice-making water shuts off during harvest so that no watery
ice gets in ice bin
4) No moving parts in the freezing zone
5) No cutting blades to maintain, repair or replace
6) Factory assembled, tested and fully charged with refrigerant
7) 10- year warranty on the evaporator tubes.
We are in a position to manufacture and supply several kinds of ice machine, usually flake ice machine (the ice thickness is about 2mm), shell ice machine (ice thickness is adjustable from 3mm to 12mm), are mainly used for food processing and chemical industries, sea water liquid ice machine is mainly used for fish boats, tube ice machine and ice cube maker are mainly used for human consumption. Also we are producing block ice machine (5 - 25kg per block) which is specially designed with latest techniques.
As conventional way to produce block ice is mainly from brine system, first you have to freeze the brine water, then put the ice can into the brine tank, then take out the ice can for harvesting block ice after 20 hours or more. This system is complicate and you have to do a lot of civil work.
Our new system is using aluminum plate as ice can, the refrigerant will be evaporated inside the aluminum plate so the plate can freeze ice making water quickly. This new type of block ice plant does not need any brine tank, so you do not need to add salt into the system too. This is the compact system and it is plug-ready and built for tropical conditions and coastal climate.
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
