1.universal Grinder
2.capacity:100-2000kg
3.12-120mesh by sieve
4.GMP
5, CE ISO
Main Usage:
This machine is widely applied for the materials crushing by the industries of pharmaceutics, chemical,and foodstuff etc.
Working Method:
It uses the wind wheel type high speed rotary cutters and the fixed cutters to crush ,mill and shear raw material ,which accompanied by strong airflow inside of the chamber to bring out the heat with the finished products through the screen . The size of granules can be achieved by changing of the screen.
Technica Data:
Model |
Production Capacity |
Spindle speed |
Feeding Size |
Crushing Fineness |
Crushing Motor |
|
Overall dimension |
20B | 20-150kg/h | 4500r/min | 6mm | 12-120 | 4KW | 700*900*1500 (mm) |
|
30B | 30-300kg/h | 3800r/min | 10mm | 12-120 | 7.5KW | 800*1100*1700 (mm) |
|
40B | 40-800kg/h | 3400r/min | 12mm | 12-120 | 11KW | 850*1200*1850 (mm) |
|
60B |
80-1200kg/h | 3000r/min | 15mm | 12-120 | 22KW | 950*1300*1950 (mm) |
|
80B | 150-2000kg/h | 2100r/min
|
20mm | 12-120 | 30KW | 1100*1000*2100 (mm)
|

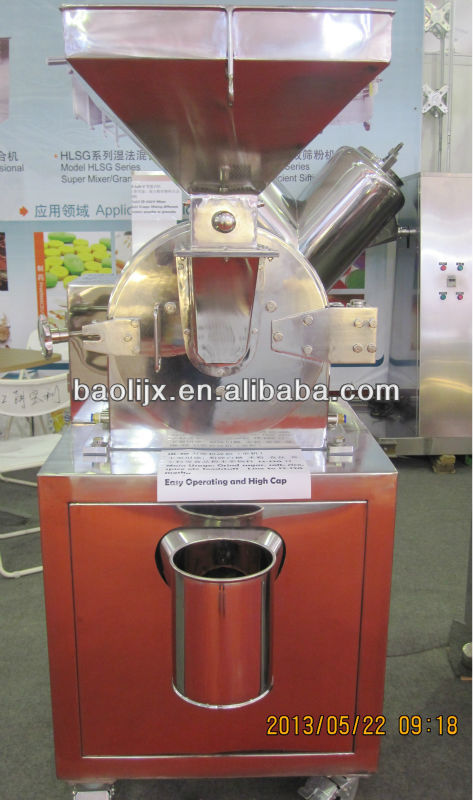

COCOA POWDER pulverizer machine pictures
if you are interested in our machine,you can send me inquiry or
contact my skype: wuluoying700400
Then ,can you tell me the t wo points about machine:
1 .how many production fineness do you want?
2 .how many production capacity do you want?
you tell me the points,then i can recommand you the best suitable machine for you.
Condition: |
New
|
Type: |
Pulverizer
|
Place of Origin: |
Jiangsu China (Mainland)
|
Brand Name: |
JinBao
|
Warranty: |
1year
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
FOB price: |
US$2800/set china
|
MOQ: |
1 Set
|
Material: |
Stainless Steel
|
Certificate: |
CE ISO 9001:2008
|
Mesh: |
12-120mesh
|
