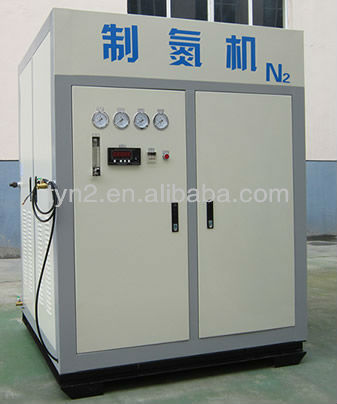

Small Nitrogen Generator for Foods Packing Machines,China price supplier

Brief Technical Parameters index
1.) Nitrogen flow: 1-3000Nm3/h.
2.) Nitrogen purity: 97-99.9995%.
3.) Nitrogen pressure: 0.05-1.0 Mpa.
4.) Dew point: from -60 to -45 degree celsius.

Brief Introduction for PSA Nitrogen Generator Principles

When the process adopts lifting air, oxygen and nitrogen have different diffusion rate and adsorptive capacity to separate oxygen from nitrogen on carbon molecular sieve(CMS). When air is compressed to 0.8MPa, air source enters in pressure-swing adsorption tower for separation after being purified through dry and oil-water separation process (filter). Oxygen molecules are diffused and adsorbed in carbon molecular sieve under pressure. Non-adsorbed nitrogen is discharged from outlet of adsorption tower. Oxygen is desorbed, discharged and purged in adsorption tower under depressurization. Moreover, adsorbent can be recycled.


Production Flow Chart

Specification

1. Place of Origin: Jiangsu,China.
2. Brand Name: TRUE.
3. Model No.: TY59-100.
4. Color: Silver,bright and white.
5. Nitrogen flow: 100M3/h.
6. Nitrogen purity: 99.999%.
7. Dew point:-45 degree Celsius.

8. Warranty period: One and a half years.
9. Product life: At least 10years or longer.
10.Outlet pressure: 0.05-0.65Mpa.
11.Material: Stainless steel.
12.Packaging details: Standard,if need wooden,will charge for cost.
13:Delivery time: Within 30days,when received 50% advance payment.


Applications
1.) Metallurgy: For anneal protection, agglomeration protection, nitrogenizing, furnace washing and blowing, etc. Used in fields such as metal heating treatment, powder metallurgy, magnetic material, copper process, metallic mesh, galvanized wire, semiconductor, etc.
2.)Chemical and new material industries: For chemical material gas, pipeline blowing, gas replacement, gas protection, product transport, etc. Used in fields such as chemical, urethane elastic fiber, rubber, plastic, tyre, polyurethane, biological technology, intermediate, etc.
3.)Electronic industry: For encapsulation, agglomeration, anneal, deoxidization, storage of electronic products. Used in fields such as peak welding, circumfluence welding, crystal, piezoelectricity, electronic porcelain, electronic copper tape, battery, electronic alloy material, etc.

Certification

Quality Control & Test Instruments

Production Line

Factory Overlook

Specification

1. Place of Origin: Jiangsu,China.
2. Brand Name: TRUE.
3. Model No.: TY295-3,TY295-5.
4. Color: Silver,bright and white.
5. Nitrogen flow: 3Nm3/h,5Nm3/h.
6. Nitrogen purity: 99.5%.
7. Dew point:-45 degree Celsius.

8. Warranty period: One and a half years.
9. Product life: At least 10years or longer.
10.Outlet pressure: 0.05-0.65Mpa.
11.Material: Stainless steel.
12.Packaging details: Standard,if need wooden,will charge for cost.
13:Delivery time: Within 30days,when received 50% advance payment.


Applications
1.) Metallurgy: For anneal protection, agglomeration protection, nitrogenizing, furnace washing and blowing, etc. Used in fields such as metal heating treatment, powder metallurgy, magnetic material, copper process, metallic mesh, galvanized wire, semiconductor, etc.
2.)Chemical and new material industries: For chemical material gas, pipeline blowing, gas replacement, gas protection, product transport, etc. Used in fields such as chemical, urethane elastic fiber, rubber, plastic, tyre, polyurethane, biological technology, intermediate, etc.
3.)Electronic industry: For encapsulation, agglomeration, anneal, deoxidization, storage of electronic products. Used in fields such as peak welding, circumfluence welding, crystal, piezoelectricity, electronic porcelain, electronic copper tape, battery, electronic alloy material, etc.

Features of Our Products
Full Automation
All systems are designed for unattended operation and automatic Nitrogen demand adjustment.
Low Electric Energy Consumption
All systems are designed for Energy-Efficient.
Lower Space Requirement and Short installation period
The design and Instrumentation makes the plant size very compact, assembly on skids, prefabricated and supplied from factory. Tongyue Machinery has own TRUE brand of gas separation equipments.
Installation is very easy and convenient.
Fast Start-Up
Start-up time is about 30 minutes to get desired Nitrogen purity. So these units can be switched ON & OFF as per Nitrogen
Demand changes.
High Reliability
Very reliable for continuous and steady operation with constant Nitrogen purity. Plant availability time is better than 98% always.
Molecular Sieves Life
Expected Molecular sieves life is more than 10-years i. e. Whole life time of Nitrogen plant. So no replacement costs.
Simple operation and maintenance
All systems are designed by integrated solution for easy-operation and easy-maintenance
