SMK 360 automatic double layers chewing gum packing machine,China SENIM price supplier

SMK 360 automatic double layers chewing gum packing machine

FOB Price:Price can be negotiated

Production Capacity:11 Set/Sets per Month unlimited

Payment Terms: US $54,000 - 90,000 / Set

Update Time:2022-10-08

Contact Supplier

Product Description

Gum.html" style="text-decoration:underline;font-weight:bold;" target='_blank'> Chewing Gum packing machine
Chewing gum packaging machine
Packing speed:100-120stick/min
Technical support
CE/CO/ISO

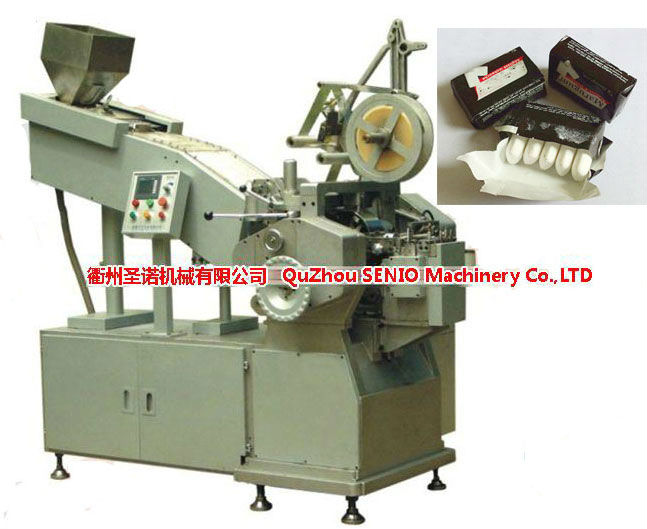

SMK 360 Chewing gum packing machine

SMK 360 chewing gum packing machine

Machine features

1: This machine includes the feeding part and packing part

2: The feeding machine align s the chiclets from the hopper into a line in the feeding tunnel by electromagnet vibrator And then send s these chiclets into the packing machine.

3: T akes these chiclets and packs 4-10 chiclets into a stick with one paper .

4: A dvantage : adopt dual-tunnel for feeding and packing, greatly high packing speed

. 5: Machine performance : steady and reliable under running.

6: A dopt excellent electric appliance , PLC control system, a frequency converter for infinite speed adjustment

7: photocell system and automatic compensating function with servo motor for accurate cutting of the outer paper,

8: O perator-machine interface for setting, amending and saving all parameters during running.

9: The protection covers are used in the mechanical driving parts.

Main Technical data :

Packaging speed	100 ~ 120sticks/min
Total power	3.5KW AC380V
Control system	PLC , Touch screen , frequency converter, Photocell, Mechatronics
Overall dimensions:	2400Lmm×1300Wmm×2200Hmm
Working condition:	Temperature: 18 ~ 21°C ; humidity: 45 ~ 55 %
Packing materials specification and requirements
Out paper reel	Max dia. : φ350 ; Width : 54-174m Installation Core dia. : 76mm

Electric Appliance:

Serial Number	Name	Model	Quantity	Brand
1	Controller	TWDLCAA40DRF	1	SCHNEIDER
2	Transducer	ATV31HU15N4A	1	SCHNEIDER
3	Temperature Module	TWDALM3LT	2	SCHNEIDER
4	Touch Screen	XBTGT1100	1	SCHNEIDER
5	Air Switch	OSMC32N3C32	1	SCHNEIDER
7	Relay Loop	RXL4A06B2BD	4	SCHNEIDER

CE certificate:

Condition:	New	Place of Origin:	Zhejiang China (Mainland)	Brand Name:	SENIM
Model Number:	SMK 360	Application:	gum	Voltage:	380v
Power(W):	3.5kw	Weight:	2500kg	Certification:	CE
Warranty:	1 year gurantee	After-sales Service Provided:	Engineers available to service machinery overseas	overall dimension:	240013002200mm
out paper reel:	Max dia: 350mm W54-174mm	installation core dia:	76mm	total power:	3.5kw AC 380V
packing spped:	100-120sticks/min	applicant:	gum,xylitol, candy
