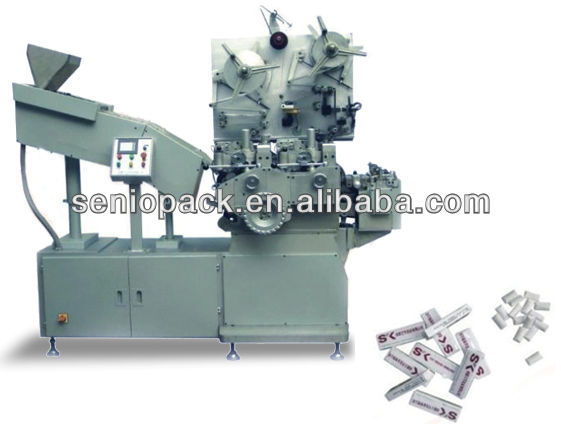

SMK360 Automatic Single/double Layers Chewing Gum Chiclets Stick Packer

FOB Price:Price can be negotiated

Production Capacity:1 Set/Sets per Month unlimited

Payment Terms: US $50,000 - 90,000 / Set

Update Time:2022-05-19

Contact Supplier

Product Description

Chiclets Stick Packer
1.Speed:100-120stick/min
2.Control system:PLC,Touch screen,frequency convert,Mechatronics
3.Automatic

Chiclets Stick Packager

Gum Chiclets Stick Packer" data-width="150" ori-width="343" ori-height="259" />

Best quality, most competive price

Heartful service, professional manufacture

SMK360 Automatic Single/double Layers Chewing Gum Chiclets Stick Packer

Features of Automatic Single/double Layers Chewing Gum Chiclets Stick Packer

Including the Feeding Machine and packing machine. The feeding machine will align the chiclets from the hopper into a line in the feeding tunnel by electromagnet vibrator and then send these chiclets into the packing machine.
The packing machine takes these chiclets and packs 4-10 chiclets into a stick with one paper.
The biggest advantage of this machine is that the dual-tunnel for feeding and package machine is adopted.
Thus the packing speed is improved greatly. The performance of this machine is steady and reliable under running.
This machine adopts excellent electric appliance, PLC control system, a frequency converter for infinite speed adjustment, photocell system and automatic compensating function with servo motor for accurate cutting of the outer paper, operator-machine interface for setting, amending and saving all parameters during running.
The protection covers are used in the mechanical driving parts. This machine is designed for massive production of chiclet sticks in the food industry.

Parameters of Automatic Single/double Layers Chewing Gum Chiclets Stick Packer

Packaging speed	100 ~ 120sticks/min
Total power	3.5KW AC380V
Control system	PLC , Touch screen , frequency converter, Photocell, Mechatronics.
Working condition:	Temperature: 18 ~ 21 °C; humidity: 45 ~ 55 %
Out paper reel	Max dia. :φ 350 ; Width : 54-174mm
Installation Core dia	76mm
Weight	2500KG
Overall dimensions	2400Lmm×1300Wmm×2200Hmm

Samples of Automatic Single/double Layers Chewing Gum Chiclets Stick Packer

Installation of Automatic Single/double Layers Chewing Gum Chiclets Stick Packer

The Seller will send 1 technician to the Buyer’s site for installation and adjustment, training etc. But the Buyer shall cover the visa cost, international round trip ticket, local traffic, accommodation and meal of this technician . Besides the above cost, the buyer shall pay USD80.00/MAN*DAY to the technician as his remuneration.

Guaranty of Automatic Single/double Layers Chewing Gum Chiclets Stick Packer

The Quality Guaranty period is within 12 months from the date of acceptance.

During the quality guaranty period, if a technician from the Seller is required to be sent to the Buyer’s site for repairing the machines, the Buyer shall also cover the expenses of visa cost, international round trip ticket, local traffic, accommodation and meal of this technician, besides, the Buyer shall also need to pay USD80.00/day as the remuneration of this technician.

Our certificate of Automatic Single/double Layers Chewing Gum Chiclets Stick Packer

If you were interested in our machine, would you mind to answering me some questions?

1. the shape of your products

2. the size of your products

3. the packing styles

4. other special demands

Your feedback is very important to us,

and we will give you the suitable machine as your information!

Thanks for your inqury and welcome to our factory

Condition:	New	Place of Origin:	Zhejiang China (Mainland)	Brand Name:	SENIM
Model Number:	SMK 360	Application:	gum	Voltage:	380v
Power(W):	3.5kw	Weight:	2500kg	Dimension(LWH):	2400mm/1300mm/2200mm
Certification:	CE	Warranty:	1 year guarantee	After-sales Service Provided:	Engineers available to service machinery overseas
Overall dimension:	240013002200mm	Out paper reel:	Max dia: 350mm W54-174mm	Installation core dia:	76mm
Total power:	3.5kw AC 380V	Packing spped:	100-120sticks/min	Applicant:	gum,xylitol, candy
Type:	SMK 360	Control:	PLC, Touch screen, frequency converter, Photocell, Mechatronics.
