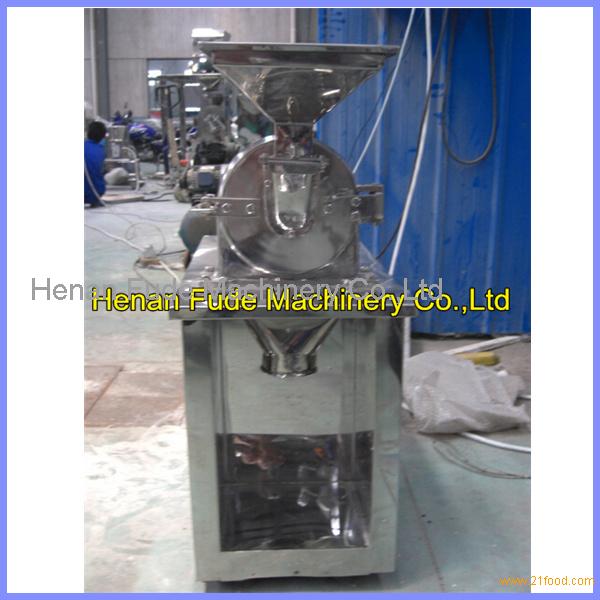

Grinding machine inside adopts high-speed rotary grinding wheel cutter,this grinding machine inside is with large air volume, not easy to get heating.It has advantage of stable running,easy disassembly and cleaning, low noise, good effect for the smash. The machine made by SUS304.
Applied :
sugar, salt, rice, corn, oats, wheat, beans, chickpeas,peas,lentils ,cocoa powder, coffee beans,dehydrated vegetables, chinese medicine, herbal flavors, fragrance, etc.
Working process:
1. Put raw material into the hopper, then leaks into the crashing cabin.
2. The relative motion between the activities and fixed gear tooth plate, make the material crushed into powder by the tooth impact and friction.
3.The ground powder will leaks from the screen stencil, gets out from the discharge hole.
Specification :
| Model
|
FD20
|
FD30
|
FD40
|
| Capacity
|
20-250kg/h
|
30-300kg/h
|
40-800kg/h
|
| Spindle speed
|
4500r/min
|
3800r/min
|
3400r/min
|
| Feeding material
|
6mm
|
10mm
|
12mm
|
| Crushing fineness
|
12-120m
|
12-120m
|
12-120m
|
| Power
|
4kw
|
5.5kw
|
11kw
|
| Weight
|
250kg
|
320kg
|
550kg
|
| Dimension
|
550*600*1250mm
|
500*700*1450mm
|
800*900*1550mm
|
|
|
|
|
HENAN FUDE MACHINERY CO.,LTD located in Luoyang, Henan province, is a high-tech company specialized in beans processing fields, such as soybean
milk machine, corn milk machine, bean sprouts machine, peanut butter
processing line, broad beans peeling machine, etc. And other small and
medium food processing machines. With high quality, good after-sales service, and best price.
Our machines have been exported to many countries, like America, Canada,
Australia, Brazil, Latvia, India , Kenya, Uganda, Zimbabwe, etc. With
good feedback from customers.
