1.low feed hopper
2. no dust flying
3. CE and ISO approved
4. spice pulverizer system with water cooling system
Main Application:
Spice Pulverizer System With Water Cooling System is applied for such trades as pharmaceutical, foodstuff, chemical and so on. which is specially used for crush for crushing materials with much fiber or grease.
Working principle:

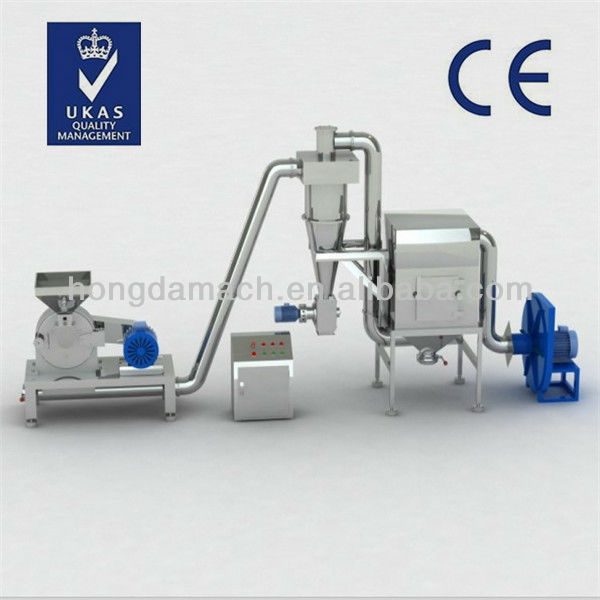

This machine is made up of crusher, cyclone separator, pulse dust-collecting box etc., Material come into the chamber through the hopper, and crushed by high speed rotating hammers, crushed size can be adjust by screen. The crushed material flows into the cyclone separator by the induced fan and rotating centrifugal force, then being discharged through gate blower,dust come into the pulse dust-collecting box, filtrated and recycled by the filter cylinder. Designed by the standard of "GMP", the whole machine is made of stainless steel, and there is no dust during the process of production.
Technical Parameters :
Model | Production Capacity | Feeding Size | Crushing Fineness | Crushing motor | Dust collecting motor | Discharge motor | overall dimension | weight |
---|---|---|---|---|---|---|---|---|
GF-250 | 50-150kg/h | ≤6mm | 60-200mesh | 5.5kw | 2.2kw | 0.75kw | 3000*880*2150mm | 550kg |
GF-350 | 80-500kg/h | ≤6mm | 60-200mesh | 11kw | 4kw | 0.75kw | 3500*880*2150mm | 880kg |
GF-450 | 100-600kg/h | ≤10mm | 60-200mesh | 22kw | 5.5kw | 0.75kw | 4500*880*2250mm | 1500kg |
GF-650 | 150-1200kg/h | ≤12mm | 60-200mesh | 37kw | 11kw | 1.5kw | 6580*1100*2380mm | 2000kg |
GF-850 | 200-2000kg/h | ≤15mm | 60-200mesh | 55kw | 15kw | 1.5kw | 7800*1100*2380mm | 2800kg |
Product Line Name | Production Line Capacity | Actual Units Produced(Previous Year) |
---|---|---|
Grain Processing Machinery, Chemical Machinery & Equipment | Crusher 20 Sets / Month, Mixer 20 Sets / Month, Conveyor 10 Sets / Month, Screening Machine 15 Sets / Month, Granulator 15 Sets / Month, Dryer 10 Sets / Month | confidential |
Market | Revenue(Previous Year) | Total Revenue (%) |
---|---|---|
South America | USD 38,000 | 1.0 |
Eastern Europe | USD 38,000 | 1.0 |
Southeast Asia | USD 950,000 | 25.0 |
Africa | USD 38,000 | 1.0 |
Oceania | USD 76,000 | 2.0 |
Domestic Market | USD 2,660,000 | 70.0 |
Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used | Condition |
---|---|---|---|---|
CNC Lathe | CAK50135 | 1 | 4.0 | Acceptable |
Lathe | CA6140 | 7 | 9.0 | Acceptable |
Milling Machine | X6142A | 1 | 4.0 | Acceptable |
Drilling Machine | Z3050X16/1 | 1 | 4.0 | Acceptable |
CNC Cutting Machine | GS | 1 | 4.0 | Acceptable |
Bending Machine | QC11Y | 2 | 9.0 | Acceptable |
Shearing Machine | Yawei | 1 | 9.0 | Acceptable |
Welding Machine | WS-408 | 9 | 9.0 | Acceptable |
Sawing Machine | G7022 | 1 | 9.0 | Acceptable |
Planning Machine | B6066 | 4 | 9.0 | Acceptable |
Products Name | MOQ(in the last 12month) |
---|---|
Confidential | confidential |
Products Name | Order(in the last 12month) |
---|---|
Confidential | confidential |
Products Name | Order(in the last 12month) | Shortest Lead Time |
---|---|---|
Confidential | confidential | confidential |
Certified Picture | Certification Name | Certified By | Certificate No. | Product Name & Model No. | Available Date --- Expired Date |
---|---|---|---|---|---|
ISO 9001:2008 | DAS, UKAS | Q18130857 | Scope: Design, Manufacture and Service of the Equipments of Pulverizer, Sifter Machinery, Blend Machinery, Granulator (Pharmacy, Chemistry, Food) | 2013/08/12 --- 2016/08/11 | |
CE | STS | STS/2007/04010 | Crusher & 30B | 2007/10/19 --- 2049/12/31 | |
CE | STS | STS/2007/03010 | Mixer & CW-500 | 2007/10/19 --- 2049/12/31 | |
CE | UTS | 010117-1154/CN | Mixer & EYH-50, EYH-100, etc. | 2010/04/09 --- 2049/12/31 | |
CE | UTS | 010116-1154/CN | Cyclone-separeting Pulse Dust Collecting Crushing Set & EYH-50, EYH-100, etc. | 2010/04/09 --- 2049/12/31 |
Condition: |
New
|
Place of Origin: |
Jiangsu China (Mainland)
|
Brand Name: |
Hongda
|
Model Number: |
GF-450
|
Type: |
Cutter
|
Voltage: |
380V
|
Power(W): |
33.75kw
|
Certification: |
CE, ISO
|
Warranty: |
1 year
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
material: |
SUS304
|
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
