Stable low temperature micro powder grinding machine,China Allance price supplier

Stable low temperature micro powder grinding machine

FOB Price:Price can be negotiated

Production Capacity:100 Set/Sets per Month Micro Powder Gr

Payment Terms: US $5,000 - 30,000 / Set

Update Time:2014-09-20

Contact Supplier

Product Description

Micro Powder Grinding Machine
1.Micro powder grinding machine
2.Finess:30-150mesh
3.Stainless steel
4.Low temperature grind

Zhengzhou Allance Micro Powder Grinding Machine

Application of Micro Powder Grinding Machine

Mainly used in pharmaceutical, chemical, food (example: ginger, chili, pepper, oil, wheat, soy, star anise, cinnamon, dried vegetables, grain) and other low hardness Material crushing process, fineness adjusted between 30-150 mesh, with high yield, fine grain size, low noise, low energy consumption, easy maintenance, easy installation, etc., especially for oily, viscous, heat-sensitive, low hardness and other fibrous materials crushing process.

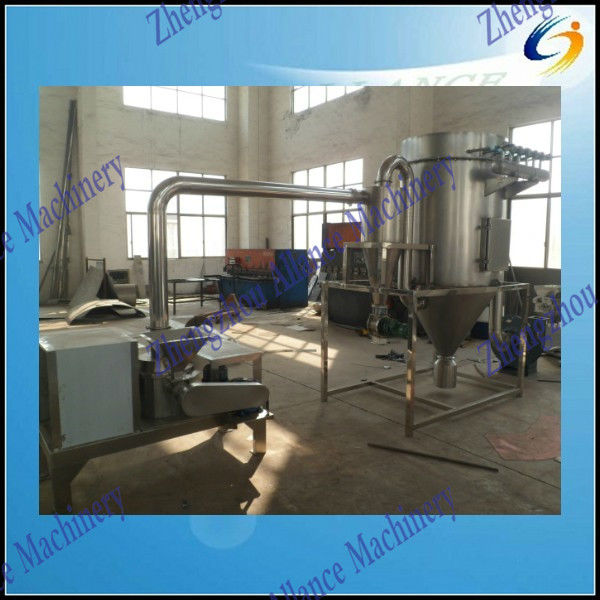

Structure and working principle of Micro Powder Grinding Machine

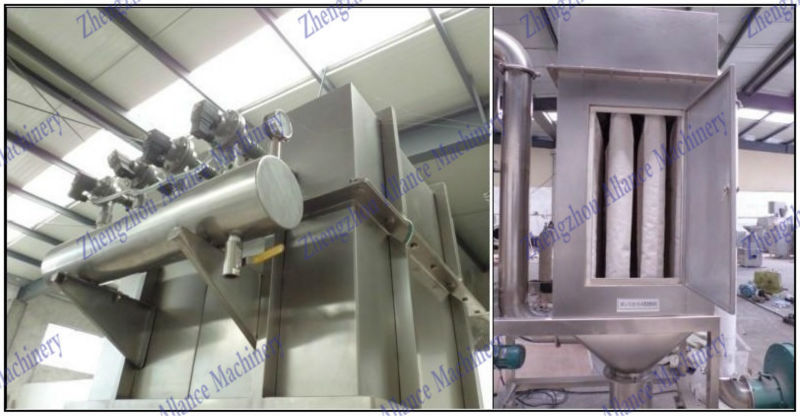

1, the structure: It includes cruhser, cyclone, dust-colletcor system, air blower, control cabinet.

2, Working principle:
Not only can the wind power electrical conduit a negative pressure, so that the required powder is automatically wind suction pipe, and the enormous amount of air has been taken away the heat generated by crushing cavity, while a pipe mill group play a strong cleaning effect. Cyclone collector spout fitted with fan off, no dust powder outlet, reaching clean, environmentally friendly, saving effect.

Features of Micro Powder Grinding Machine

1, Strong crushing ability, low energy consumption, product fineness relatively small.
2, large crushing chamber, turbo pressure generated during operation of high-strength, not only to increase production capacity and reduce the over-crush phenomenon, and can effectively avoid the material produced in the grinding process on the screen deposition and clogging. You can also maximize strength and pressure to take away the heat generated by crushing cavity.
3, due to enhanced shear, and therefore for the fibrous material and the grinding capacity equipment than the average high.
4, screen installation convenient, reliable positioning, are used plug-in. Will ring sieves with respect to the form of life a lot higher.

Main technical specification of Micro Powder Grinding Machine

Model	ALCO-15	ALCO-20	ALCO-30	ALCO-60
Material	304 stainless steel	304 stainless steel	304 stainless steel	304 stainless steel
Fineness(mesh)	80-400	80-400	80-400	80-400
Capacity(kg/h)	30-200	50-300	80-500	150-1000
Voltage(V)	380	380	380	380
Power(KW)	13.5	17.5	46	84
Main speed(r/min)	6000	4800	3800	2800
Overall dimensions(cm)	420120270	470125290	664130396	750230453
Weight(kg)	980	1300	1500	3200

Micro Powder Grinding Machine

Application of Micro Powder Grinding Machine

Condition:	New	Type:	Spice Machine	Automatic Grade:	Automatic
Production Capacity:	99%	Place of Origin:	China (Mainland)	Brand Name:	Allance
Model Number:	15	Voltage:	380V	Power(W):	13.5KW
Dimension(LWH):	420012002700	Weight:	1T	Certification:	CE
Warranty:	1 year	After-sales Service Provided:	Engineers available to service machinery overseas	Name:	Micro Powder Grinding Machine
Application:	grains,spice,herb,salt,sugar,pepper,walnut,cocoa bean,seed,etc	Material:	stainless steel 304	Fineness:	30-150mesh
Capaicty:	20-800kg/h	Feeding size:	6-12mm	Rotating speed:	6000R/min
Feature:	with dust collector	Key words:	Micro Powder Grinding Machine
