stretch film wrapping machine,China JIALIN price supplier

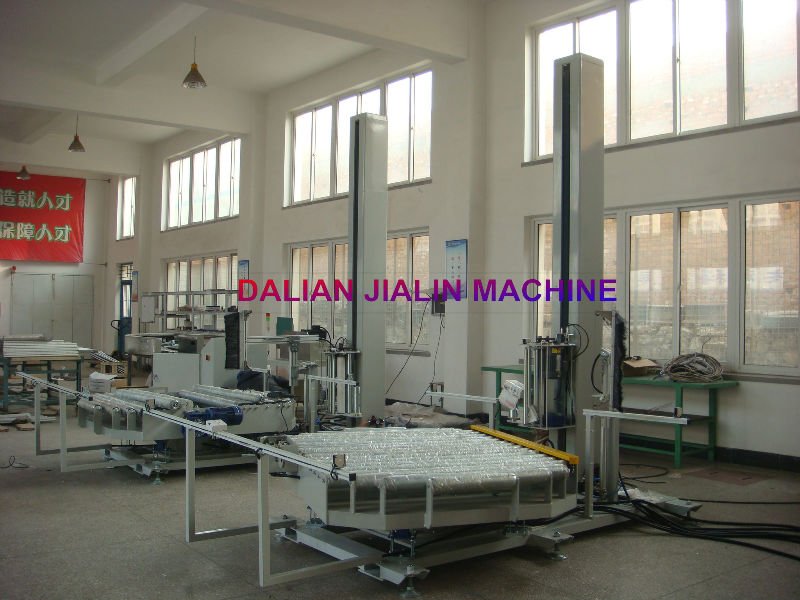

Stretch film wrapping machine

Product name: Stretch Wrapping Machine

1. Max. package height :2100 mm(including pallet height)

2. Table height :650 mm

3. Turntable Load capacity :2000 kgf

4. Turntable speed: 0-13 r/min (adjustable)

5. Turntable diameter:φ1500

6. Air supply: 5-6.5kg/cm ²

7. Film size :  ID : 76, OD : max 350

8. Automatic clumping and cutting system

9. Turntable : motor driving system with heavy duty bearing

10. Pre-stretch system : 250%

11 Power: 380V, 3 phase,50Hz

12 Film frame vertical speed :03.5m/min

13. Others:

Control mode: PLC + Transducer + Touch screen+ standard control button + signal switch, self-service/self-motion/manual control three control pattern

Packing circles of superstratum and under layer are separately controlled by their own counter.

Mid-strengthen-function design, any parts can be strengthened

Double deck packing pattern, free design the film overlapping degree upon the different packing requirements.

Pre-stretch motor film frame design, gear box system and transducer control the tension together, greatly save the packing material, make better packing effect.

Auto photoelectricity measure height & turn table location.

Turntable speed &film frame vertical speed are controlled by transducer, stepless speed changing.

Set drive roller conveyor on turn table.
