cocoa bean machine
1.simple,sturdy,stable operation,
2.Grinding material quickly,even
3.Stainless steel making
4.CE andISO
Summer sales powder chocolate/cocoa powder chocolate/powder machine
Main application of cocoa bean machine:
1.cocoa bean machine for variety of food: sesame seeds, walnuts, rice, black rice, soybeans, mung beans, peanuts, seeds, corn, sorghum, barley, buckwheat, oats, etc.
2.cocoa bean machine for kinds of dry herbs: almonds, Poria, dates, Gorgon, Wolfberry , barley, hawthorn, Chinese yam, Radix, red beans, gelatin, frankincense, dodder seed, angelica, Codonopsis, Astragalus.
3,cocoa bean machine for various chemical raw materials: coal, gypsum, salt, acids. 4 spices: pepper, star anise, cinnamon, Huai incense.
Advantages of cocoa bean machine:
1.cocoa bean machine structure is simple and strong, stable running, crushing the material fast, uniform, effect is good.
2.cocoa bean machine is all stainless steel materials, (crushing slot) within the case all tooth surface precision machining so as to achieve smooth, easy to clean.
3.cocoa bean machine change the ordinary grinder wall roughness, easy, difficult to clean up the phenomenon of accumulated powder, the production of food, medicine, chemical industry and so on can meet the national standards, meet GMP requirement.
Working principle of cocoa bean machine :
1.Working prin ciple of the high quality stainless steel, 304 national standard motor, mainly used in chemical materials, Chinese herbal medicine containing the roots, branches and block class materials, all kinds of food, grain oil content is not high, and other hard and brittle materials .
2.The cocoa bean machine using the disk activity and fixed means of relatively high-speed operation, make the shattered by the gear disk impact, friction and collision among the materials themselves and crushed. Material can be directly from the eduction in the grinding cavity, the discharging mouth, the general material after crushed through cotton bags to collect, shredded material collected in the bag, air from a bag of tiny hole to come out, will not be fine powder, thereby no waste, no pollution effect. By changing sieve in different mesh size.
Technical Parameters of cocoa bean machine:
MODEL |
CAPACITY (kg/h) |
FINENESS ( MESH ) |
VOLTAGE (v) |
POWER (kw) |
Rotate speed |
dimentions (mm) |
weight (kg) |
FR -180 |
30-120 |
10-120 |
220/380 |
2.2 |
4200 |
480*520*1040 |
80 |
FR -250 |
60-200 |
10-120 |
380 |
5.5 |
4200 |
750*600*1260 |
180 |
FR -320 |
80-300 |
10-120 |
380 |
7.5 |
4200 |
780 *700*1350 |
260 |
FR -350 |
100-500 |
10-120 |
380 |
11 |
4200 |
800 *900*1550 |
320 |
FR -450 |
500-1000 |
10-120 |
380 |
15/22 |
4200 |
1200*1000*2000 |
520 |

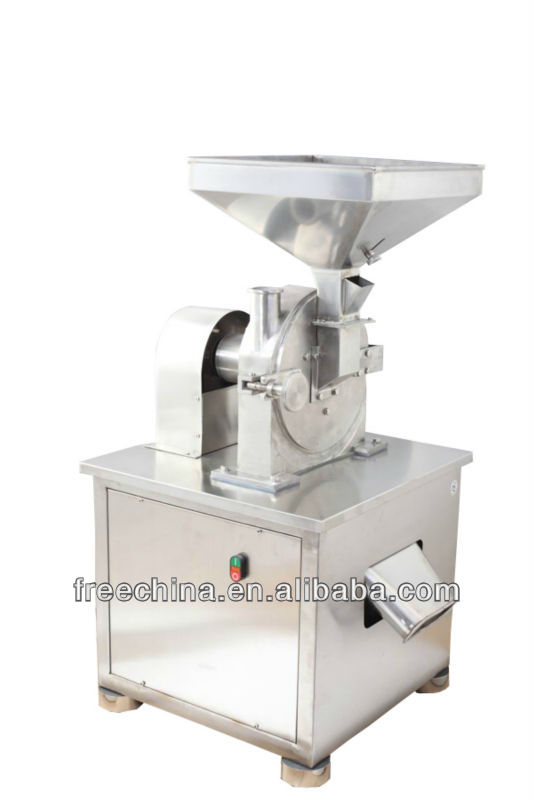

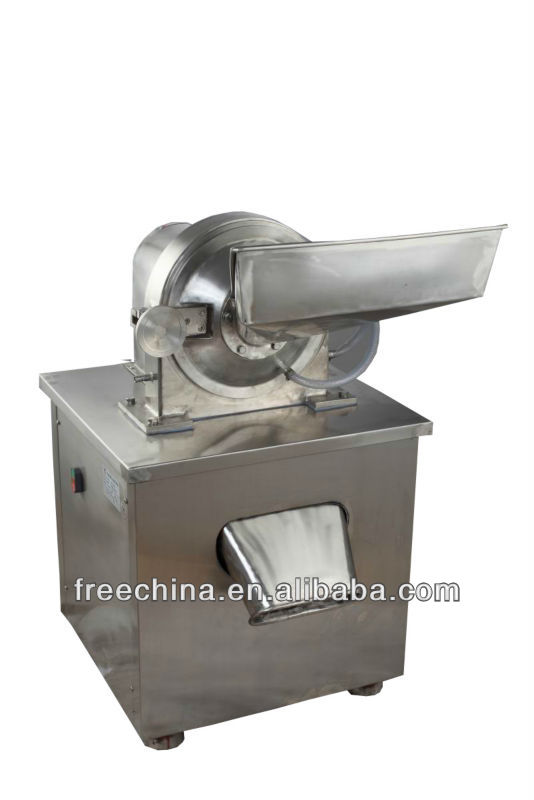

Product show:

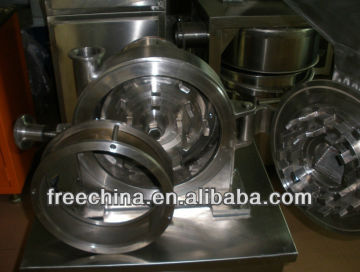

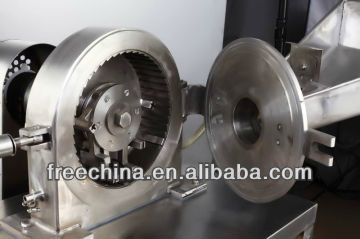

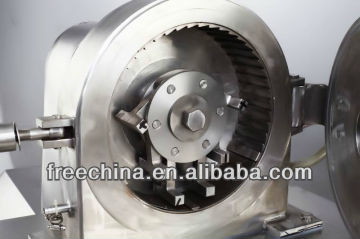

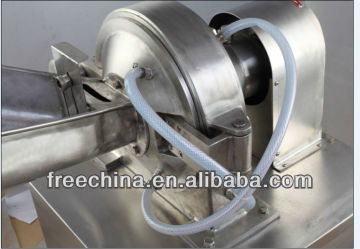

Detail drawing:
Raw material:
DON'T HESTATION! PLS SEND YOUR INQUIRY TO US.
HIGH QUALITY PRODUCTS!
COMPETITIVE PRICE
BEST SERVICE
WAITING FOR YOU!
Place of Origin: |
Henan China (Mainland)
|
Brand Name: |
Furui cocoa bean machine
|
Model Number: |
FR-180 cocoa bean machine
|
Type: |
Grain Processing Equipment
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
Material:: |
ss 304
|
Capacity:: |
30-120 kg/h
|
Fineness:: |
10-200 meshes
|
Voltage:: |
220v/380v
|
Power:: |
2.2 kw
|
Speed:: |
4200 r/min
|
Weight:: |
80 kg
|
Dimension:: |
480*520*1040 mm
|
Name:: |
cocoa bean machine
|
Operation:: |
easy for cocoa bean machine
|
