Rotary screen:
1.Sieve layers:1-5
2.Screen to 2-500 mesh
3.Screen any powder,granule,filter liquid
4.Main for food,chemical

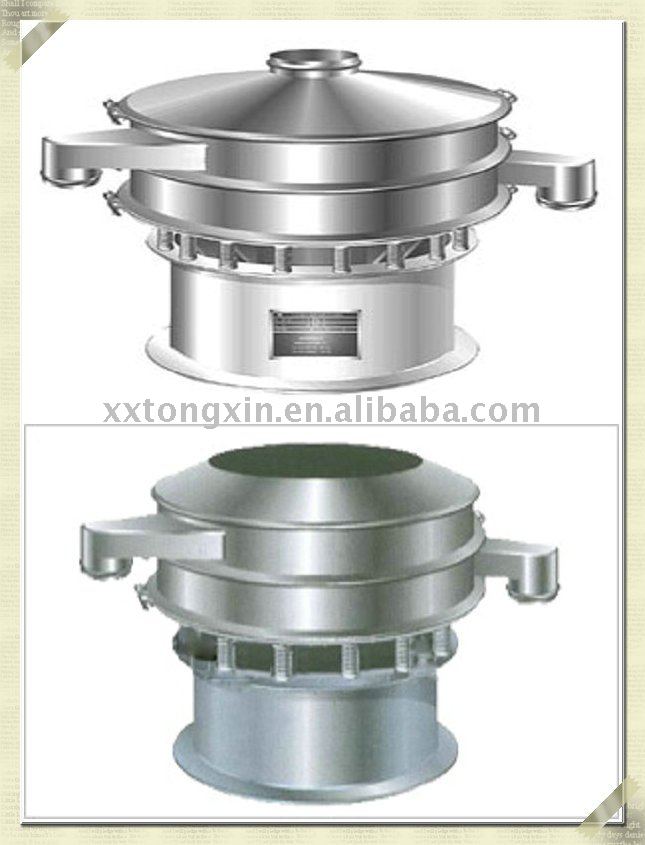

Three-D rotary vibration sieve/screen
-----Functions
1)Screening out the impurity
2)Grading and screening according to the granule size.
3)Filtering out the solid from the mixture of solid and liquid.
-----Features
1)Any mucus can be screened.
2)The aperture do not block, can be screened up to 500 mesh, or 0.028mm
3)Changing sieve just need 3-5 minutes.

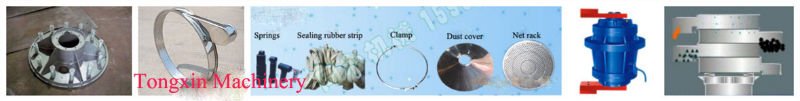

-----Structures
----Industry
1) Chemical: resin pigment, medicine, grease, paint, palette, etc.
2) Abrasive material and ceramic:building sand, mica, alumina, abrasive, refractory material, slurry, etc.
3) Food: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.
4) Metallurgy and mining: quartz sand, ore, titanium oxide, zinc oxide, etc.
5) Mechanical: casting sand, powder metallurgy and metal powder, etc.
----Parameters
|
600 |
800 |
1000 |
1200 |
1500 |
1800 |
||||
Effective diameter of screen surface(mm) |
φ540 |
φ730 |
φ900 |
φ1100 |
φ1400 |
φ1700 |
||||
Effective screening Area |
0.2281 |
0.4183 |
0.6359 |
0.9499 |
1.5386 |
2.2687 |
||||
Screen Size |
2 - 500 mesh |
|||||||||
Layers |
1-5 |
1-5 |
1-5 |
1-5 |
1-5 |
1-3 |
||||
Power (KW) |
Vibration Motor |
0.55 |
0.75 |
1.1 |
1.5 |
2.2 |
3.0 |
Place of Origin: |
Henan China (Mainland)
|
Brand Name: |
Tongxin
|
Model Number: |
XZS
|
Type: |
grain Processing Equipment"> Grain Processing Equipment
|
Screen Material: |
Carbon Steel/Stainless steel
|
Sieves: |
1-5layers
|
Diameter: |
600/800/1000/1200/1500mm
|
Packing: |
Wooden case
|
Power: |
0.25/0.55/0.75/1.1Kw etc
|
Application: |
Powder, granule, liquid
|
Functions: |
Screening,filtering
|
